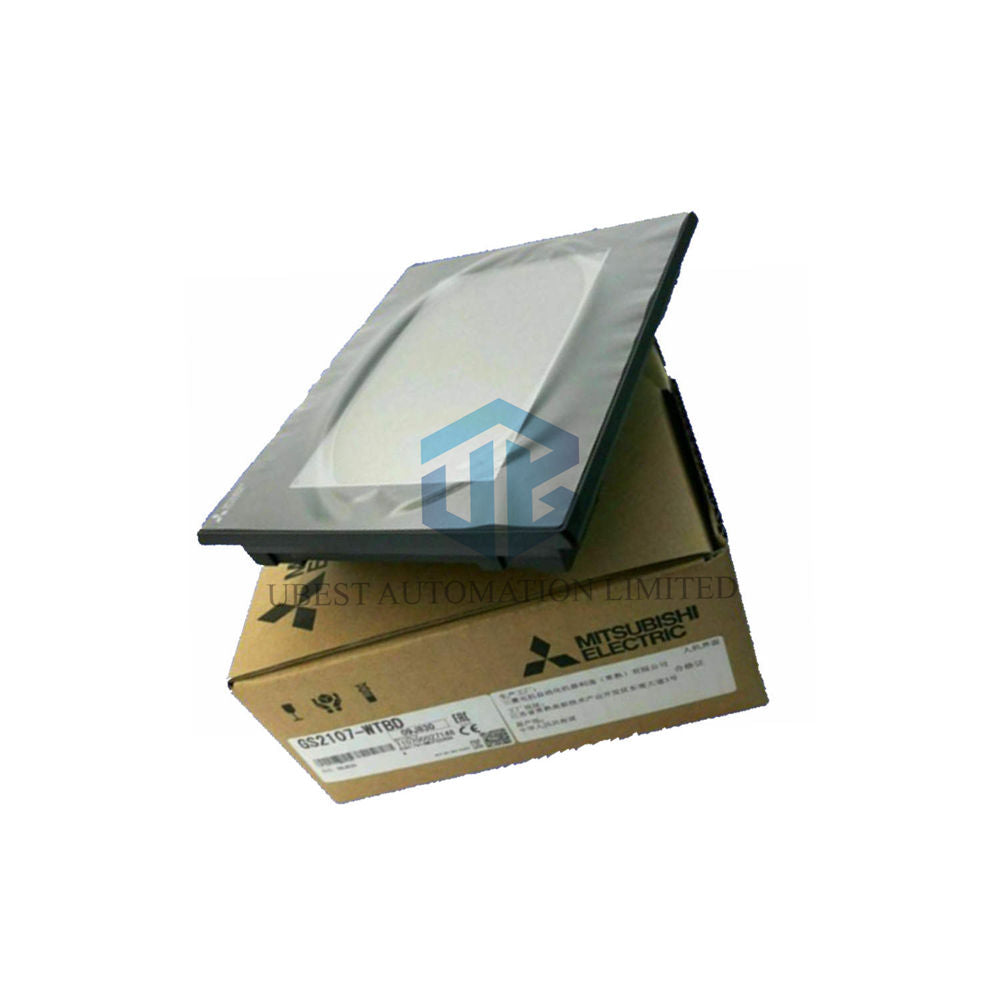

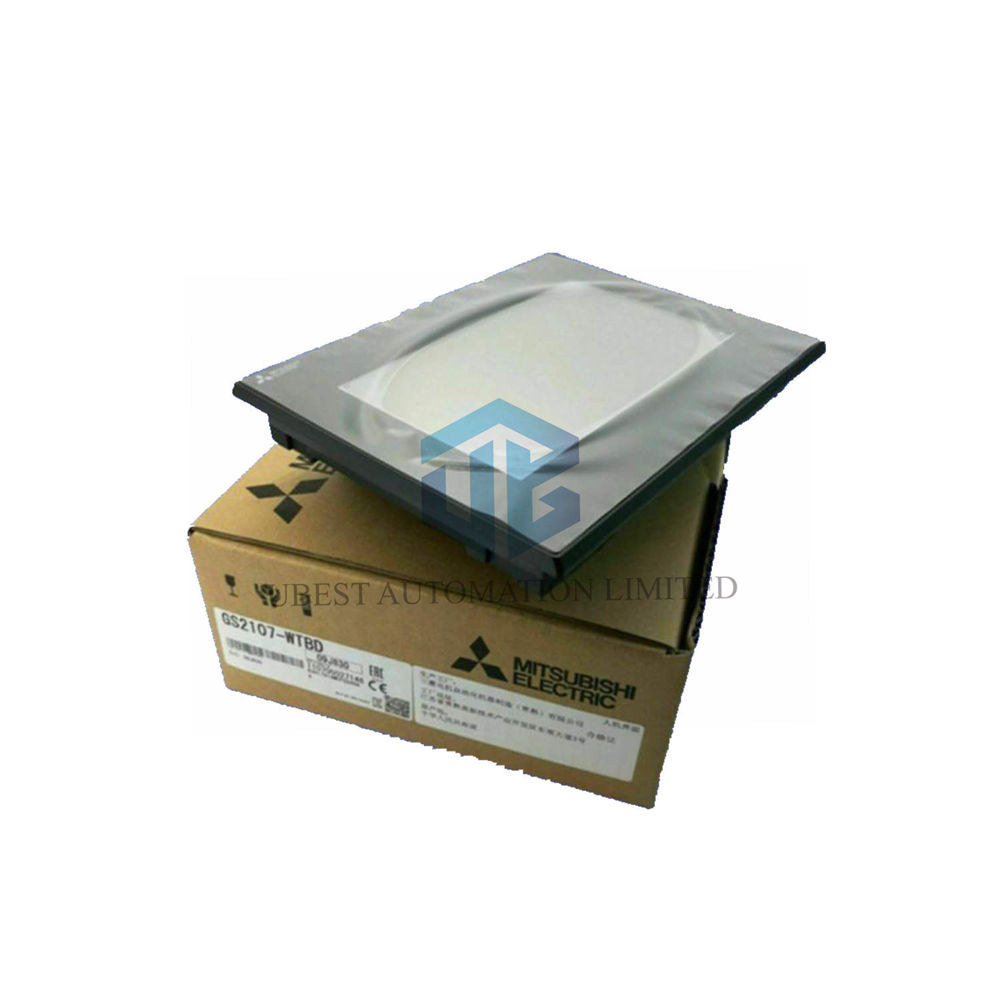

GS2107-WTBD | Mitsubishi GOT2000 Series Graphic Operation Terminal

Core Technical Specifications

• Manufacturer: Mitsubishi Electric
• Model: GS2107-WTBD
• Product Series: GS21 Series (GOT Simple)
• Display: 7-inch TFT color LCD, 800 x 480 pixels (WVGA)
• Display Colors: 65,536 colors for rich visualization
• Touch Panel: Analog resistive film – precise and durable
• Supply Voltage: 24 VDC
• Power Consumption: 6.5 W (efficient operation)
• Memory: 9 MB ROM for project data and operating system
• Protection Rating: Front panel IP67 – dust-tight and water-resistant
• Dimensions (W x H x D): 206 x 155 x 50 mm
• Weight: 0.68 kg (1.50 lbs) excluding mounting brackets

Frequently Asked Questions (FAQ)

• Q: Can I connect this HMI directly to a Mitsubishi PLC?
  A: Yes, the GS2107-WTBD supports RS-422, RS-232, and Ethernet, allowing direct connection to Mitsubishi FX, L, Q, and iQ-R series controllers.
• Q: Is the backlight replaceable?
  A: The LED backlight is not user-replaceable, but it offers a long operational life suitable for most industrial applications.
• Q: What software do I need to program this HMI?
  A: Use Mitsubishi GT Works3 or GOT2000 configuration software for screen design, tag assignment, and project transfer.
• Q: Does the unit support data logging?
  A: Yes, via the SD card slot, you can log production data, alarms, and trends directly to removable media.
• Q: What is the difference between GS21 and other GOT2000 series?
  A: The GS21 series provides a cost-effective, simplified HMI while retaining core features like Ethernet, USB, and high-resolution display.
