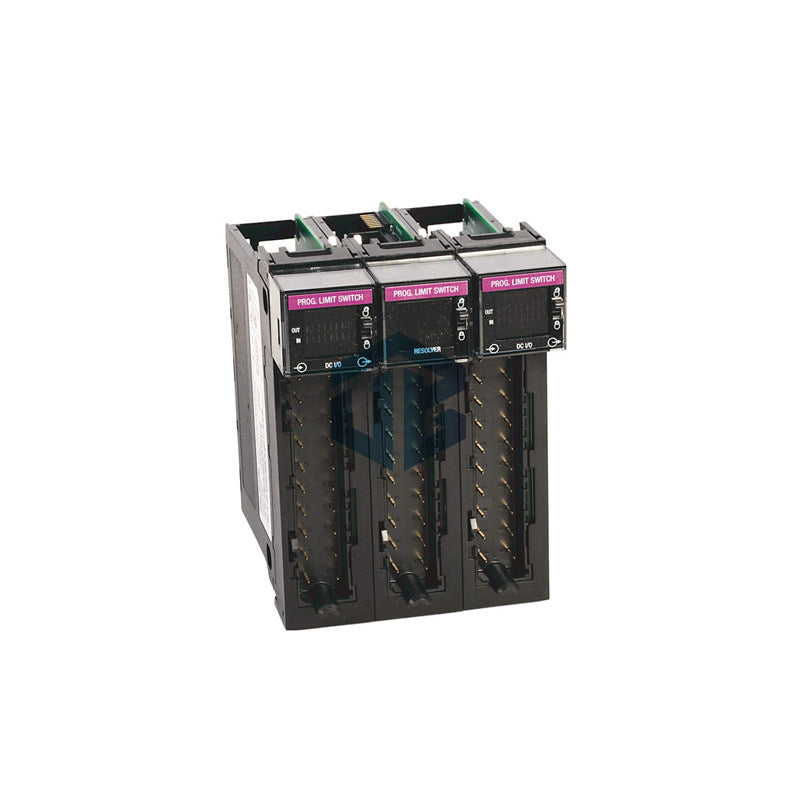

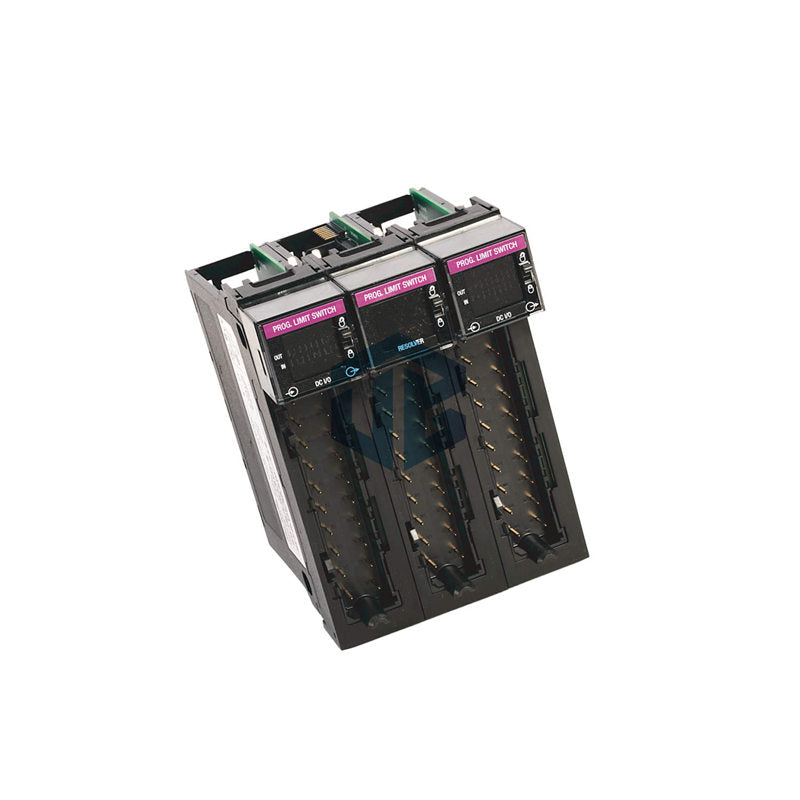

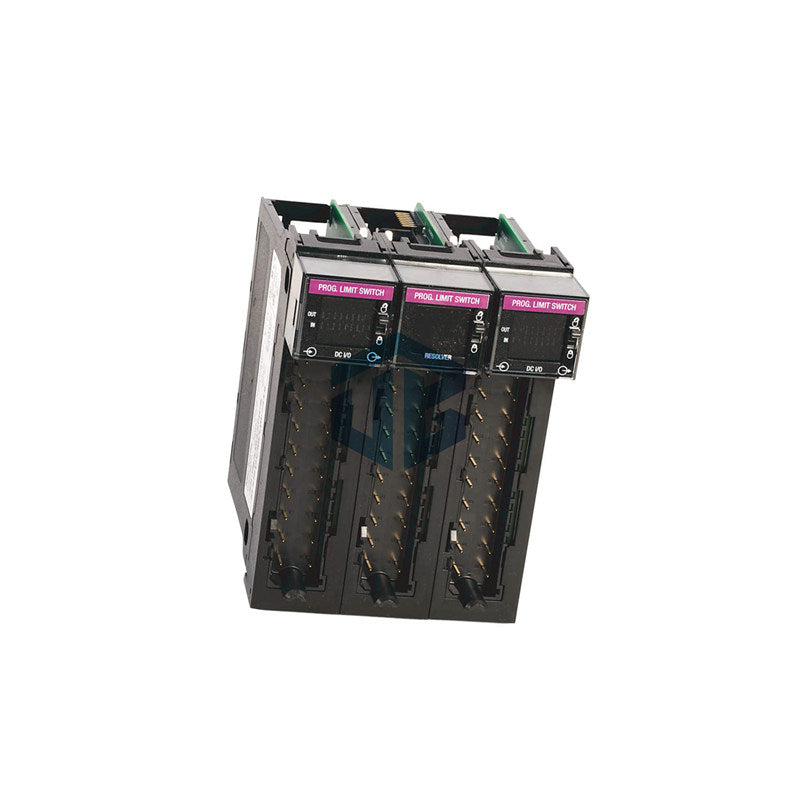

Allen-Bradley 1756-PLS ControlLogix - Limit Switch Module
Manufacturer:
Allen-Bradley
Product No.:
1756-PLS
Condition:
In Stock
Product Type:
Limit Switch Module
Product Origin:
USA
Weight:
500g
Shipping port:
Xiamen
Warranty:
12 months
UBEST – Etibarlı Qlobal Avtomatlaşdırma Hissələri Təchizatçısı
Səhmimizdə olan geniş çeşiddə sənaye avtomatlaşdırma ehtiyat hissələri təklif edirik. Bütün məhsullar 12 aylıq zəmanətlə və keyfiyyət problemləri üçün 30 günlük geri ödəniş ilə gəlir.
Allen-Bradley 1756-PLS Programmable Limit Switch Module
Smart machine control made simple. The 1756-PLS module monitors machine positions and controls limits automatically. With 16 inputs and 16 outputs, it handles complex industrial applications. Perfect for precise motion control systems.
Key Features
- 16 digital inputs: 10-31.2V DC operation
- 16 digital outputs: 1A per output capacity
- Flexible mounting: Uses 3 chassis slots
- Easy wiring: Removable terminal blocks
- Reliable performance: Industrial temperature range
Technical Specifications
- Brand: Allen-Bradley / Rockwell Automation
- Model: 1756-PLS (Full catalog number: 1756-PLS)
- Module Type: Programmable Limit Switch
- Input Channels: 16 single-ended
- Output Channels: 16 discrete
- Input Voltage: 10-31.2V DC
- Output Current: 1A maximum per output
- Backplane Current: 1000mA at 5V, 125mA at 24V
- Power Dissipation: 25.7W at 30°C, 21.3W at 60°C
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -45°C to 60°C (-49°F to 140°F)
- Humidity: 0-95% non-condensing
- Dimensions: 5.51" x 4.41" x 5.71"
Installation Guide
- Install in 3 contiguous slots in ControlLogix chassis
- Use 1756-TBSH or 1756-TBNH terminal blocks
- Connect field wiring to removable terminal blocks
- Ensure proper power supply connections
- Follow all safety procedures during installation
Compatibility Information
- Works with ControlLogix chassis
- Compatible with Allen-Bradley resolvers
- Uses standard 1756 terminal blocks
- Integrates with ControlLogix control systems
Package Contents
- 1756-PLS Programmable Limit Switch Module
- Installation documentation
- Configuration guide
