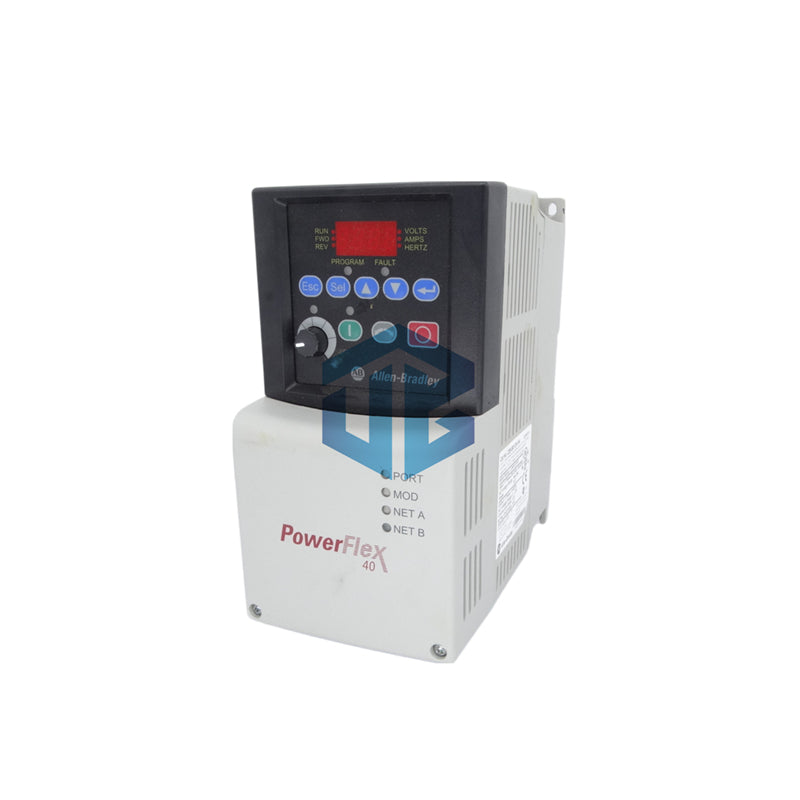

Allen-Bradley 22D-E4P2N104 PowerFlex Drive - Heavy-Duty Motor Commander

Powerful Motor Control

• 3HP/2.2kW industrial strength
• Handles 150% overload for 1 minute
• Dual-mode sensorless vector & V/Hz control

Technical Specifications

• Brand: Allen-Bradley/Rockwell
• Model: 22D-E4P2N104 (PowerFlex 40P)
• Input: 3-phase 414-660V AC
• Output: 4.2A @ 0-600V AC
• Protection: Class 10 i²t motor overload
• Carrier Frequency: 2-16KHz adjustable
• I/O: 5 digital + 2 analog inputs
• Communication: Built-in RS-485

Compare Similar Models

• 22D-D4P0H204 - 2HP 480V model
• 22D-D4P0N104 - Compact 2HP version

Industrial Protection

• Automatic overvoltage shutdown @ 1005V DC
• Removable MOV for surge protection
• Withstands -40°F to 185°F storage

Smart Features

• ±1% speed accuracy (80:1 range)
• Programmable carrier frequency
• Integrated DC brake transistor

Warranty & Shipping

• 12-month performance warranty
• Global delivery: FedEx, UPS, DHL
• Includes: Drive, HIM module, documentation

Expert FAQs

• Q: What's the difference between 22D-E4P2N104 and 22D-D4P0H204?
  A: This model has higher voltage (600V vs 480V) and power (3HP vs 2HP)
• Q: Can it handle sudden load changes?
  A: Yes - 200% overload capacity for 3 seconds
• Q: Is the keypad included?
  A: Yes - comes with display/HIM module
• Q: What communication protocols?
  A: RS-485 (Modbus RTU compatible)
• Q: Mounting options?
  A: Panel or flange mount (IP20)
