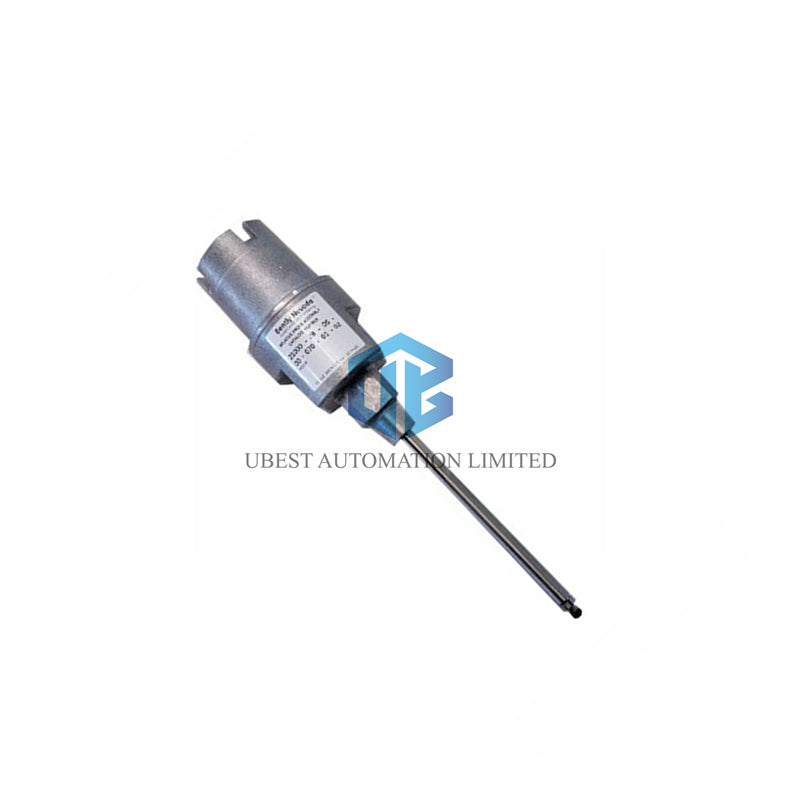

Bently Nevada Compact Probe Housing with Deep Penetration

Discover the versatile 21000-16-05-15-114-03-02 featuring 11.4-inch penetration with compact 0.5-meter cable. This professional housing assembly combines deep reach with space-saving design. The 21000-16-05-15-114-03-02 delivers optimal performance in confined spaces requiring significant probe extension. Perfect for installations with limited cable routing space.

Compact Design Features

• Probe Penetration: 11.4 inches deep capability
• Cable Length: 0.5 meter (20 inches) compact
• Standoff Adapter: 1.5 inches (38 mm) included
• Total System Length: 13.5 inches maximum
• Probe Visibility: Not visible after installation
• Probe Type: 3300 XL 8mm industrial sensor

Installation Requirements

• Sleeve Support: Required for 11.4-inch penetration
• Resonance Prevention: Critical for stable operation
• Penetration Adjustment: 13 mm (±0.5 inch) range
• Counter Boring: Recommended for 1.0-2.0 inch depths
• Mounting Thread: 3/4-14 NPT standard
• System Weight: 1.1 kg without fittings

Construction Details

• Housing Material: Aluminum durable construction
• Sleeve Material: 304 stainless steel corrosion-resistant
• Sealing System: Multiple O-rings for protection
• Cover Design: Screw-in dome for maintenance
• Identification: Flag labels for hidden probes
• Thread Protection: Quality seal included

Complete Fittings Package

• 3/4-14 NPT plug for port sealing
• 3/4-14 to 1/2-14 NPT reducer
• Universal cable seal grip system
• Three size grommets for cable management
• 1/8 to 3/16 inch cable accommodation
• 1/4 to 5/16 inch cable compatibility
• 5/16 to 3/8 inch cable support

Safety Certifications

• CSA Certified: Explosion-proof construction
• Class 1 Division 1: Groups C and D hazardous areas
• Class 2 Division 1: Groups E, F, G environments
• Type 4 Enclosure: Complete environmental protection
• T5 Rating: -50°C to +40°C operation
• T4 Rating: -50°C to +80°C capability

Industry Compliance

• API 670 Standard: Fully compliant design
• RoHS Directive: 2011/65/EU environmental
• FCC Part 15: Electromagnetic compliance
• Non-incendive: When installed per drawing 140979
• Class III: Additional hazardous area rating

Model Configuration Details

• 21000 - Base Housing Assembly
• 16 - 3300 XL 8mm Probe
• 05 - 0.5 Meter Compact Cable
• 15 - 1.5 Inch Standoff
• 114 - 11.4 Inch Penetration
• 03 - Complete Fittings Package
• 02 - 3/4-14 NPT Mounting

Service & Support

• 12-month comprehensive warranty
• FedEx Express worldwide delivery
• UPS Global shipping service
• DHL International options available
• Fast order processing
• Complete tracking provided

Technical Questions

Why choose 0.5-meter cable length?

Compact cable ideal for installations with limited space and short connection distances.

How do I identify the probe after installation?

Use flag labels since the probe becomes not visible with this deep penetration configuration.

What applications need this combination?

Space-constrained installations requiring deep probe penetration benefit from this compact design.

Is sleeve support necessary?

Yes, mandatory for this 11.4-inch penetration to prevent mechanical resonance issues.

Can I access the probe for maintenance?

The screw-in dome cover provides easy access for probe inspection and maintenance when needed.
