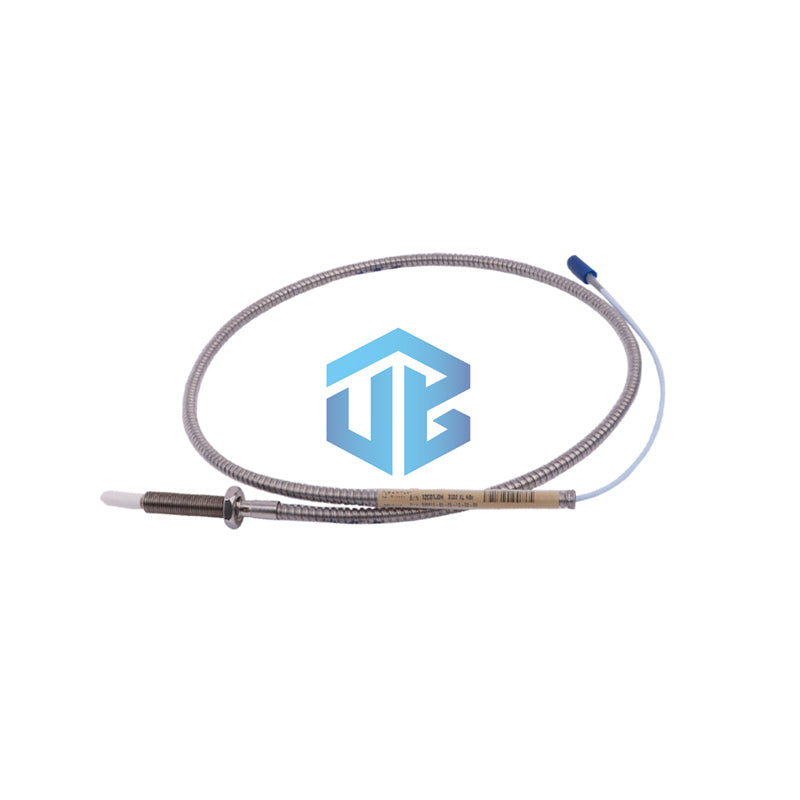

Bently Nevada 3300 NSv Compact Probe 330904-08-10-10-12-00
Manufacturer:
Bently Nevada
Product No.:
330904-08-10-10-12-00
Condition:
In Stock
Product Type:
3300 NSv Compact Probe
Product Origin:
USA
Weight:
500g
Shipping port:
Xiamen
Warranty:
12 months
UBEST – Etibarlı Qlobal Avtomatlaşdırma Hissələri Təchizatçısı
Səhmimizdə olan geniş çeşiddə sənaye avtomatlaşdırma ehtiyat hissələri təklif edirik. Bütün məhsullar 12 aylıq zəmanətlə və keyfiyyət problemləri üçün 30 günlük geri ödəniş ilə gəlir.
Bently Nevada 3300 NSv Compact Fluid-Resistant Probe
Introducing the versatile 330904-08-10-10-12-00 from Bently Nevada. This compact 3300 NSv probe combines a shorter 100mm case with 1.0 meter FluidLoc cable. Perfect for space-constrained applications. Factory new with original packaging. Includes 12-month performance guarantee. Fast global shipping via FedEx, UPS, and DHL.
Complete Model Configuration
- 330904: M8X1 threaded probe with armored protection
- 08: 80 mm unthreaded section for flexible mounting
- 10: 100 mm compact case length for tight spaces
- 10: 1.0 meter FluidLoc cable (39 inches) length
- 12: ClickLoc connector with fluid-resistant sealing
- 00: Standard industrial compliance certification
Technical Specifications
- Brand: Bently Nevada
- Series: 3300 NSv Vibration Monitoring System
- Linear Range: 1.5 mm (60 mils) measurement span
- Output Signal: -1 to -13 Vdc proportional voltage
- Sensitivity: 7.87 V/mm (200 mV/mil) high resolution
- Accuracy: Better than ±0.06 mm precision
- Frequency Response: 0 to 10,000 Hz bandwidth
- Temperature Range: -52°C to +177°C operation
- Electrical Resistance: 4.2 ± 0.5 ohms at 1.0m length
- Cable Type: 75 ohm coaxial with FEP insulation
- Housing Material: 304 Stainless Steel construction
- Tip Material: Chemical-resistant PPS polymer
- Sealing System: Viton O-ring pressure barrier
- Minimum Target: 13 mm diameter recommended
- Installation Torque: 0.56 N•m maximum hand tight
- Bend Radius: 25.4 mm minimum cable protection
- Connector Torque: 5.1 N•m recommended setting
- Cable Capacitance: 69.9 pF/m typical value
- Center Conductor Resistance: 0.220 Ω/m
- Shield Resistance: 0.066 Ω/m protection
- Thread Engagement: 12 mm maximum depth
Installation Guidelines
- Hand tighten only during installation
- Set optimal gap to 1.0 mm (40 mils)
- Maximum 12 mm thread engagement
- Maintain 25.4 mm cable bend radius
- Use shielded triad cable for field wiring
- Maximum 305 meters field wiring length
