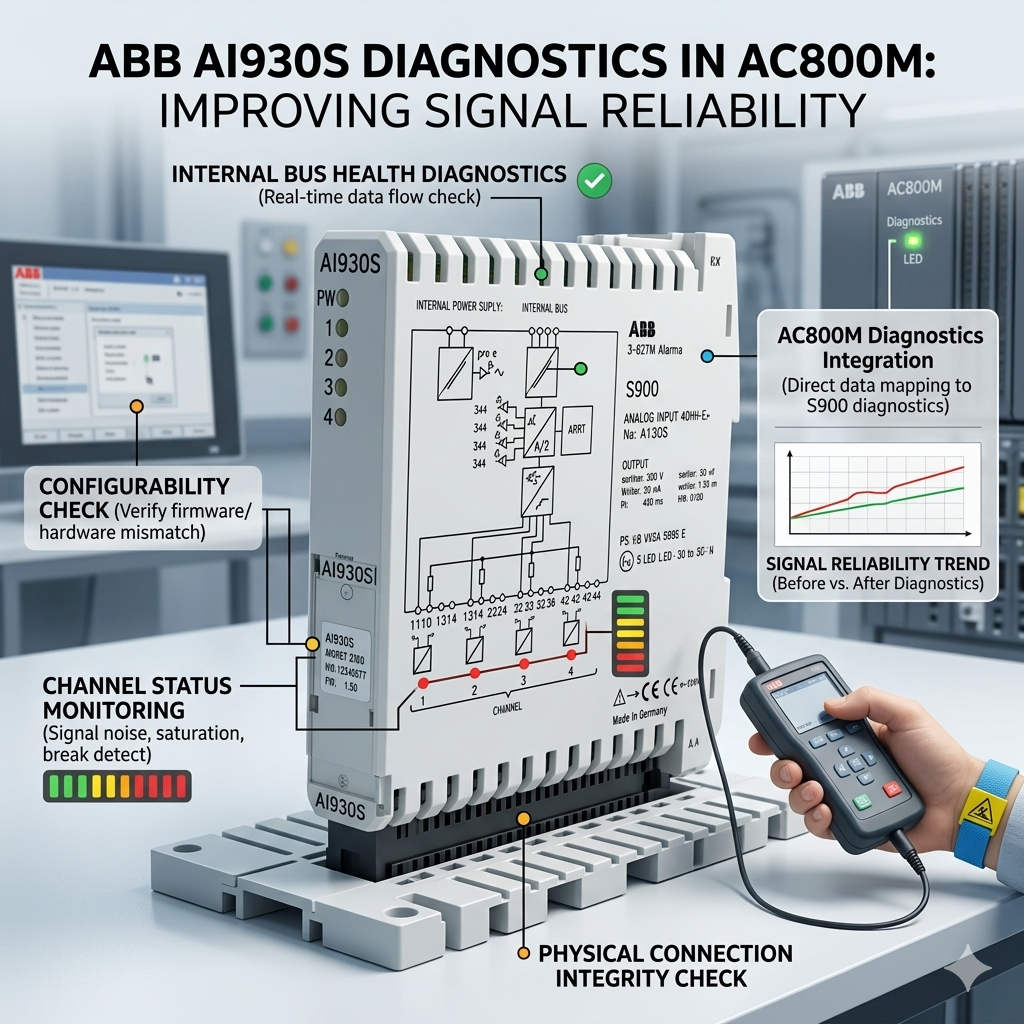

How to Monitor AI930S Channel Diagnostics in ABB AC800M Controllers

Monitoring the ABB AI930S analog input diagnostics is crucial for maintaining high-reliability control systems. Unlike standard modules, the AI930S offers granular channel-level data. This allows engineers to identify sensor failures and wiring issues before they trigger a process shutdown. In critical industries like oil and gas, these diagnostics prevent costly batch deviations. By integrating these signals into the AC800M, you transform reactive repairs into a strategic, predictive maintenance workflow.

Enhancing Process Availability Through Per-Channel Fault Detection

The AI930S module distinguishes between open circuits, short circuits, and sensor burnouts. Within the ABB Control Builder M environment, engineers map these diagnostic bits into structured variables. This level of detail is far superior to simple module-level fault reporting. Consequently, operators can pinpoint the exact location of a 4–20 mA loop failure. Moreover, adding a debounce time to these bits helps avoid nuisance alarms during transient disturbances. This approach significantly boosts overall plant uptime and operator confidence.

Integrating Diagnostics into Redundant AC800M Architectures

High-availability systems benefit significantly from the AI930S's compatibility with redundant controller setups. When you configure the module through S800 I/O infrastructure, diagnostic states synchronize across redundant CPUs. This consistency prevents mismatched data between the primary and backup controllers. In addition, maintenance teams can isolate faulty loops without forcing a system failover. However, you should not rely solely on "Bad Quality" OPC values. Monitoring the channel status word alongside communication health provides a more resilient diagnostic strategy.

Optimizing Diagnostic Scan Rates and System Response

Diagnostic polling frequency directly impacts troubleshooting efficiency in large-scale industrial automation. If the polling rate is too slow, the HMI might display healthy values while a field device is actually disconnected. Therefore, we recommend configuring faster task execution specifically for critical diagnostic routines. Separate these instrument faults into distinct alarm classes within your DCS. This method is particularly effective for identifying intermittent shielding issues during high-temperature washdowns in pharmaceutical batch processes.

Field Maintenance: Shielding, Grounding, and Loop Verification

Improper shield termination often causes unstable readings in AI930S modules. Always ground the analog cable shield at one side only to prevent ground loops. In addition, keep analog wiring physically separated from high-power VFD cables. Before replacing a module, technicians should inspect terminals for oxidation and verify external loop power. In humid offshore environments, corroded terminals frequently mimic hardware failures. A thorough diagnostic review in the AC800M can save hours of unnecessary hardware replacement time.

Application Scenario: Refining and Petrochemical Loops

In a recent refinery project, a client experienced intermittent trips on a critical pump. By analyzing the AI930S channel status bits in the AC800M controller, we identified a vibrating junction box terminal as the cause. The "Channel Fault" bit flickered milliseconds before the signal dropped, allowing the maintenance team to tighten the connection without replacing the transmitter or the module. This saved the facility an estimated four hours of unplanned downtime.
