Optimizing Redundant S900 I/O Communication with ABB CI920AN Interfaces
In modern process industries like oil & gas and petrochemicals, communication failures can trigger catastrophic downtime. The ABB CI920AN communication interface provides a robust solution for redundant PROFIBUS DP connectivity within the S900 remote I/O system. By implementing a dual-channel architecture, this module ensures high system availability and fault tolerance. Moreover, it allows your control systems to maintain data flow even during path failures. This reliability is essential for continuous processes where unplanned shutdowns lead to massive financial losses.
Redundant PROFIBUS DP Architectures Boost Process Availability

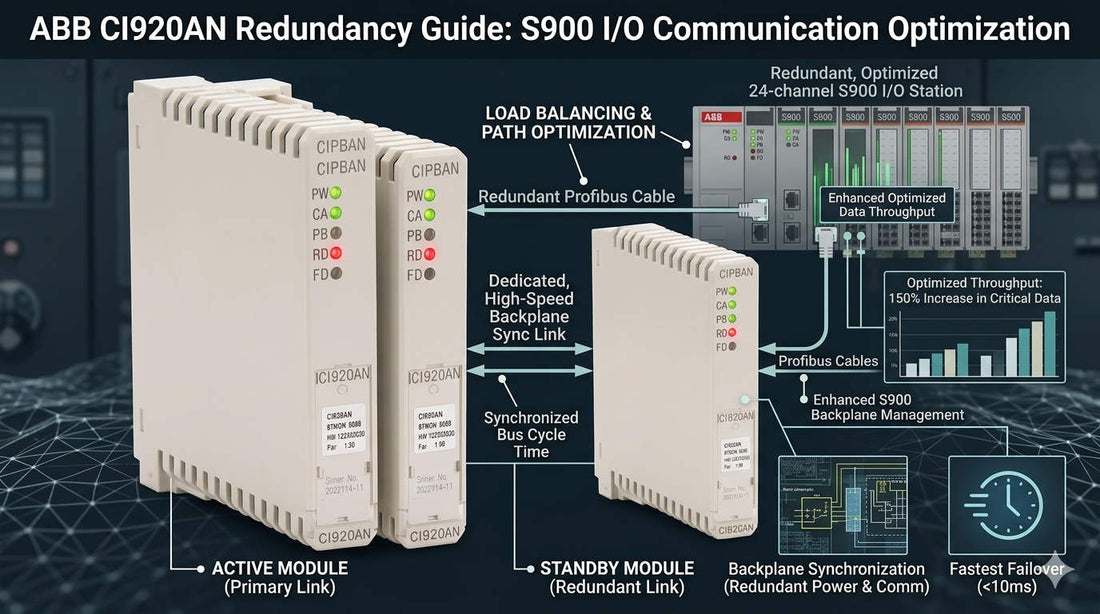

The CI920AN supports a redundant topology between ABB controllers and S900 I/O stations. In this configuration, two independent paths operate in a standby or active-redundancy setup. Consequently, operators in refinery environments face fewer risks of losing critical valve feedback or analog signals. From my experience, redundancy is non-negotiable for Emergency Shutdown Systems (ESD) and reactor control loops. However, a common engineering mistake involves routing redundant cables through the same tray. Therefore, you must use physically separated paths to eliminate single points of failure in hazardous areas.
Enhancing Network Stability via Optical and Electrical Compatibility
Flexible integration with both electrical and fiber-optic networks makes the CI920AN a versatile asset for industrial automation. Large plants often struggle with electromagnetic interference (EMI) near high-power motors or turbine halls. Fiber-optic isolation effectively bypasses noise issues caused by VFD switching or improper shield termination. In addition, fiber extensions overcome distance limitations that standard copper segments face. Adhering to IEC 61158 standards for low-impedance grounding is vital. Improper multi-point grounding remains a frequent cause of unstable S900 communication in factory automation.
Reducing Maintenance Downtime with Hot-Swap Capabilities
The S900 platform, paired with the CI920AN, offers excellent maintainability during live operations. Maintenance teams can replace modules without interrupting the ongoing process, which significantly reduces Mean Time To Repair (MTTR). Nevertheless, you must verify firmware compatibility before swapping modules. Mixing older S900 revisions with new DCS communication libraries often produces elusive diagnostic alarms. In validated pharmaceutical environments, always document firmware changes according to GMP change-control procedures to ensure long-term compliance and system integrity.
Best Practices for Installation and Mechanical Stability
Successful site implementation requires more than just high-quality hardware. For instance, connecting redundant interfaces to the same power distribution source weakens the redundancy logic. Instead, utilize independent power segments and separate UPS units for critical applications. In high-vibration areas like compressor stations, mechanical stability is paramount. Many intermittent "module faults" actually stem from loose PROFIBUS connectors. Therefore, we recommend using locking industrial connectors and vibration-resistant clamps to maintain a secure electrical path throughout the PLC network.
Key Technical Requirements for S900 Redundancy
- ✅ Power Isolation: Use independent power segments for each redundant CI920AN channel.
- ⚙️ Termination Check: Ensure PROFIBUS termination resistors are only active at segment ends.
- 🔧 Mechanical Integrity: Apply armored cabling and locking connectors in high-vibration zones.
- 📈 Diagnostics: Perform simulated cable disconnection tests during FAT/SAT phases.
Strategic Commentary from Ubest Automation Limited
At Ubest Automation Limited, we emphasize that true redundancy is a physical and logical strategy, not just a hardware purchase. The CI920AN is exceptionally reliable, but its performance depends on the quality of the surrounding network infrastructure. We suggest that engineers prioritize fiber-optic backbones for any run exceeding 100 meters. This proactive approach minimizes the troubleshooting burden for site technicians. For brownfield upgrades, always consult a compatibility matrix to avoid protocol mismatches that cause startup delays.
Explore our extensive inventory of original ABB components at Ubest Automation Limited to secure your facility's operational future.
Industrial Application Scenarios
Continuous Chemical Processing: In reactor temperature control, even a 500ms loss of I/O data can lead to safety trips. Redundant CI920AN modules ensure the DCS maintains control during network glitches. This setup prevents costly product loss and reactor "poisoning" events that take days to recover from.
Remote Wellhead Monitoring: For remote oil & gas sites, the environmental robustness of the S900 system and the redundant CI920AN interface ensure reliable data transmission back to the central hub, even in the presence of severe atmospheric interference or local equipment vibration.
Professional Engineering FAQ
Experience-based Answer: Use the "One-Incident Rule." If the total cost of a single unplanned shutdown (including lost product, labor, and restart energy) exceeds the cost of redundant interfaces, the investment is justified. In most continuous processes, redundancy pays for itself within the first network glitch.
Experience-based Answer: Yes, it follows standard GSD-based PROFIBUS DP protocols. However, to achieve full redundancy failover transparency, the Master PLC or controller must support PROFIBUS Redundancy (PNO standards). Always test the GSD file integration in your engineering tool before site deployment.
Experience-based Answer: Verifying the "Switchover Time." Ensure your controller's watchdog settings are compatible with the CI920AN failover speed. If the watchdog is too aggressive, the controller might trip the process before the redundant interface takes over.
