Safe Hot-Swapping of the ABB DSAO120A AO Module in Live DCS Environments
The ABB DSAO120A analog output module operates reliably within specialized Symphony and Advant control systems. It transmits critical 4–20 mA signals to control valves and variable frequency drives (VFDs). In continuous-process environments, sudden output loss can instantly trigger safety interlocks. However, maintenance teams can replace a faulty module without killing rack power. This live execution minimizes your Mean Time to Repair (MTTR). It also protects adjacent loops from common-channel electrical disturbances during live mitigation.
Mitigating Bus Disturbances with Channel Isolation
The DSAO120A interfaces directly with the central DCS backplane to transmit high-accuracy control signals. Unplugging a live module without isolation can create floating outputs on the analog bus. Consequently, adjacent loops might experience sudden current spikes or false readings. ABB engineers built reliable channel isolation into the hardware architecture. Despite this onboard safety feature, executing manual shorting steps remains mandatory. Proper physical isolation prevents unexpected actuator travel on critical plant assets.
Managing Output Behavior During Live Insertion
Analog signal stability directly influences the tracking precision of fast-acting steam valves. During module re-insertion, initialization transients can cause sudden output bumping. Therefore, experienced engineers force the target loop into MANUAL mode beforehand. This operational practice safeguards downstream actuators from unmapped digital-to-analog transitions. Maintaining linear loop execution protects vulnerable components inside your factory automation layout. It prevents high-frequency oscillation during the initialization phase.
Preventing Environmental Degradation in Control Cabinets
Industrial control enclosures often face corrosive atmospheres containing moisture or elevated sulfur levels. Over time, these conditions oxidize edge connectors and degrade sensitive conformal coatings. Moreover, continuous mechanical vibration can loosen terminal block screws over months. These combined factors frequently cause intermittent signal drift within your industrial automation loop. To minimize tracking errors, technicians should verify shield grounding layouts according to IEC standards. Maintaining clean cabinet ventilation prevents premature module aging.

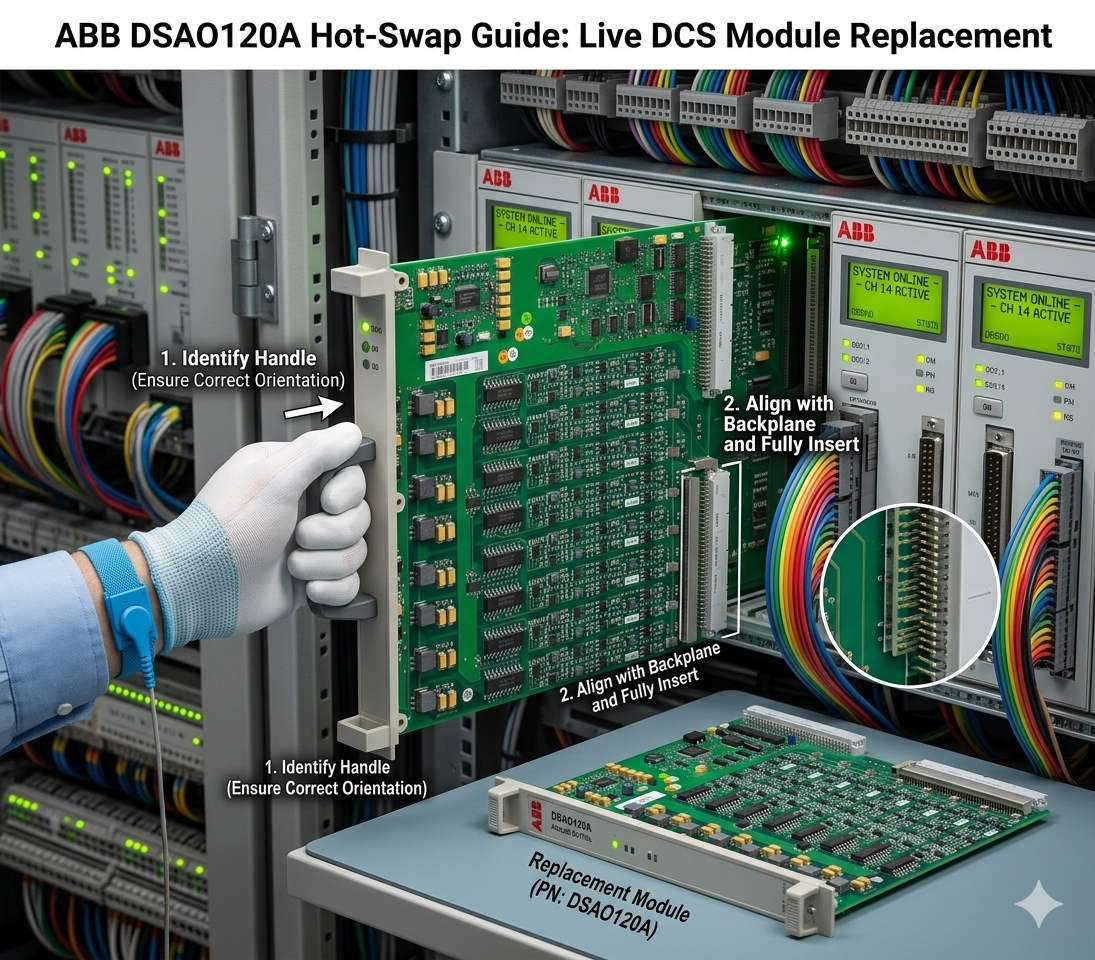

Step-by-Step Live Replacement Procedure
- ✅ Mode Override: Place the target DCS loop into MANUAL mode at the operator console.
- ⚙️ Jumper Isolation: Install an approved temporary shorting bridge across the designated terminal blocks.
- 🔧 Current Verification: Confirm loop current stability with a calibrated multimeter before physical removal.
- 📈 Hardware Exchange: Extract the faulty module slowly and slide the replacement unit firmly onto the backplane.
Expert Maintenance Commentary from Ubest Automation Limited
At Ubest Automation Limited, we emphasize that hot-swapping success relies heavily on strict procedural compliance. Technicians frequently cause field tracking errors by mixing up jumper sequences on marshalling panels. Never connect an active analog output directly to cabinet ground. For high-vibration skids, we highly recommend using ferrule-terminated connections instead of bare wires. This practice prevents intermittent loop dropouts that mimic actual hardware failures.
To acquire genuine ABB modules or access specialized technical support, visit Ubest Automation Limited. Our team will keep your processing loops running smoothly.
Industrial Application Scenario: Boiler Feedwater Control
A chemical plant experienced an internal component failure on a DSAO120A module controlling a high-pressure boiler feed valve. Following strict MOC guidelines, the instrumentation team isolated the loop via terminal bridges. They swapped out the faulty card while the boiler remained online at full capacity. Thanks to the isolated architecture, adjacent fuel flow control loops experienced zero signal crosstalk, avoiding a costly plant shutdown.
Field Engineering Frequently Asked Questions
Persistent internal diagnostic faults or output drift exceeding factory tolerances indicate component failure. If you observe physical burn marks near the output resistors or edge connectors, discard the card. Proactive replacement prevents unpredictable fail-safe tracking actions in active production loops.
You must verify your current firmware library and backplane generation before procurement. Mixed hardware revisions can sometimes trigger initialization faults or database mapping mismatches. Review the manufacturer's revision matrix to guarantee proper redundancy synchronization.
Removing an unisolated card forces the active channel into an open-circuit state momentarily. This creates a severe inductive spike that can propagate through shared common rails on the terminal block. Physical shorting maintains circuit loop continuity, keeping neighboring loops completely stable.
