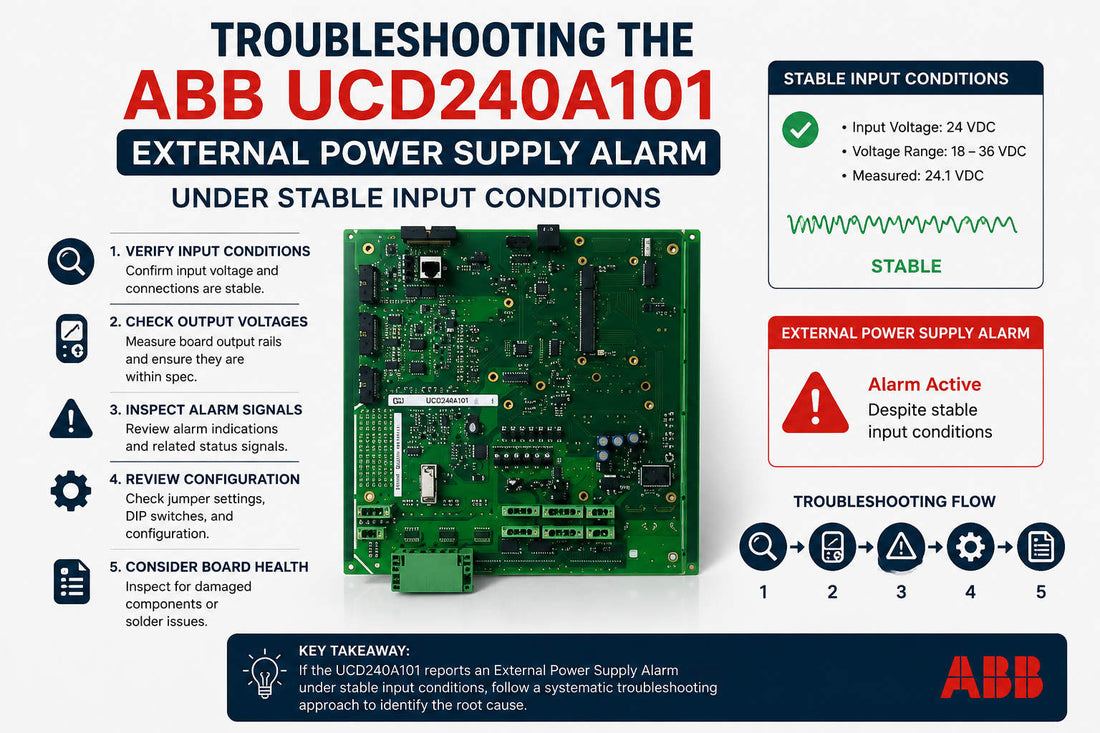

Troubleshooting the ABB UCD240A101 External Power Supply Alarm Under Stable Input Conditions

The ABB UCD240A101 module often triggers a false "External Power Supply Fail" alarm despite healthy voltage levels. In many control systems, the external 24VDC source functions perfectly. However, the internal monitoring circuit within the module drifts or degrades over time. This hidden hardware fault occurs frequently in continuous-process industries, including petrochemical and pharmaceutical facilities. Operating under constant 24/7 loads inside warm cabinets accelerates internal component aging. Therefore, maintenance teams must accurately diagnose whether the issue stems from the power supply or internal circuitry.

Decoding Internal Redundant Supervision Logic and Component Failure

ABB hardware relies on specialized input filters, over-voltage limiters, and opto-isolated sensing paths to monitor field power. Multimeters often measure a steady 24.2VDC at the terminal block during an active alarm state. Nevertheless, the diagnostic fault persists because internal voltage divider resistors drift due to thermal stress. Furthermore, a decline in the optocoupler current transfer ratio (CTR) can trick the CPU logic. This condition generates a false undervoltage status. Consequently, swapping the external power supply unit (PSU) will not clear this specific internal hardware defect.

Impact of Long-Term Thermal Drift on Component Reliability

Cabinet temperatures in industrial environments often exceed 40 degrees Celsius over years of continuous plant operation. This sustained heat causes precision resistors and TL431 voltage reference circuits to drift outside their nominal tolerances. Moreover, surface-mount electrolytic capacitors lose capacity and exhibit increased equivalent series resistance (ESR). These false power failure alarms frequently trigger redundant controller switchovers and cause massive event log flooding. In batch-processing industries, these nuisance alarms can compromise electronic batch record integrity and complicate regulatory audits.

Analyzing Voltage Ripple and High-Frequency Transient Immunity

Standard handheld multimeters only register static DC voltage amplitude and easily miss high-frequency power anomalies. The internal sensing logic of the UCD240A101 remains highly sensitive to millisecond voltage dips and transient noise. Therefore, engineers should utilize an oscilloscope with differential probes under full cabinet operating loads to inspect power quality. Variable frequency drives (VFDs) often introduce significant common-mode noise into the system. If the cabinet grounding setup is inadequate, this electrical noise will easily corrupt the DCS diagnostic measurements.

Field Isolation Techniques for Identifying Internal Defects

To isolate the fault, technicians should connect a laboratory-grade regulated power supply directly to the isolated module. If the error remains active under clean power, the internal sensing circuit is definitely defective. Inspectors should examine the circuit board for visible discoloration near the low-voltage linear regulator section. Additionally, check the thermal protection diodes for excessive reverse leakage current. This rigorous benchmarking process prevents the unnecessary replacement of perfectly functional field power supplies, saving significant maintenance budget.

Mitigating Solder Fatigue in High-Vibration Industrial Applications

Vibration from nearby pumps, turbines, or heavy manufacturing machinery often cracks solder joints around heavy power components. These micro-cracks usually develop near terminal connectors and large surface-mount power inductors over extended operating periods. This mechanical issue causes intermittent voltage dropouts that technicians frequently misdiagnose as external supply faults. Reflowing the affected surface-mount pads under a microscope quickly restores normal component operation. Where permitted, reinforcing these heavy components with specialized electronics-grade silicone prevents future fatigue failures.

Enhancing External Surge Protection and Compliance Standards

Many legacy industrial automation enclosures lack dedicated surge suppression devices on their low-voltage distribution rails. Repeated electrical transients gradually degrade the sensitive comparison circuits long before the main power stage fails entirely. Therefore, plants should install dedicated DIN-rail surge suppressors and maintain single-point shield grounding. Separating VFD power conduits from low-voltage factory automation signal lines is also a critical best practice. Following strict IEC 61000 compliance guidelines drastically reduces premature circuit board failures and nuisance diagnostic events.

Solution Scenario: Resolving Nuisance Alarms in a Refinery

A major refinery suffered from recurring power alarms on an ABB DCS controller rack located near a large compressor room. The plant team replaced the main power units twice, but the system fault remained. Our senior engineers performed an on-site evaluation and discovered severe optocoupler degradation caused by localized cabinet heat. Replacing the damaged module and adding a compact cooling fan completely resolved the alarm issue, ensuring zero downtime for the plant over the following year.
