Common Hardware Failures and Their Impact

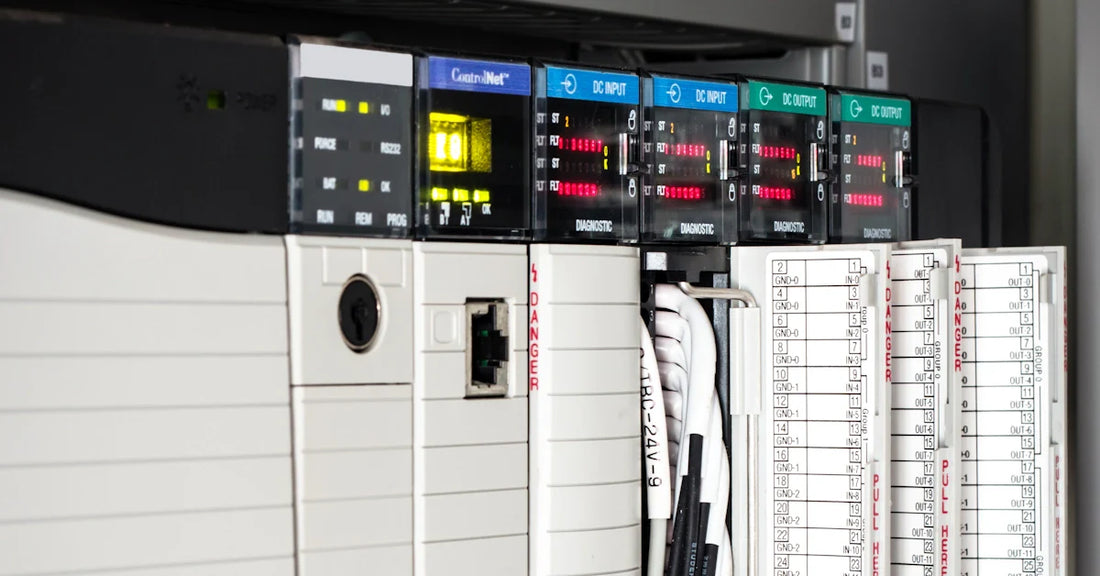

Hardware issues in ControlLogix systems, like power supply faults or I/O module failures, can halt production and cost thousands per minute. From my 15 years in industrial automation, I’ve seen many teams waste hours guessing the problem. Start by checking LED indicators: a solid red light on a 1756-PBxx power module often means overload, while flickering I/O modules suggest communication breakdowns.

Step-by-Step Diagnostic Process

1. Check Module LEDs: Match status lights to the manual’s error codes.
2. Use RSLogix 5000: Navigate to “Controller Properties” > “Module Info” to pinpoint faults.
3. Swap Suspect Modules: Test with a spare (same firmware version) to confirm failures.

Most users skip step 2 and jump to replacements, but software diagnostics save time. For example, a “Major Fault” in RSLogix 5000 might reveal a corrupted 1756-L7x controller, not the I/O rack.

Pro Tips to Avoid Mistakes

• Never Ignore Grounding Issues: Loose chassis ground wires mimic module failures.
• Update Firmware First: Some “hardware” errors stem from outdated firmware mismatches.
• Label Backup Modules: Pre-configured spares cut downtime by 70% during swaps.

Final Thoughts

Quick troubleshooting relies on systematic checks, not guesswork. Train your team to use RSLogix tools and keep critical spares on hand. Remember: 40% of “failed” modules I’ve audited were actually misconfigured. Invest in preventive diagnostics to turn hours of downtime into minutes.
