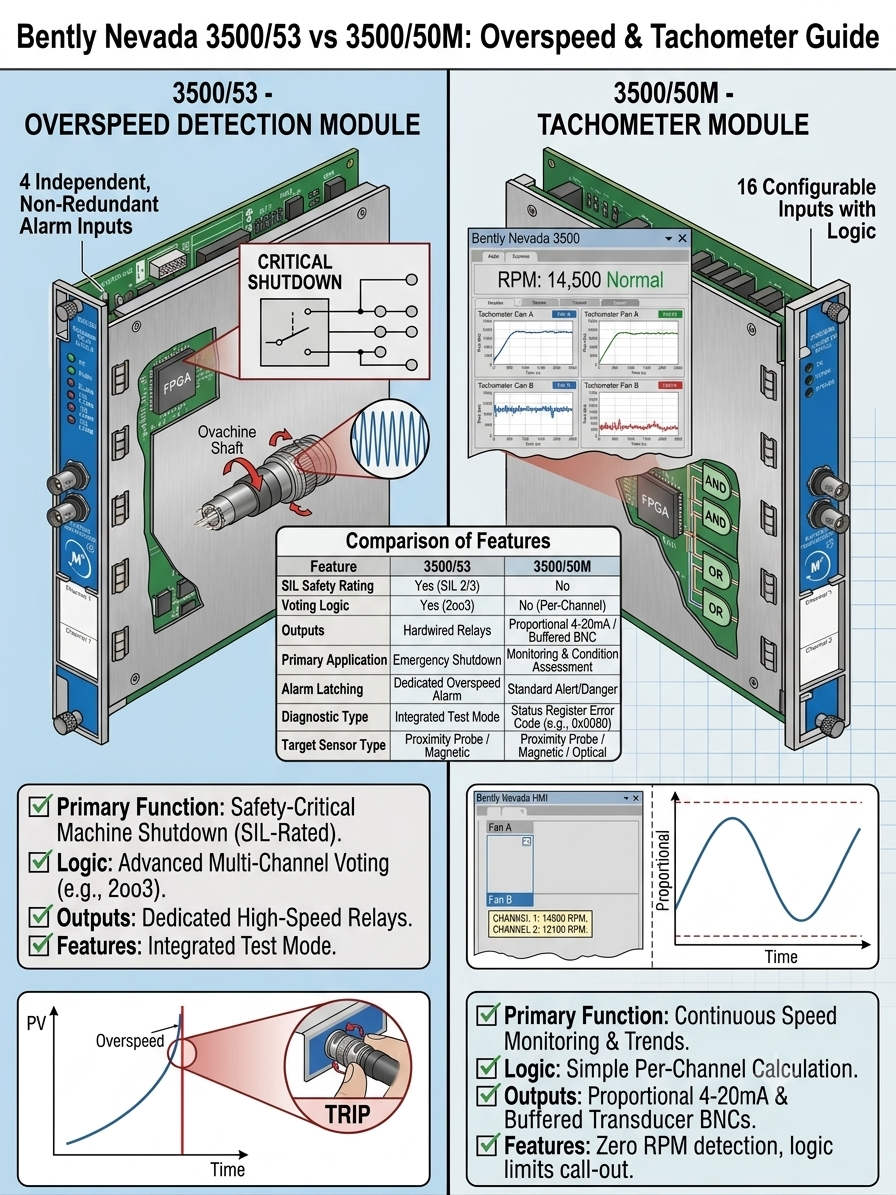

Bently Nevada 3500/53 vs 3500/50M: Speed Protection and Monitoring
Engineers often confuse the Bently Nevada 3500/53-03-00 Overspeed Protection Module with the 3500/50M Tachometer Module. However, these two components serve completely distinct functions within the 3500 rack. Misunderstanding their differences can lead to catastrophic hardware failure on heavy rotating machinery. The 3500/53 focus exclusively on emergency safety shutdown execution. Meanwhile, the 3500/50M handles operational data tracking and diagnostics. In high-risk industrial automation plants, deploying them correctly protects multi-million dollar assets from overspeed destruction.
Evaluating Core Safety Applications and Operational Values
The primary purpose of the 3500/53 module involves executing high-speed safety-critical trips. It operates as an independent safety barrier for gas turbines and large centrifugal compressors. Conversely, the 3500/50M Tachometer Module specializes in operational speed measurement and acceleration trends. This component delivers essential process data to plant operators rather than triggering safety interlocks. Therefore, the 3500/53 fulfills strict safety compliance needs. In addition, the 3500/50M supports predictive maintenance scheduling and machine optimization.
Analyzing Hardware Architecture and Strict Interchangeability Rules
The 3500/53 and 3500/50M are not interchangeable under any operating conditions. The overspeed module contains onboard voting logic and fast-acting trip relays. This heavy-duty architecture meets the rigorous safety requirements of API 670 machinery protection standards. However, the tachometer module lacks the hardware needed to execute legal emergency shutdowns safely. Substituting a 3500/50M into an emergency trip loop violates factory safety insurance regulations. Consequently, critical steam turbine systems always install both modules alongside standard DCS networks.
Comparing Critical Technical Specifications and Module Capabilities
| Feature or Capability | Bently Nevada 3500/53-03-00 | Bently Nevada 3500/50M Tachometer |
|---|---|---|
| Primary Safety Target | Emergency Emergency Trip | Continuous Condition Monitoring |
| Integrated Relay Outputs | Yes (Dedicated Trip) | Alarm Relays Only |
| Reverse Rotation Detection | Not Available | Yes (Bi-directional Sensors) |
| SIL Rating Potential | Designed for SIL Environments | Not Intended for SIL Loops |
| Peak Waveform Data Output | Limited | High-Resolution Speed Tracking |
Understanding Speed Response Times and Protective Architectures
The 3500/53 evaluates input frequencies against pre-set safety limits within milliseconds. In heavy steam turbines, even minor latency permits massive rotational kinetic energy buildup. This uncontrolled acceleration can quickly cause rotor coupling failures or catastrophic blade liberation. Therefore, the overspeed card bypasses standard network latency to trigger physical trip valves immediately. This instantaneous response prevents expensive asset damage while safeguarding field personnel working inside the factory automation facility.
Managing Redundant Sensors and Eliminating Nuisance Plant Trips
Speed sensor failures represent a leading cause of accidental factory trips worldwide. To solve this, the 3500/53 incorporates redundant voting logic configurations. Engineers can configure 2-out-of-2 or 2-out-of-3 transducer input architectures easily. This redundancy maintains high machine safety while preventing costly production losses. The 3500/50M also reads proximity probes but focuses on advanced diagnostic parameters. For instance, it tracks rotor acceleration profiles during critical startup and coast-down phases.
Field Installation Strategies and Magnetic Probe Selection
Successful commissioning requires verifying your sensor types before powering the 3500 rack. Magnetic pickups and proximity probes require vastly different signal conditioning settings. Therefore, engineers must check voltage amplitudes, gear teeth counts, and probe gap dimensions. Mismatched components generate inaccurate pulse counts or false overspeed trips. In addition, separate your speed sensor wiring from high-power motor feeders. This physical isolation shields low-voltage signals from electromagnetic interference emitted by modern control systems.
Engineering Best Practices for Speed Systems
- ✅ Adhere to API 670: Always deploy a dedicated 3500/53 module for critical machine emergency shutdown systems.
- ⚙️ Configure Proper Voting: Utilize 2oo3 voting architectures to minimize nuisance trips from broken speed sensors.
- 🔧 Separate Your Cables: Route pulse signals inside isolated conduits away from high-voltage variable frequency drives.
- 📈 Perform Actual Tests: Simulate physical pulse frequencies during scheduled plant shutdowns to verify trip relay integrity.
Expert Perspective from Ubest Automation Limited
At Ubest Automation Limited, we emphasize that speed monitoring is never a one-size-fits-all solution. The 3500/53 handles safety execution, while the 3500/50M manages operational visibility. Substituting one for the other creates massive regulatory non-compliance risks. We consistently advise B2B procurement managers to review machine OEM manuals before ordering spare parts. Investing in the correct hardware combinations preserves system integrity and prevents catastrophic downtime.
To browse our extensive inventory of authentic Bently Nevada parts, visit Ubest Automation Limited. Our industrial specialists stand ready to support your upcoming system upgrades.
Application Case: Protecting a 50MW Steam Turbine
A power generation plant integrated both modules into a 50MW generator setup. The 3500/53 connected directly to three magnetic sensors over the main gear. During a sudden electrical load rejection event, the turbine speed spiked instantly. The 3500/53 module detected the excursion and tripped the main steam valve within 15 milliseconds. Concurrently, the 3500/50M captured the exact peak acceleration curve for the engineering team. This unified approach protected the rotor from destruction and provided excellent post-trip diagnostics.
Engineering Frequently Asked Questions
While the 3500/50M features alarm relays, it communicates primarily via internal backplanes or Modbus networks. Sending a trip signal through a standard PLC adds network delay. For safety-critical machinery, you must use the 3500/53 card. It contains hardware-wired relays that bypass external communication lags completely.
Reverse rotation is a slow-speed diagnostic event, often occurring during machine shutdown or pump backflow. The 3500/50M uses special multi-element probe configurations to evaluate direction. The 3500/53 ignores direction because its sole priority is microsecond frequency evaluation during forward overspeed crises.
The specific numeric suffixes indicate the exact I/O module type and internal relay configuration options. For instance, they dictate whether the system uses internal or external termination blocks. Always verify these option numbers against your original panel blueprints before ordering replacement hardware.
