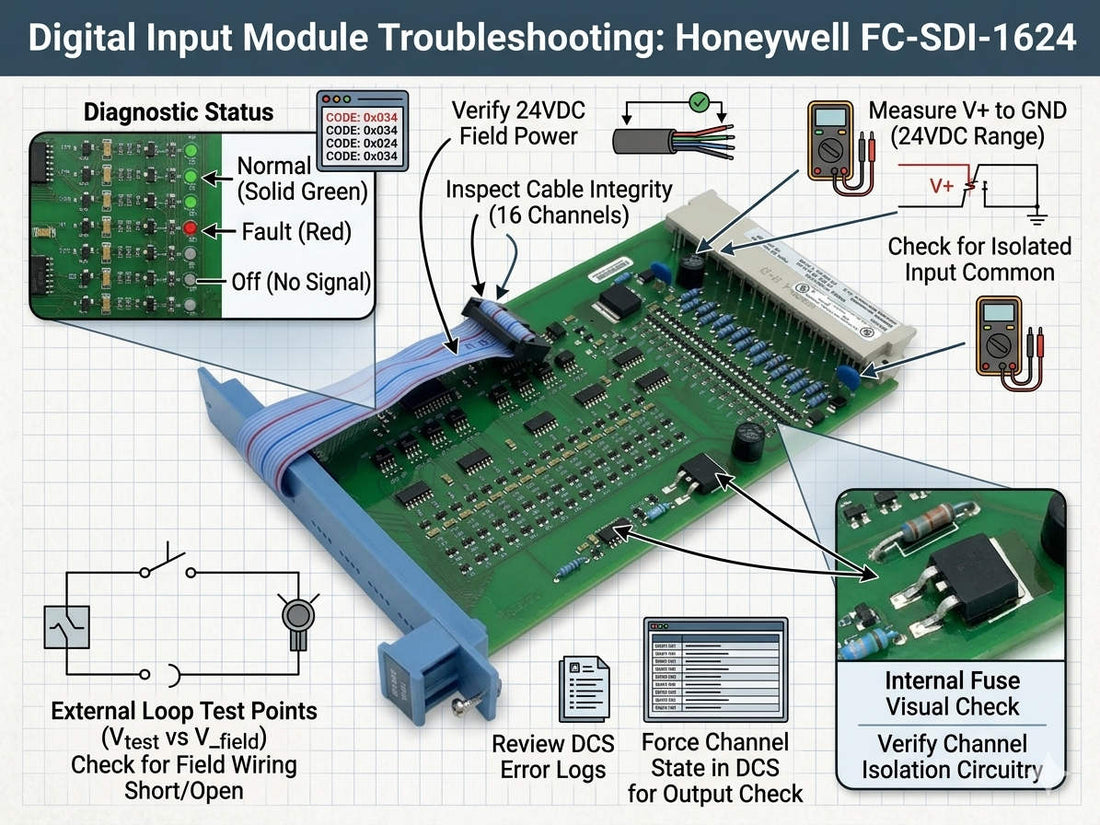

Optimizing Diagnostics with the Honeywell FC-SDI-1624 Digital Input Module
The FC-SDI-1624 digital input module ensures reliable field signal acquisition in safety-critical and process-intensive environments. Its onboard LED indicators serve a vital diagnostic purpose. These lights allow engineers to verify signal status, wiring integrity, and module health instantly. In industries like petrochemicals and power generation, these visual aids significantly reduce troubleshooting time. Consequently, the module helps maintain continuous operation during commissioning or emergency fault isolation within your DCS or industrial automation network.
Channel Status LEDs and Real-Time Signal Verification
Each input channel features an individual LED reflecting the real-time state of the field signal. This per-point indication enables rapid verification of sensor or switch operation during initial setup. Moreover, it helps maintenance teams identify wiring faults, such as open loops or short circuits, without using a multimeter. By isolating faulty channels instantly, you can minimize system downtime. Therefore, these indicators enhance the overall efficiency of factory automation maintenance protocols.
Module Health Indicators for System-Level Integrity
The module includes a system-level LED to indicate overall hardware health. A solid green light typically signifies normal operation, while flashing green indicates active communication. However, a red or extinguished LED signals a hardware fault or configuration mismatch. This feedback is critical for diagnosing backplane communication issues within control systems. It prevents engineers from misinterpreting field-side faults when the root cause actually lies at the module level. As a result, troubleshooting becomes more accurate and faster.
Power Supply Monitoring to Prevent False Diagnostics
The dedicated Power/Field Supply LED confirms whether the field-side voltage remains within an acceptable range. This feature is essential in safety systems where the loss of field power must be detected immediately. In many cases, an unpowered field circuit can mimic a sensor failure, leading to unnecessary part replacements. Therefore, this LED helps verify the correct wiring of external power supplies during installation. It ensures that your safety loops remain compliant with rigorous PLC operational standards.
Engineering Checklist for FC-SDI-1624 Maintenance
- ✅ Wiring Verification: Confirm NPN/PNP field device types against the module's sinking/sourcing configuration.
- ⚙️ Visibility Design: Install modules at eye-level and ensure adequate cabinet lighting for clear LED status.
- 🔧 Connection Security: Use spring-clamp terminals in high-vibration areas like compressor stations.
- 📈 Power Validation: Always check the Field Supply LED before concluding a sensor or switch has failed.
Expert Insight from Ubest Automation Limited
At Ubest Automation Limited, we have observed that intermittent LED flickering often points to loose wiring or vibration-induced contact issues. While the FC-SDI-1624 is exceptionally robust, its performance depends on the quality of the physical installation. For offshore or heavy-duty industrial sites, we strongly recommend periodic re-torquing of screw terminals or switching to vibration-resistant clamps. Integrating these modules into a SIL-rated Honeywell Safety Manager environment requires strict adherence to firmware compatibility. Expert consultation ensures your safety loops meet IEC 61511 compliance.
To source genuine Honeywell FC series modules or to receive expert technical support, please visit Ubest Automation Limited. Our team is ready to help you optimize your safety-critical infrastructure.
Application Case: Fault Isolation in a Power Plant
During a turbine commissioning phase, a startup sequence failed due to a missing "Ready" signal. Using the FC-SDI-1624 channel LEDs, the engineer saw that the specific input light remained off despite the sensor being engaged. This visual cue led them directly to a missing common reference (COM) wire in the junction box. By relying on the module’s onboard diagnostics, they avoided hours of signal tracing and multimeter testing, keeping the project on schedule.
Engineering Frequently Asked Questions
This discrepancy usually occurs due to a mismatch between the sensor type and the module configuration. Check if you are using a dry contact, NPN, or PNP device. Ensure the common return wire (COM) is securely connected, as a missing reference will prevent the current loop from closing.
Hot-swapping capabilities depend on your specific system architecture, such as a redundant Honeywell Safety Manager rack. Always consult the safety manual for your DCS before attempting a live replacement. Improper handling can trigger an unintended safety trip, causing a total plant shutdown.
Yes, when used within a certified Honeywell Safety Manager or FSC platform, the FC-SDI-1624 supports SIL 3 applications. However, you must verify that the entire loop, including the field sensor and the final control element, meets the required Safety Integrity Level per IEC 61508/61511 standards.
