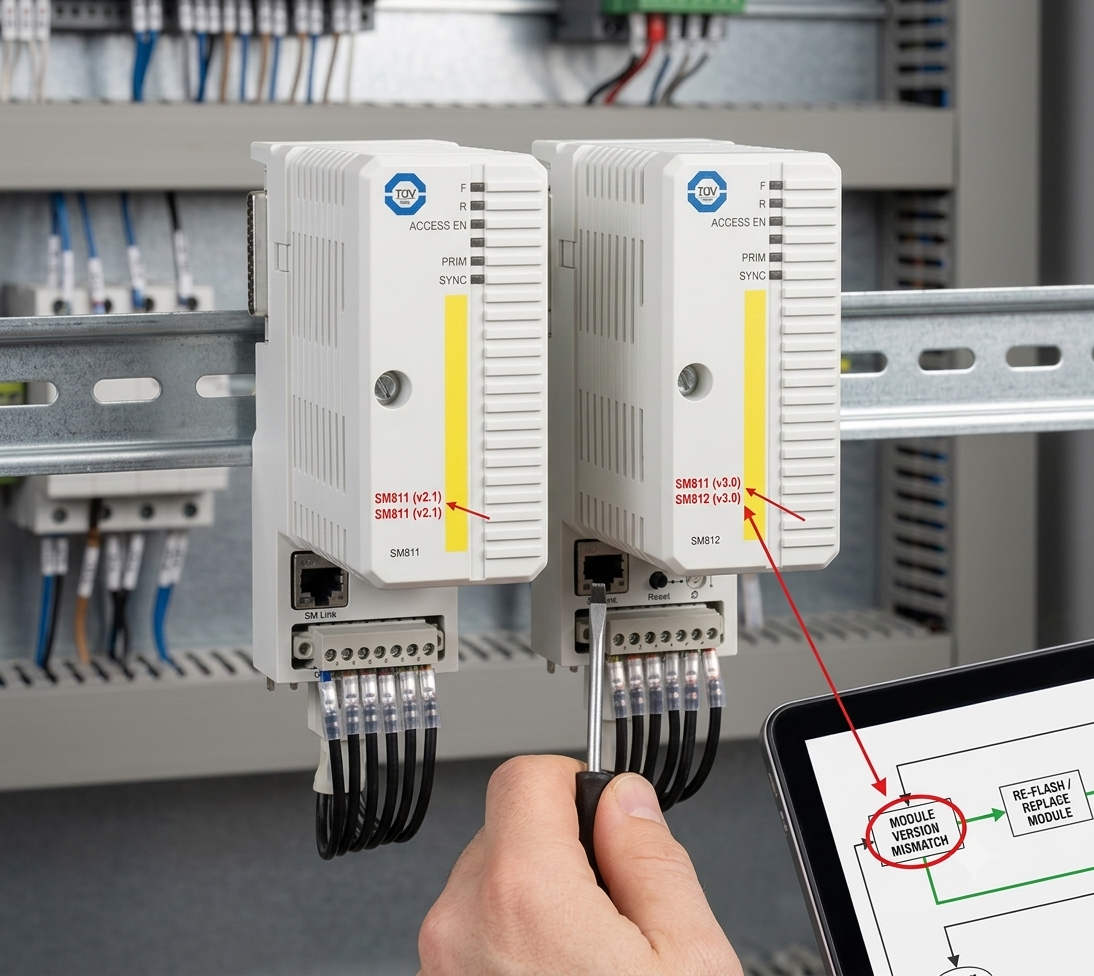

Resolving ABB SM811 and SM812 Safety Module Mismatch Faults with PM865
The ABB SM811 and SM812 serve as critical SIL3 high-integrity safety modules within the AC 800M platform. They typically operate alongside the PM865 safety controller to manage emergency shutdown (ESD) and burner management systems (BMS). However, operators sometimes encounter a critical "Safety Module Mismatch" alarm during commissioning or maintenance. This error indicates that the controller detected an identity, firmware, or configuration discrepancy. In high-stakes sectors like petrochemicals or refining, this fault blocks safe system operations, potentially halting entire production loops.
Understanding the SIL3 Safety Integrity and Active Diagnostics
The SM811 and SM812 modules strictly comply with IEC 61508 safety standards to deliver SIL3 protection. Their true value stems from internal redundancy mechanisms that constantly monitor CPU health and communication links. If an anomaly occurs, the hardware automatically transitions the system into a predefined safe state. When a mismatch error triggers, the controller assumes the system cannot guarantee its certified safety functions. Therefore, the safety logic locks up automatically. Resolving this issue requires deep technical analysis rather than simply bypassing the warning message.
Deciphering the Safety Signature and Verification Mechanism
The PM865 safety controller uses a unique safety signature to verify module consistency across the **control systems** network. This verification process validates hardware serial numbers, firmware revisions, and safety application CRCs alongside the Safety Configuration ID. Over 70% of field mismatch errors originate from signature discrepancies rather than actual physical hardware failure. This issue frequently happens when technicians replace modules or update the engineering database without synchronizing the project. Consequently, the signature validation fails, and the system halts to protect plant personnel.
Strict Firmware Matrix Requirements for High Integrity Racks
ABB High Integrity safety controllers enforce rigid firmware compatibility matrices across all connected nodes. The controller firmware, safety firmware, and Control Builder M engineering packages must fall into an identical certified revision group. If you upgrade the PM865 firmware but leave the SM811 untouched, a mismatch error will immediately manifest. Although physical communication across the module bus remains functional, the security handshake will fail. Therefore, engineers must consult official ABB compatibility tables before applying any software patches in the field.
Step-by-Step Troubleshooting for Safety Module Discrepancies
When the mismatch error occurs, first verify that the physical module model matches the engineering tree exactly. Mistakenly replacing an SM811 with an SM812 during expansions will instantly trigger a mismatch alarm due to identity variation. Second, perform a complete download of the dedicated safety application rather than a standard control application update. Third, initiate a comprehensive safety synchronization sequence within the software environment. Finally, execute a warm restart to clear legacy signature cache from the active processor memory buffers.
Handling Pre-Owned Inventory and Electrical Interference
Using spare parts sourced from surplus stock requires extra caution during plant retrofits. Pre-owned SM811 or SM812 modules often retain older configuration IDs and structural profiles from their previous **factory automation** systems. Technicians must perform a full module initialization to erase old memory registers before attempting a project download. Additionally, verify signal grounding protocols to prevent electrical noise from corrupting data transfers. In mixed-voltage cabinets, proper isolation shields sensitive safety components from heavy variable frequency drive (VFD) interference.
Field Maintenance Checklist for High-Integrity Systems
- ✅ Signature Backup: Always export the active safety project and CRC values before physically replacing any module.
- ⚙️ Redundancy Alignment: Ensure both primary and secondary controllers run identical firmware during hot-swaps.
- 🔧 Initialization Step: Wipe legacy internal settings on spare parts before adding them to a live safety network.
- 📈 Audit Protocol: Document all safety configuration shifts to satisfy regulatory IEC 61511 compliance procedures.
Expert Insight from Ubest Automation Limited
At Ubest Automation Limited, we emphasize that SIL3 infrastructure requires absolute lifecycle discipline. A "Safety Module Mismatch" is not a minor bug; it is an active protection feature preventing corrupted logic execution. We often witness facilities neglecting formal Management of Change (MOC) guidelines when updating their **PLC** or **DCS** systems. For critical infrastructure, ensure all components undergo exhaustive functional testing after a mismatch resolution to confirm safety loop integrity.
To acquire authentic ABB High Integrity modules or receive certified engineering assistance, please visit Ubest Automation Limited. Our team provides verified hardware to secure your critical safety loops.
Application Scenario: Emergency Overhaul in Refining
During a planned turnaround, a refinery replaced a faulty PM865 controller but kept the original SM811 modules. The system immediately generated a mismatch error and blocked the safety loop from initializing. Technicians realized they had omitted the safety application synchronization step during the controller swap. By applying a full safety project compilation and updating the configuration CRC, they successfully cleared the fault, restoring full SIL3 readiness ahead of schedule.
Technical Frequently Asked Questions
Standard downloads only transfer regular process control logic to the standard memory sectors of the processor. Safety modules require a distinct, cryptographically checked safety application download. This specific action forces the PM865 to rebuild the verification signature and update internal configuration matrices.
While both provide SIL3 protection within the High Integrity framework, they differ in underlying channel capacities and specific bus interface capabilities. Because their low-level electronic identities are distinct, they cannot serve as hot-swappable substitutes for one another inside an active project.
Yes, it can. If optical communication suffers from high attenuation or physical degradation, the controller may receive corrupted signature packets. The system will interpret these distorted packets as an invalid configuration profile. Consequently, it triggers a mismatch fault even if the software setup is entirely correct.
