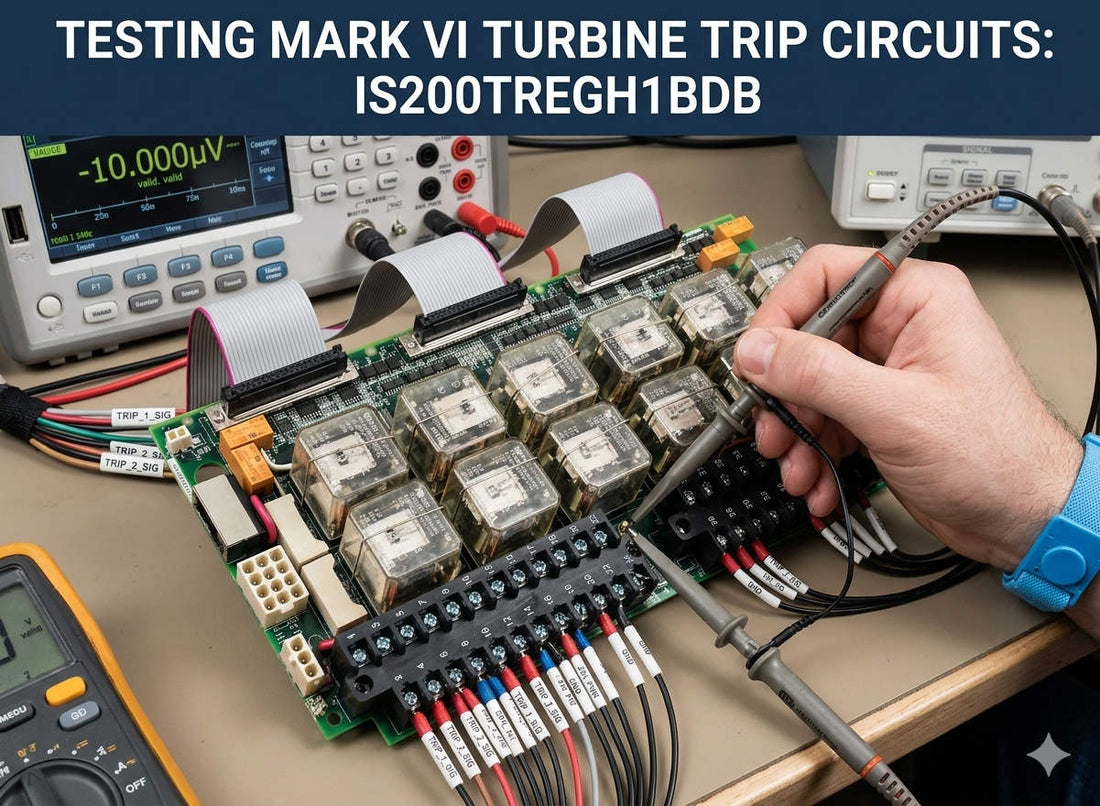

Evaluating Relay Response Delay and Contact Health on the GE IS200TREGH1BDB Board

The GE IS200TREGH1BDB terminal board plays a critical role in turbine protection and emergency trip circuits. Its primary value lies in executing deterministic relay actions required for immediate turbine shutdowns. Within GE EX2100 excitation systems and Mark VI or Mark VIe control architectures, this board interfaces directly with field trip devices. These include lockout relays, breaker coils, and emergency shutdown chains. In power generation plants, minor relay timing deviations can cause nuisance trips or delayed safety actions. Therefore, maintaining stable pickup and dropout characteristics is vital for turbine overspeed protection and voting logic consistency.

Why Milliseconds Matter in Relay Operate Delay

Field measurements on a healthy IS200TREGH1BDB board show a pickup delay of 8–15 ms and a dropout delay of 5–12 ms. However, actual timing values depend on coil supply voltage stability, contact oxidation levels, and ambient temperatures. In critical trip circuits, excessive relay delay severely degrades Sequence of Events (SOE) timestamp accuracy. This degradation misaligns the mechanical trip valve response coordination. In redundant Mark VI trip architectures, mismatched timing across parallel paths also triggers voting diagnostic alarms. Our field data indicates that a pickup delay exceeding 25 ms under 125 VDC control power signals severe relay aging.

Assessing Contact Health of Normally Open and Normally Closed Paths

The Normally Open (NO) and Normally Closed (NC) auxiliary contacts face heavy inductive loads and DC arc stress. Over time, humid turbine enclosures accelerate surface degradation. A relay may continue to actuate mechanically even though its electrical contact quality has degraded significantly. This represents a dangerous hidden failure mode during annual outage testing. A healthy contact exhibits a resistance below 100 mΩ and shows a stable voltage drop under load. Common degradation symptoms include intermittent continuity during vibration and carbonized surfaces. Therefore, engineers should never rely solely on simple continuity tests via standard multimeters.

Environmental Tolerance and Control Cabinet Reliability Factors

The IS200TREGH1BDB terminal board usually operates inside turbine control cabinets where ambient temperatures can exceed 50°C. These boards must withstand severe DC noise from excitation systems and auxiliary equipment vibration. Restricted cabinet cooling airflow and high 125 VDC ripple significantly accelerate component aging. In several plant retrofits, intermittent relay failures did not originate from the board itself. Instead, unstable DC supply quality from aging battery chargers caused the issue. For plants located in coastal regions, periodic inspection for terminal oxidation is crucial to prevent signal attenuation in your control systems.

Transitioning to Dynamic Contact Testing Over Static Verification

Turbine protection loops require dynamic relay timing tests, contact bounce analysis, and coil current waveform verification. Field technicians should utilize specialized relay analyzers and digital oscilloscopes with trigger capture capability. Standard continuity buzzers fail to detect slow contact transfers, micro-arcing, and intermittent bounce under physical vibration. By capturing the complete switching waveform, engineers can pinpoint degradation long before a complete failure occurs. This proactive approach matches the high reliability requirements of modern factory automation networks.

Practical Testing Method for On-Site Field Testing

To verify contact health, isolate the trip circuit according to plant Lockout/Tagout (LOTO) procedures. Next, apply the rated control voltage to the relay coil while monitoring the NO/NC transition timing. Use a high-speed digital input logger to measure pickup time, dropout time, and bounce duration. Healthy contacts consistently exhibit a clean switching waveform with a bounce duration under 3–5 ms. If the contact bounce exceeds this threshold repeatedly, schedule a board replacement during the next maintenance window. This testing ensures your safety loops integrate seamlessly with your wider PLC or DCS infrastructure.

Wiring Standards in High-Vibration Gas Turbine Skids

Gas turbine auxiliary skids and compressor stations subject control components to continuous mechanical stress. Therefore, technicians must avoid unsupported wiring runs near terminal strips and always install proper wire ferrules. Loose connections often mimic relay failures by causing random trip alarms and intermittent feedback loss. During major outages, re-torque all terminal screws to the manufacturer’s specifications. For systems lacking integrated surge suppression, installing external metal oxide varistors (MOVs) across inductive loads is critical. This practice significantly reduces contact erosion and preserves the board’s longevity.

Application Case: Resolving Mismatched Voting Alarms

A combined-cycle power plant experienced intermittent diagnostic voting alarms within its Mark VI turbine control system. Technicians traced the issue to an IS200TREGH1BDB board where one relay exhibited a pickup delay of 28 ms due to surface oxidation. The parallel trip paths were operating at 12 ms, creating a timing mismatch during weekly trip tests. Replacing the aged terminal board restored perfect synchronization, eliminating the alarms and securing the turbine's emergency shutdown response.
