Optimizing Honeywell CC-GAIC21: Remote Range Configuration and Technical Performance Guide

Maximizing Operational Value in Distributed Control Systems

The Honeywell CC-GAIC21 analog input module stands as a cornerstone for high-precision signal acquisition within DCS environments. It serves critical functions in power generation, petrochemical, and pharmaceutical industries where accuracy is non-negotiable. A primary advantage of this module is its support for remote range adjustment via software. Consequently, engineers can modify measurement parameters without physically accessing the hardware, which significantly reduces downtime during sensor replacements or process shifts.

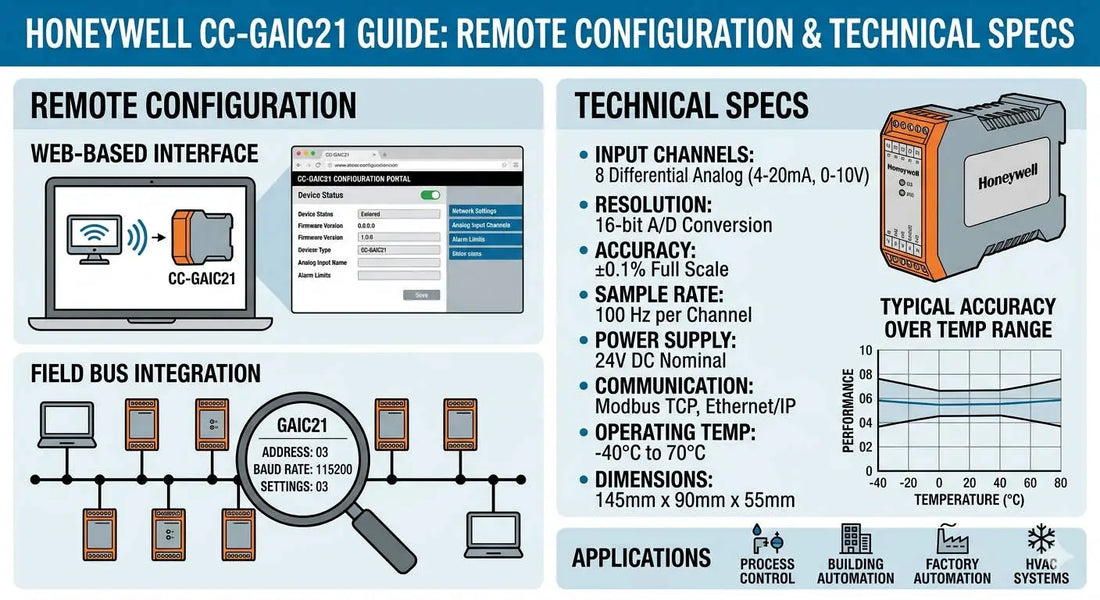

Remote Range Configuration and Software Calibration

Modern industrial automation demands flexibility that traditional hardware-jumper modules cannot provide. The CC-GAIC21 allows for direct input range configuration (such as 4–20 mA or 0–10 V) through Honeywell engineering suites. This "soft calibration" eliminates the risk of human error associated with manual DIP switch settings. Moreover, this feature proves invaluable in hazardous Zone 1 or Zone 2 environments where physical entry is strictly controlled and time-consuming.

Signal Resolution and PID Loop Stability

High-quality factory automation relies on the granularity of data. The CC-GAIC21 typically utilizes 16-bit A/D conversion to ensure meticulous process variable tracking. This high resolution is essential for pharmaceutical dosing and complex refinery blending operations. As a result, the system experiences fewer noise-induced fluctuations. This stability directly improves PID loop performance and extends the lifespan of field actuators by reducing unnecessary movements.

Environmental Resilience and Electrical Isolation

Process plants are often electrically noisy environments. However, the CC-GAIC21 features robust channel-to-channel isolation and industrial-grade EMC protection. These safeguards prevent interference from nearby Variable Frequency Drives (VFDs) or large motors. In addition, these protective measures enhance the long-term reliability of the control systems. To maintain this integrity, engineers must follow strict grounding protocols to prevent common-mode noise from negating the isolation benefits.

Installation Standards for High-Vibration Areas

In high-vibration settings like turbine platforms or compressor stations, wiring stability is critical. We recommend using vibration-resistant ferrules and spring-clamp terminals to prevent loose connections. Furthermore, ensure that cables do not exert direct tension on the module terminals. Using anchor points and cable ties effectively distributes mechanical stress, ensuring the module remains seated and functional under harsh physical conditions.

Strategic Maintenance and Surge Protection

While the CC-GAIC21 is resilient, it often requires external surge suppression in lightning-prone regions. Installing 24V loop protectors can prevent catastrophic I/O failure during electrical transients. Additionally, always perform a full configuration backup before modifying ranges remotely. After software changes, verify the loop with a physical calibrator to ensure the field signal aligns perfectly with the DCS database.

Insights from Ubest Automation Limited

At Ubest Automation Limited, we observed that many commissioning delays stem from a mismatch between transmitter output and software range settings. While the CC-GAIC21 simplifies the adjustment process, it does not replace the need for periodic loop validation. We suggest that procurement teams evaluate IOTA (Input/Output Termination Assembly) compatibility early in the upgrade cycle. Proper planning ensures a seamless migration from legacy systems to modern Honeywell architectures.

For authentic Honeywell modules and expert technical consultation, explore our specialized inventory at Ubest Automation Limited to optimize your plant’s performance.

Technical Implementation Checklist

• ✓ Software Verification: Use Control Builder or Quick Builder for all range modifications.
• ✓ Grounding Protocol: Ground the cable shield at a single point to eliminate ground loops.
• ✓ Mechanical Integrity: Implement strain relief for all field wiring in high-vibration zones.
• ✓ Redundancy Check: Always verify module firmware compatibility before a full system download.

Frequently Asked Questions (FAQ)

Q1: Can I change the input type from 4-20mA to 0-10V while the process is running?
Technically, software allows this change, but it typically requires a module download or a channel reset. Therefore, we recommend performing these adjustments during scheduled maintenance windows to avoid unexpected process trips.

Q2: Does the CC-GAIC21 work with third-party surge protectors?
Yes, it is compatible with most standard 24V industrial surge suppressors. However, ensure the protector’s impedance does not interfere with the signal accuracy, especially for high-precision 16-bit measurements.

Q3: Is this module a direct "hot-swap" replacement for older Honeywell AI cards?
Within the Experion PKS framework, it often is. However, if you are migrating from a TDC 3000 system, you must verify the IOTA pinout and potentially use an interface module. Always check the hardware revision levels before installation.

Industrial Application Scenario

In a recent refinery upgrade, a client utilized the CC-GAIC21 to manage a series of pressure transmitters across a sprawling facility. By leveraging the remote configuration feature, the engineering team adjusted 50+ loops from the control room in under an hour. Consequently, they avoided two days of hazardous area permits and manual field adjustments, finishing the project ahead of schedule and under budget.
