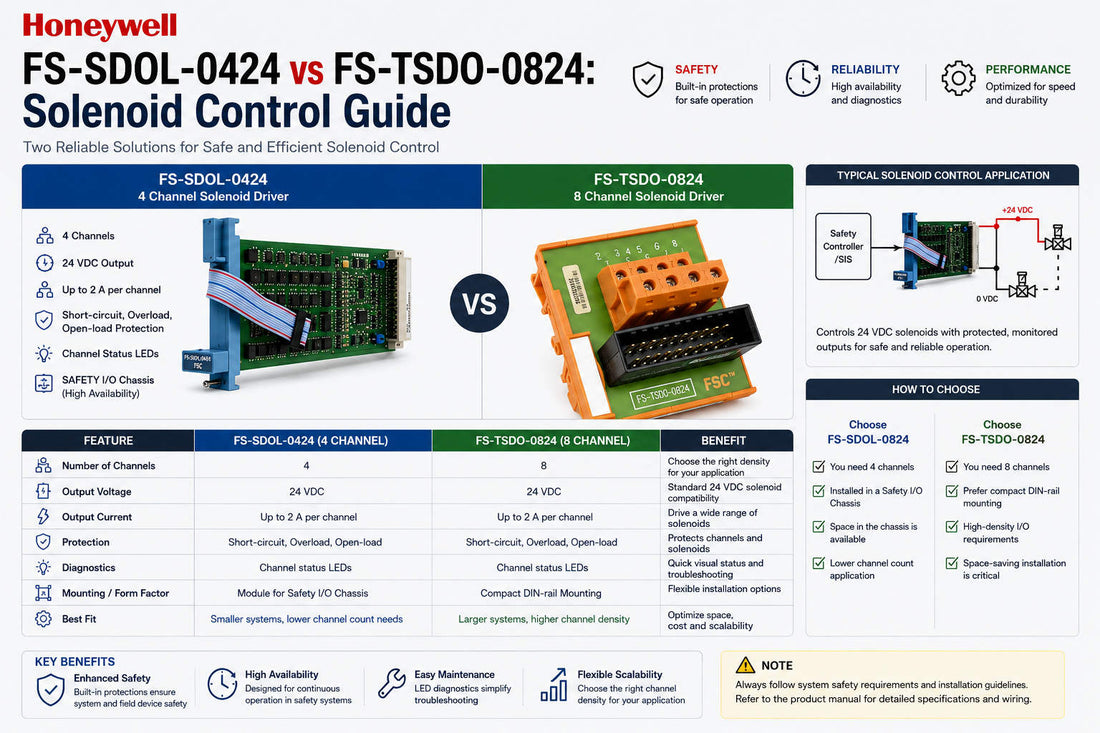

Choosing Between Honeywell FS-TSDO-0824 and FS-SDOL-0424 for Solenoid Control

Driving high-power solenoid valves requires a balance between output current capacity and inductive load reliability. When comparing the FS-TSDO-0824 and the FS-SDOL-0424, the latter stands out for heavy-duty applications. The FS-SDOL-0424 handles inductive surge currents more effectively in demanding industrial automation environments. In sectors like oil and gas or chemical processing, large valves control critical flow paths. Therefore, selecting a robust output module directly impacts system safety and operational uptime.

Output Current Capacity and Inductive Load Management

The decisive factor in module selection is the per-channel current rating for inductive loads. High-power solenoids typically draw significant inrush current when energized. The FS-SDOL-0424 features superior thermal management and higher current tolerance for these large actuators. Conversely, the FS-TSDO-0824 works best for standard digital outputs or low-power indicators. Undersized modules often lead to contact degradation or intermittent valve actuation. As a result, engineers must prioritize current headroom to avoid unplanned downtime in factory automation.

Surge Suppression and Inductive Kickback Protection

Solenoid valves generate back EMF (electromotive force) when they de-energize. The FS-SDOL-0424 integrates stronger internal suppression to withstand these energy spikes effectively. However, the FS-TSDO-0824 requires more stringent external protection when used with inductive components. Poor suppression often damages output transistors or causes false triggering in adjacent channels. This is particularly problematic in dense DCS or PLC cabinets. Maintaining signal integrity ensures that your control systems operate without interference.

Balancing Channel Density with Electrical Robustness

The FS-TSDO-0824 offers higher channel density with eight channels, optimizing space in general-purpose control. In contrast, the FS-SDOL-0424 provides fewer channels but significantly higher per-channel power capability. For high-power valves, fewer robust channels are always preferable to avoid electrical derating. Overloading high-density modules is a common mistake in field installations. Therefore, prioritizing electrical strength over channel count reduces the risk of thermal failure. This approach aligns with IEC 61131 standards for reliable industrial automation hardware.

Field Installation and Thermal Management Best Practices

External flyback protection is not optional for inductive DC coils, regardless of the module's internal specs. Always install flyback diodes or RC snubbers directly across the solenoid coils. In our experience, skipping this step often results in module failure within months. Additionally, use spring-clamp terminals in high-vibration areas to prevent micro-loosening. High-power outputs also generate more heat within the cabinet. You must maintain adequate spacing and avoid placing the FS-SDOL-0424 near heat sources like VFDs or large power supplies.

Application Scenario: Large Actuator Control

A heavy manufacturing facility replaced their standard digital output cards with the FS-SDOL-0424 for their hydraulic solenoid bank. Previously, the high inrush current caused frequent card failures every six months. By switching to the more robust SDOL model and adding proper flyback protection, they eliminated card burnout entirely. The system has now performed flawlessly for over two years, saving the company thousands in hardware and downtime costs.
