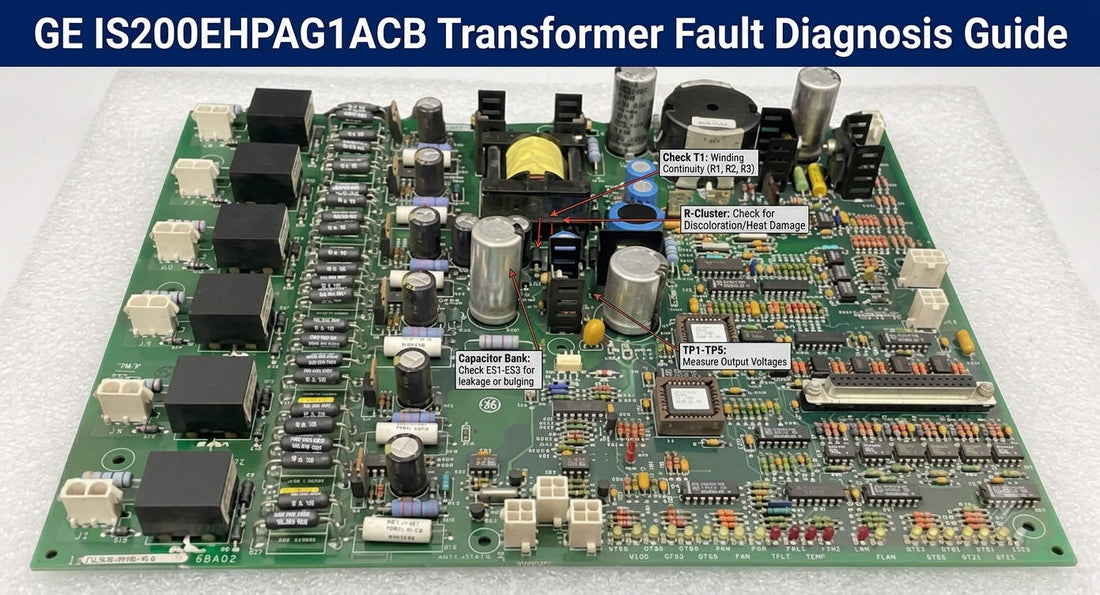

Detecting Interturn Short Circuits in the IS200EHPAG1ACB High-Frequency Transformer
The high-frequency transformer on the GE IS200EHPAG1ACB Exciter Gate Pulse Amplifier Board plays a critical role in signal transmission. It provides pulse isolation within GE EX2100 excitation systems. However, an interturn short circuit inside this transformer can distort gate firing signals. This degradation leads to unstable SCR triggering and reduced insulation performance across your control systems. In power generation and heavy industrial drives, early detection prevents sudden generator trips and costly unplanned downtime.
Evaluating Primary-to-Secondary Waveform Integrity
Analyzing the input and output pulse waveforms with an oscilloscope serves as an effective detection method. A healthy transformer must reproduce gate pulses with minimal distortion to ensure stable operation. When an interturn fault occurs, the pulse amplitude decreases and waveform ringing increases significantly. Consequently, weakened gate pulses fail to turn on SCRs consistently. This failure introduces severe voltage regulation issues into the broader industrial automation network.
Measuring Winding Inductance and Q-Factor Deviations
Interturn shorts reduce the effective number of active turns, which lowers the overall winding inductance. Maintenance teams should utilize an LCR meter or an impedance analyzer to audit these values. You must compare the findings against verified manufacturer reference data or a known-good board. In practice, a deviation exceeding 10% to 15% strongly indicates internal insulation breakdown. Ignoring this deviation increases core losses and accelerates thermal aging in factory automation equipment.
Monitoring Thermal Behavior and Localized Hot Spots
Internal short circuits create localized circulating currents that manifest as intense thermal hot spots. Thermal imaging cameras can identify these temperature anomalies long before hardware alarms trigger. In addition, severe degradation often produces a distinct burnt varnish odor and discolored encapsulation material. Excessive heat also threatens neighboring gate drive components and opt-isolation circuits on the EHPA board. Therefore, thermal tracking represents an essential predictive maintenance step for large-scale DCS environments.
Advanced Ring Tester Analysis and Grounding Protocols
A ring tester offers excellent sensitivity when traditional DC resistance checks fail to detect a fault. Healthy windings produce multiple uniform oscillation cycles, whereas a shorted winding causes rapid waveform damping. Moreover, engineers must follow single-point grounding standards, such as IEEE and API 670 guidelines, to prevent signal drift. Mismatched configurations can skew pulse timing and cause communication errors between your excitation system and primary controllers.
Recommended Diagnostic Sequence
- Conduct a visual inspection for component discoloration or burnt varnish odors.
- Perform an infrared thermal scan during live excitation system operations.
- Verify gate pulse amplitude and rise times using a calibrated oscilloscope.
- Measure precise winding inductance utilizing an industrial-grade LCR meter.
- Execute a ring test to observe oscillation damping patterns on the transformer.
- Compare data points against a verified spare IS200EHPAG1ACB board.
Expert Guidance from Ubest Automation Limited
At Ubest Automation Limited, our field experience shows that standard multimeters often miss early-stage transformer degradation. Because a short may only affect two or three turns, the total DC resistance remains virtually unchanged. Therefore, relying solely on resistance checks creates a false sense of security. We advise power plant engineers to combine waveform analysis with inductance checks during planned outages. This comprehensive approach ensures your excitation loops remain reliable under full load conditions.
To acquire genuine GE boards or to consult with our technical support team, please visit the official Ubest Automation Limited platform. We provide high-availability spare parts to minimize your operational downtime.
Application Scenario: Excitation Loop Remediation
A gas turbine power plant experienced intermittent firing alarms within its GE EX2100 excitation system. Standard multimeter tests indicated normal resistance across the EHPA board components. However, an oscilloscope test revealed a 25% reduction in gate pulse amplitude originating from the high-frequency transformer. After replacing the degraded board with a fully verified unit, pulse integrity returned to optimal levels, preventing a costly unscheduled generator trip.
Technical Frequently Asked Questions
A minor short involving only a tiny fraction of the total winding alters total electrical resistance minutely. Standard instruments lack the resolution to flag this variance under static conditions. Only dynamic tests, such as high-frequency wave analysis or ring testing, expose the hidden insulation breakdown.
GE frequently updated isolation tolerances and noise shielding across different revision levels. You must verify the exact functional revision suffix against your system configuration records before installation. Swapping mismatched versions can introduce unexpected pulse timing discrepancies into your drive network.
Yes, abnormal voltage stress from a damaged snubber network or SCR channel can backfeed into the transformer. When a failure occurs, always inspect the entire downstream triggering circuit to ensure a secondary fault does not compromise your replacement board.
