Simulating MPU Sensor Open Circuits in Bently Nevada 3500/53 Systems Safely
The Bently Nevada 3500/53 Overspeed Detection System delivers independent overspeed protection for critical rotating assets. These include utility steam turbines, large gas turbines, and high-pressure process compressors. In sectors like oil and gas or power generation, this hardware acts as the final safety layer. However, validating channel diagnostics during maintenance presents unique operational challenges. Engineers must simulate a sensor open circuit without causing an accidental trip or a costly plant shutdown. Mastering this methodology is essential for protecting both personnel and overall process availability.
Understanding Sensor Failure Detection and System Trip Logic
The 3500/53 module continuously monitors the integrity of magnetic pickup (MPU) sensor input loops. The system correctly interprets a broken wire or open circuit as a signal loss. From an operations perspective, this diagnostic asset prevents dangerous high-speed runs with inactive monitoring. However, a detected fault can still initiate protective actions depending on your configuration. Therefore, engineers must carefully review the active relay matrix before initiating any testing. This precaution prevents unwanted integration errors with broader industrial automation networks.
Navigating Triple Modular Redundancy and Voting Configurations
Most critical turbine applications utilize a Triple Modular Redundancy (TMR) architecture with 2oo3 (Two-Out-Of-Three) voting. In a properly configured system, one channel reporting an open circuit only generates an internal alarm. The remaining two operational channels continue tracking actual shaft speed to validate machine safety. Consequently, you can safely perform maintenance on one speed loop without stopping production. This approach increases equipment availability while maintaining strict functional safety. Moreover, it seamlessly links raw sensor diagnostics with upper-level DCS environments.
Step-by-Step Method for Safe Open-Circuit Simulation

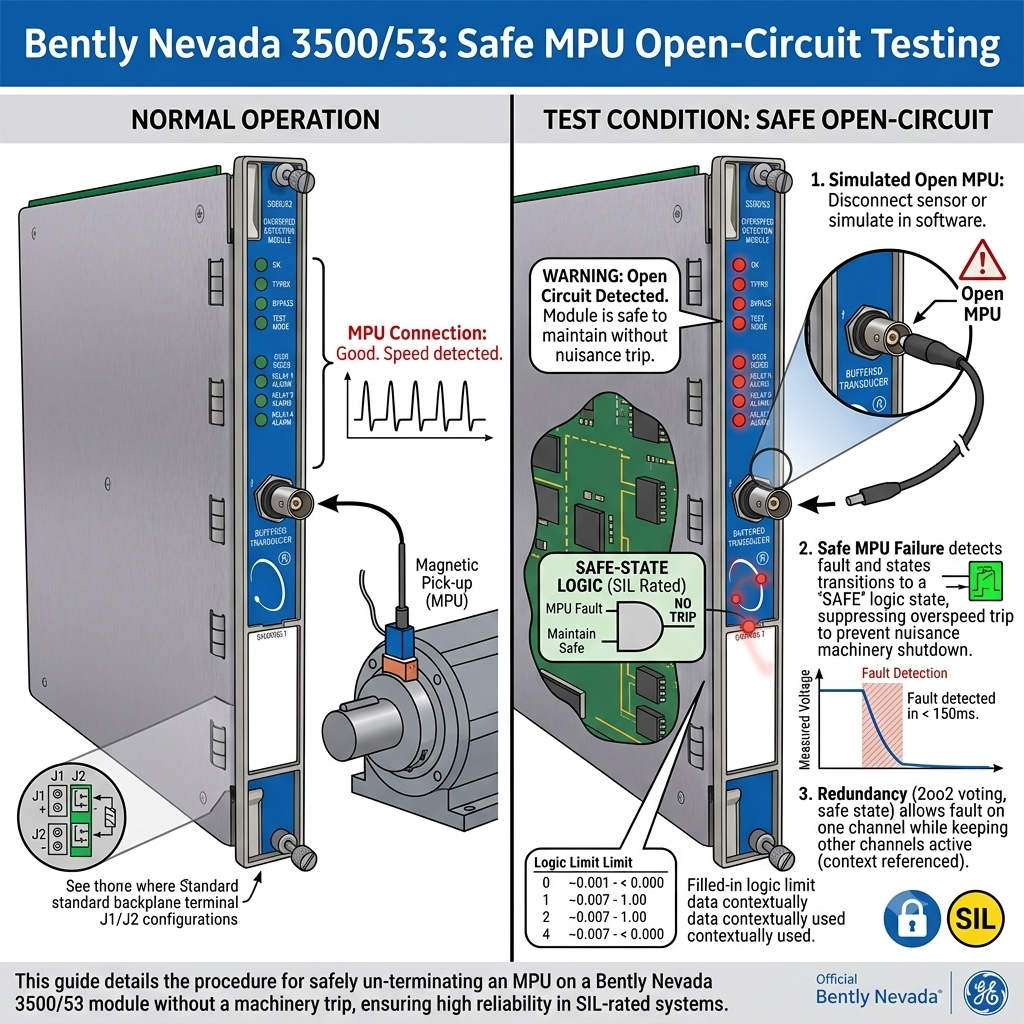

Simulating an open circuit at the sensor head fails to verify field cable routing integrity. Therefore, field experience dictates performing the test directly at the marshalling terminal or junction panel. First, place the target overspeed channel into the approved maintenance or bypass mode. Second, verify that all associated shutdown relays are temporarily isolated. Third, disconnect a single MPU signal pair at the terminal block. Finally, observe the diagnostic responses on the 3500 configuration utility before reconnecting the loop safely.
Installation & Maintenance Best Practices
- ✅ Logic Verification: Review the cause-and-effect matrix before disconnecting any field wiring.
- ⚙️ Vibration Resistance: Use spring-clamp terminals on skids to prevent accidental open circuits.
- 🔧 Transient Protection: Install external surge suppressors for MPU cables routed outdoors.
- 📈 Data Recording: Document diagnostic response times to fulfill compliance and proof-testing criteria.
Expert Insight from Ubest Automation Limited
At Ubest Automation Limited, we emphasize that overspeed protection is a non-negotiable safety element. Relying blindly on standard logic settings without checking the actual site configurations can lead to sudden trips. We often encounter plants that confuse a simple alarm setting with an interlocked trip command. Therefore, we strongly advocate for rigorous proof testing that aligns with API 670 standards. A meticulous testing approach ensures your control systems remain both safe and stable.
To acquire genuine Bently Nevada modules or to read our latest technical briefs, please visit Ubest Automation Limited. Our team delivers the hardware and analytical support required to protect your facility.
Application Scenario: Safe Validation on a Gas Turbine
A power generation facility needed to perform routine validation on a Bently Nevada 3500/53 rack. The system monitored a critical gas turbine using a 2oo3 voting layout. By isolating the relay outputs and disconnecting the lead wire at the cabinet terminal, the engineering team successfully triggered the channel's open-circuit fault lamp. The turbine continued running smoothly on the remaining two sensors, validating both diagnostic alarms and system stability.
Frequently Asked Questions
Disconnecting the wire at the sensor body misses potential issues along the intermediate field cable run. Testing from the marshalling cabinet ensures you evaluate the complete loop, including all terminal blocks and junction boxes. This approach provides a much more accurate assessment of the entire measurement circuit.
Activating the maintenance bypass tells the system's internal processor to disregard input status changes for that specific channel. As a result, the card stops sending trip commands to the output relays for that slot. This feature allows technicians to pull wires or swap components without interrupting operations.
You should plan an upgrade if your existing module faces limited spare parts availability or fails proof testing. Furthermore, a modernization project on the primary machine controller often requires updating the protection rack. This alignment ensures seamless communications across all modern factory automation protocols.
