Logic Configuration Limitations of Bently Nevada 3500/32M and 3500/33 Relay Modules in Interlock Trip Applications
In critical machinery protection systems, relay outputs serve as the definitive boundary between managed risk and catastrophic failure. The Bently Nevada 3500/32M (149986-02) 4-Channel Relay Module and the 3500/33 16-Channel Relay Module actively bridge monitoring hardware with field action. They convert internal vibration, speed, and position alarms into physical contact operations. These operations trigger critical emergency shutdowns or annunciator loops across the plant floor. However, severe logic execution limits exist within these modules. Misunderstanding these restrictions can severely compromise Safety Integrity Level (SIL) architectures in modern industrial automation installations.
Evaluating Native OR Logic vs Restricted Complex AND Formulations
A prevalent misconception in the field assumes that machinery protection racks function exactly like small programmable controllers. In reality, Bently Nevada relay modules support straightforward, alarm-driven activation paths through the 3500 Rack Configuration Software. You can easily assign multiple alarm variables to a single hardware relay channel. Consequently, the relay switches state when any single assigned condition goes into active fault. This behavior natively provides Boolean OR-type logic. For example, a single trip valve can actuate if either bearing vibration or axial displacement exceeds predefined safety limits.
However, implementing true multi-variable AND combinations within the rack remains exceptionally limited. These modules lack a programmable logic engine to execute sophisticated conditional math. Therefore, a logic matrix requiring a high vibration amplitude AND low auxiliary oil pressure cannot reside inside the module alone. To implement multi-variable dependencies safely, you must export the individual channel statuses. The system must process those calculations within an external safety PLC or host DCS platform. This structural separation prevents processing bottlenecks within the primary protection machinery loop.
Analyzing Channel Density and Logic Granularity Performance

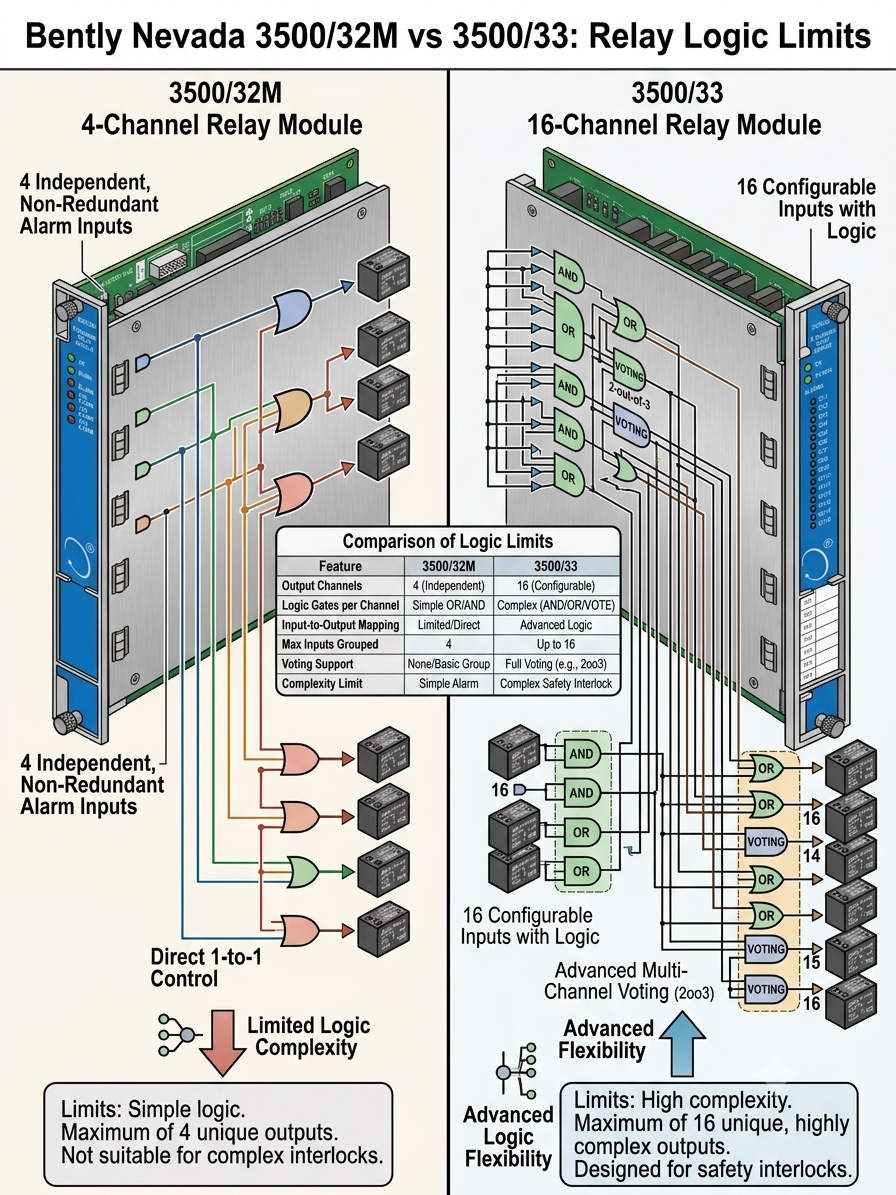

The hardware architecture variations between the two components significantly alter your total logic mapping flexibility. The 3500/32M offers four independent, heavily isolated relay channels. This low density minimizes interaction risks, making it easier to validate safety configurations during Factory Acceptance Testing (FAT). Conversely, the 3500/33 introduces 16 high-density channels to drive multiple auxiliary indicators. This allows plants to isolate non-critical warnings from direct trip actions. However, higher channel counts do not equal improved computing intelligence. Both modules still rely entirely on the same base alarm signals generated by individual monitor cards.
Response Time Realities and Machinery Protection Hazards
Relay response speeds dictate how safely a system mitigates severe mechanical issues. When an input channel flags a dangerous deviation, the total execution time depends on processing cycles and relay physics. For high-speed turbomachinery, unnecessary delays can lead to disastrous consequences. Plant staff sometimes configure artificial time delays to eliminate nuisance trips. However, excessive filtering poses massive risks during sudden asset failures like oil whirl or rotor instability. Therefore, system design must always prioritize strict adherence to original machinery OEM benchmarks over short-term operating comfort.
Field Deployment Guidelines for Relay Interlocks
- ✅ External Logic Solvers: Execute all complex 2-out-of-3 voting strategies inside a dedicated safety-certified SIS or DCS platform.
- ⚙️ Contact Protection: Integrate RC snubbers or flyback diodes across field inductive elements to prevent fatal contact welding.
- 🔧 Mechanical Securing: Terminate all field cabling with high-quality ferrules into spring-clamp blocks to survive high-vibration skids.
- 📈 Grounding Protocols: Enforce strict single-point grounding rules for shields to completely eliminate data drift issues.
Strategic Integration Insights from Ubest Automation Limited
At Ubest Automation Limited, our decade of field experience indicates that logic topology design errors cause numerous industrial safety incidents. While both the 3500/32M and 3500/33 offer robust physical switching, they are fundamentally executors of native monitoring data, not programmable brains. Attempting to build multi-tier interlocks directly within the rack usually complicates commissioning. We recommend strictly implementing API 670 guidelines. This involves sending clean individual signals to a host safety system to form a dependable factory automation architecture.
To source verified hardware components and access specialized lifecycle technical consulting, please visit the official web portal of Ubest Automation Limited. Our engineers provide the direct support necessary to stabilize your plant networks.
Application Scenario: Large Compressor Protection Upgrade
An international refinery optimized its critical hydrogen compressor protection loops by evaluating internal rack capabilities. The design team routed direct, time-critical danger signals through a 3500/32M module to the emergency shutdown valve. Simultaneously, they utilized a 16-channel 3500/33 module to send descriptive maintenance warnings and bypass indications to the plant DCS. This smart combination separated direct emergency actions from supervisory reporting. As a result, the plant achieved full safety compliance while entirely avoiding false shutdowns.
