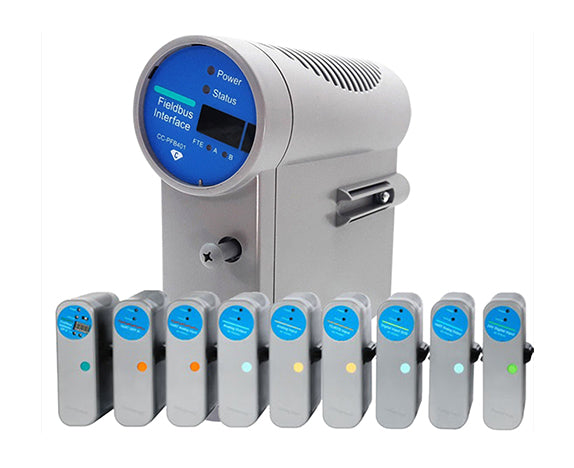

Introduction to the Honeywell C300 Controller

Introduction to the Honeywell C300 Controller

Introduction to the Honeywell C300 Controller

The Honeywell C300 controller, part of the C series, is a robust and highly functional controller widely used in various automation processes. Upon powering up, the controller automatically executes a series of tasks that ensure its proper functionality and readiness for operation. This article outlines the key steps involved in the startup and self-check (POST) process of the Honeywell C300 controller.

Power-On Self-Test (POST)

The power-on self-test (POST) is the initial phase of the C300 controller's startup process, designed to verify the presence of the controller and test the integrity of its hardware. When the C300 controller is inserted into a powered IOTA backplane, the power LED lights up, indicating the start of the controller’s boot sequence, which includes loading the pre-installed firmware from its flash memory.

LED Indicators and Display Feedback

During the startup, the C300 controller performs several checks and provides visual feedback through its LED indicators and display screen:

  1. LED Indicators: Initially, all LED indicators on the controller momentarily display all colors (red, green, orange) before remaining red until the self-test completes.
  2. Display Screen: The controller’s display screen will show a series of horizontal and vertical lines, eventually fully illuminating. The screen also displays progress codes (Tnnn), where 'nnn' represents the current test being performed during the self-test phase.

Handling Errors During POST

If an error occurs during the self-test, the process halts, and the controller's display shows a specific fault code (Tnnn). To address this issue, the controller can be restarted to repeat the self-test. If the error persists, replacing the controller with a new unit is recommended.

Transition to Application Mode

Upon successful completion of the self-test, the C300 controller determines whether to enter application mode or boot mode. If a valid application image is available, the controller transitions into application mode, ready to execute its designated functions.

BootP Server Interaction

During the boot process, the controller interacts with a BootP server to obtain necessary configurations:

  1. Waiting for BootP Response: The display screen shows "-bp-" as the controller waits for the BootP server to provide its IP address and clock server IP address. If no response is received within two minutes, a timeout message is displayed.
  2. Clock Source Configuration: Once the BootP server responds, the display shows "-TS-" indicating that the controller is awaiting a configured clock source response. If the initial clock source is unavailable, the controller attempts to connect to an alternate source.

Redundancy and Operational Status

After obtaining a valid IP address, a redundant C300 controller establishes master-slave communication with its counterpart. The display alternates between showing the Device Index, redundancy status, and operational status, providing clear indicators of the controller’s current state.

Conclusion

The Honeywell C300 controller’s startup and self-test processes are critical for ensuring its reliability and proper functioning in automation systems. By following these detailed steps, the controller verifies its hardware integrity, obtains necessary configurations, and transitions into a fully operational state, ready to manage complex automation tasks effectively.
