Integrating the Honeywell FC-RUSIO-3224 in Safety Manager R150 Systems
Adding the FC-RUSIO-3224 remote universal safety I/O module to a Honeywell Safety Manager R150 environment requires careful planning. Successful integration depends on firmware support and precise system architecture settings. Many engineers assume this process is "plug-and-play," but compatibility often varies at the controller and library levels. In high-stakes industries like oil and gas, verifying the Safety Builder project library version is critical. Failure to align these components can result in the module being invisible to the hardware catalog during configuration.
Strategic Value for Modern Control Systems

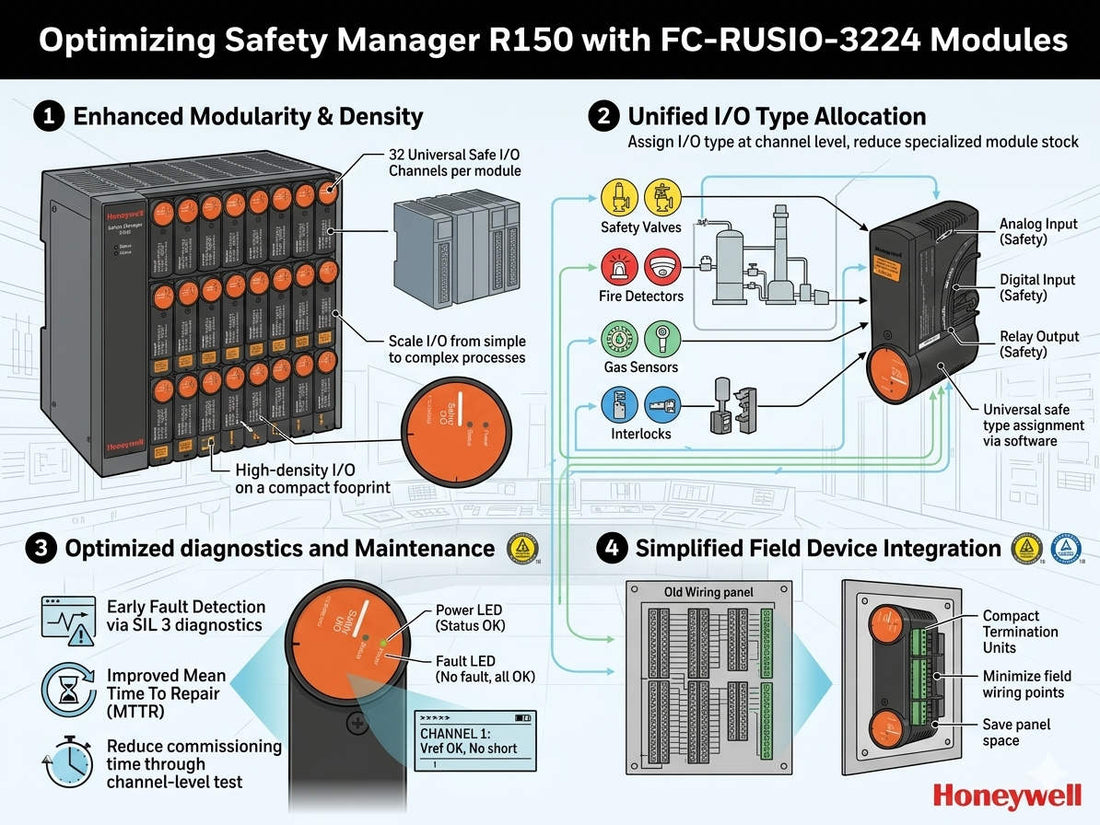

The FC-RUSIO-3224 optimizes safety architectures by offering high-density, flexible I/O configurations. By reducing the cabinet footprint, it simplifies complex factory automation layouts. This module allows operators to place safety-certified I/O closer to field process units. Consequently, it minimizes long field wiring runs and improves overall signal reliability. For industrial automation, this translates to significant reductions in both installation time and material costs. Moreover, distributed architectures enhance the scalability of modern safety instrumented functions (SIF).
Communication Integration and Firmware Consistency
The module communicates over the Safety Manager's safe network backbone. Therefore, the R150 firmware must fully support the specific RUSIO communication stack revision. If the versions mismatch, the device may remain in a "not commissioned" state indefinitely. Engineers should always consult the R150 Release Notes for compatible firmware versions before starting an upgrade. Additionally, the updated RUSIO device library must exist within the Safety Builder environment. Without the correct package, manual integration remains unsupported by Honeywell's engineering tools.
Analyzing Safety Response and Latency in DCS Loops
Remote I/O modules inevitably contribute to the overall Safety Instrumented Function response time. Adding the FC-RUSIO-3224 introduces communication latency compared to local I/O. While this latency usually falls within SIL limits, engineers must include it in IEC 61511 loop calculations. For high-speed shutdown loops, such as Burner Management Systems (BMS), avoiding excessive network hops is vital. Furthermore, higher channel density increases heat dissipation within the node. In ambient temperatures exceeding 45°C, you may need forced ventilation to prevent component derating.
Installation Strategies for Network and Physical Stability
Network topology significantly impacts the stability of RUSIO nodes, which often deploy over fiber optics. We recommend using a redundant ring topology to eliminate single points of failure in the DCS loop. Improper switch configurations frequently cause intermittent communication losses in the field. Additionally, the FC-RUSIO-3224 requires external surge protection devices (SPD) in outdoor refinery environments. Poor grounding is a common culprit for false trips, often misdiagnosed as hardware failure. Always use DIN rail locking clips in high-vibration areas like compressor skids.
Technical Checklist for FC-RUSIO-3224 Deployment
- ✅ Library Audit: Confirm Safety Builder includes the latest RUSIO device package.
- ⚙️ Network Redundancy: Implement a ring topology to ensure high availability.
- 🔧 Thermal Management: Install forced air cooling for high-density 3224 nodes in hot zones.
- 📈 Latency Calculation: Verify the extra communication delay satisfies SIF requirements per IEC 61511.
Expert Insights from Ubest Automation Limited
At Ubest Automation Limited, we have seen projects stall because engineers overlooked the Software Compatibility Matrix. While the FC-RUSIO-3224 offers incredible flexibility, it is not a "stand-alone" upgrade. It requires deep alignment between the controller firmware and the engineering workstation. We advise clients to prioritize network stability over I/O density. A densely packed rack that suffers from communication drops is a liability, not an asset. Always validate your grounding scheme before commissioning.
To source high-performance Honeywell modules or receive technical integration support, please visit Ubest Automation Limited. Our experts are ready to help you optimize your control systems.
Application Scenario: Remote Gas Plant Safety
In a recent chemical plant project, the FC-RUSIO-3224 was deployed to monitor distributed valve positions 500 meters from the main rack. By using fiber-optic links and a ring topology, the plant reduced wiring costs by 40%. The R150 system allowed for seamless scaling, provided the Safety Builder libraries were updated prior to the commissioning phase. This setup ensured SIL3 compliance while maintaining a low hardware footprint.
Engineering Frequently Asked Questions
This usually happens because the Safety Builder software lacks the specific device library for that hardware revision. You must either upgrade your engineering tool to a later R150 sub-release or manually import the correct Honeywell device package to recognize the module.
Yes, you can mix local and remote I/O within a single Safety Instrumented Function. However, you must account for the different scan times and communication delays. Ensure your SIL verification software reflects the cumulative latency of the remote network leg.
Common indicators include the module failing to initialize, intermittent "Communication Lost" alarms, or a persistent "Not Commissioned" status in the diagnostic buffer. Always verify that the controller firmware supports the RUSIO's internal firmware version before assuming hardware failure.
