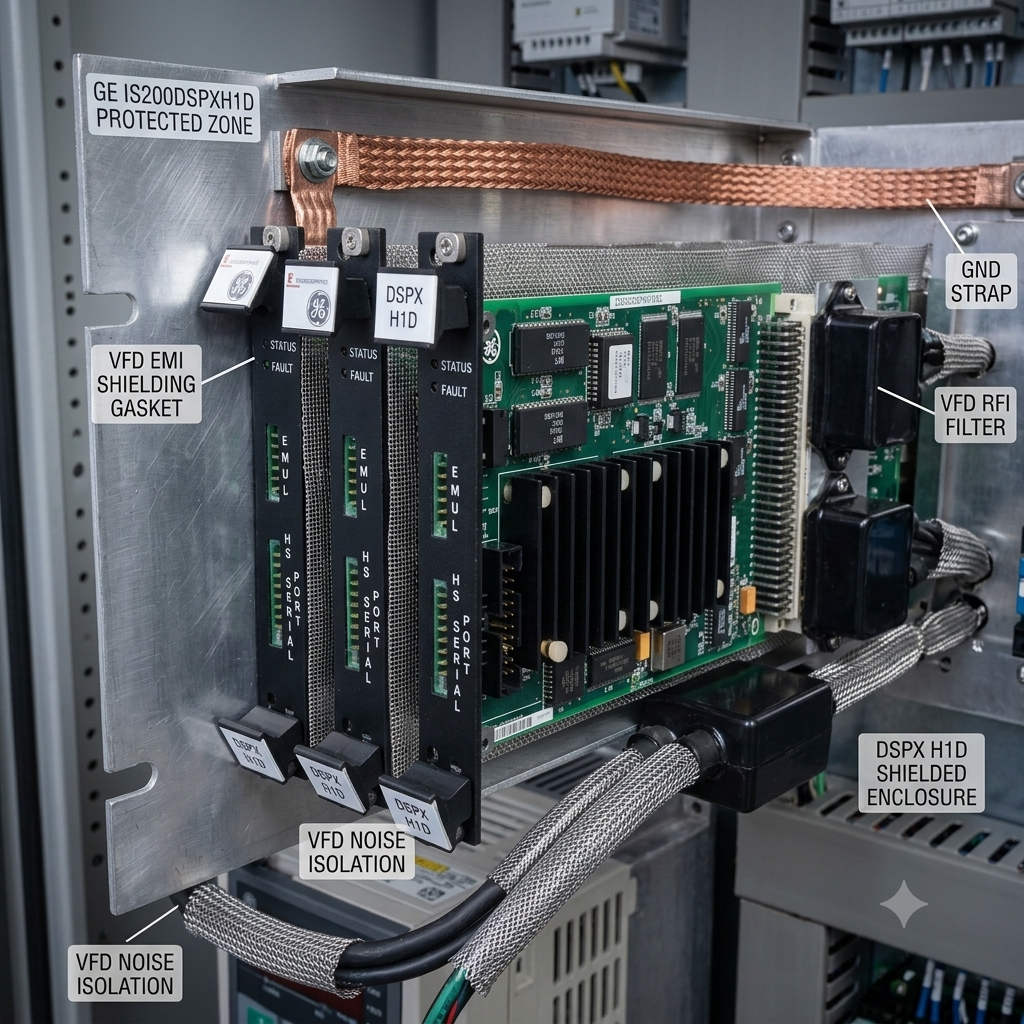

Protecting the GE IS200DSPXH1D Board from High-Power VFD Interference
The GE IS200DSPXH1D Digital Signal Processor Board drives critical control algorithms within EX2100 excitation systems. Its primary value lies in processing real-time feedback data to maintain power conversion stability. In heavy manufacturing, plants rely heavily on this board for continuous operation. However, installing high-power Variable Frequency Drives (VFDs) too close can compromise signal integrity. This proximity introduces severe electromagnetic interference (EMI), causing unexpected system trips. Therefore, safeguarding this component is a core requirement in modern industrial automation.
Understanding High-Speed DSP Sensitivity to VFD Noise
The IS200DSPXH1D operates using high-frequency digital circuits that manage low-level feedback signals. When a nearby VFD switches IGBTs at high carrier frequencies, it generates massive broadband noise. This electromagnetic emission extends well into the megahertz range. Moreover, these high-frequency fields can easily couple into sensitive backplanes or communication cables. As a result, the signal-to-noise ratio drops significantly. This degradation often leads to inaccurate sensor readings and unstable performance in complex control systems.
How VFD Radiation Penetrates Factory Enclosures
Many engineers assume that standard metal enclosures completely block external electromagnetic noise. In reality, industrial cabinets behave like imperfect Faraday cages under heavy field conditions. High-frequency emissions find easy entry through ventilation openings, cable penetrations, and door seams. At high frequencies, small structural gaps act like slot antennas. Consequently, fast switching transients radiate straight into the control electronics. This penetration causes data checksum errors and analog signal drift within your factory automation network.
Managing Common-Mode Currents and Ground Potential Risks
Modern variable speed drives generate extremely fast voltage transitions that exceed several thousand volts per microsecond. These transitions create strong common-mode currents across grounding structures. If the IS200DSPXH1D shares a ground path with a large VFD installation, local ground potential rises. This electrical shift introduces noise directly into your core reference circuits. Over time, repeated exposure degrades input conditioning components and isolation barriers. Therefore, keeping power grounds separate from sensitive PLC or DCS references is vital.
Identifying Multiple EMI Coupling Mechanisms in the Field
Field investigations prove that VFD interference enters control cabinets through multiple paths simultaneously. Long, unshielded motor cables act as transmitting antennas, broadcasting radiated noise to adjacent gear. Furthermore, closely routed power and signal lines create parasitic capacitance. This proximity injects unwanted currents via capacitive and inductive coupling. Most industrial troubleshooting cases involve a combination of both conducted and radiated emissions. Managing these overlapping pathways requires a structured approach to cable management and physical segregation.
Engineering Checklist for Controlling VFD Emissions
- ✅ Physical Segregation: Separate VFD drive cabinets from excitation control enclosures into distinct lineup sections.
- ⚙️ Perpendicular Routing: Cross power lines and sensitive signal wires at 90-degree angles exclusively.
- 🔧 360-Degree Bonding: Use EMC-rated cable glands to establish low-impedance ground paths for all shields.
- 📈 Transient Mitigation: Install output dv/dt or sine-wave filters on drives operating with long cable runs.
Expert Perspective from Ubest Automation Limited
At Ubest Automation Limited, we consistently find that mystery control trips track back to poor cabinet layout rather than defective boards. The IS200DSPXH1D is a high-performance processing unit that demands a clean electromagnetic environment. Trying to fix noise issues with software filtering after commissioning rarely succeeds. Instead, we urge plants to follow strict IEC 61800 EMC guidelines during initial design. Mitigating noise at the source ensures the long-term reliability of your heavy control hardware.
To source genuine GE EX2100 control components and access technical application support, please visit Ubest Automation Limited. Our team delivers the hardware and insight to secure your infrastructure.
Solution Scenario: Resolving Nuisance Trips in a Power Plant
A generation facility experienced recurring EX2100 communication alarms whenever a newly installed 500 kW induced-draft fan VFD accelerated. Technicians initially blamed the processing hardware. However, a site audit revealed that the VFD motor cables ran parallel to the processor’s feedback lines. Relocating the signal cables into shielded conduits and applying 360-degree grounding at the gland plates completely eliminated the alarms, proving the value of proper noise isolation.
Engineering Frequently Asked Questions
We recommend utilizing a portable spectrum analyzer or a high-bandwidth oscilloscope equipped with proper differential probes. Measure the noise floor on your analog feedback loops while the drive cycles through various load levels. If you observe voltage spikes matching the drive’s switching frequency, you have confirmed an active cross-talk issue.
Pigtail connections add significant RF impedance due to their narrow structure and inherent inductance. At high frequencies, this high impedance renders the shield ineffective, allowing radiated emissions to bypass it entirely. Using 360-degree bonding clamps ensures a low-impedance path to ground across all noise frequencies.
Firmware updates can optimize digital filtering, but they cannot eliminate physical electrical corruption of analog feedback loops. If high-frequency radiation distorts the incoming signal before it reaches the converter, the processor will calculate based on bad data. True protection requires physical isolation and shielding.
