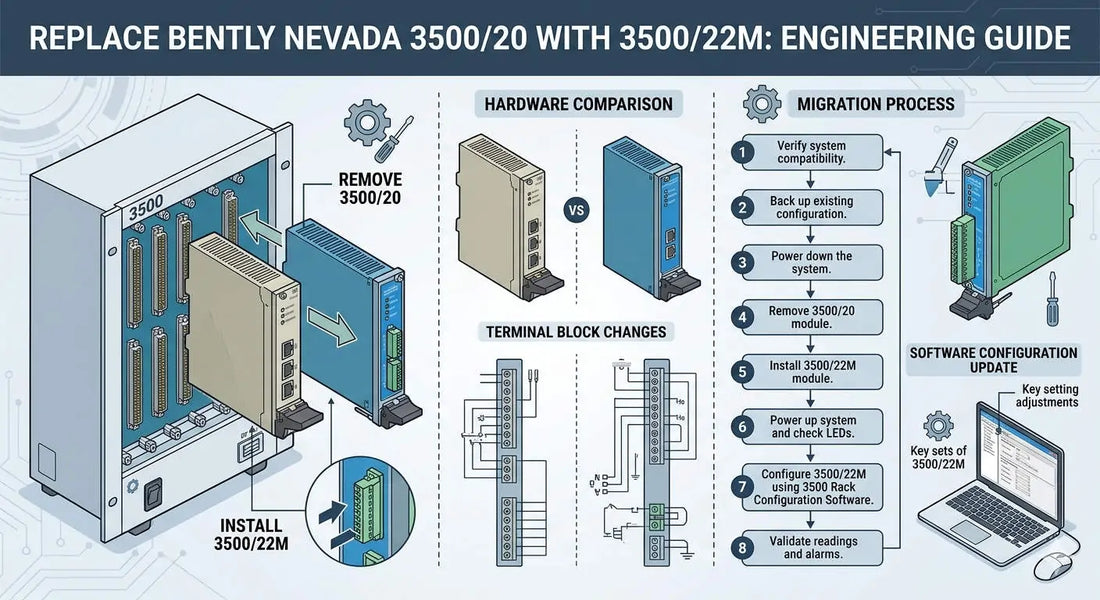

Replacing Bently Nevada 3500/20 with 3500/22M: A Field Engineering Guide
From a technical perspective, you can replace the Bently Nevada 3500/20 Rack Interface Module (RIM) with the 3500/22M Transient Data Interface (TDI). However, this transition is not a simple "plug-and-play" task. While the modules share physical similarities, the 3500/22M introduces a more advanced communication architecture. Therefore, engineers must validate system compatibility before performing the swap. In industries like oil and gas, this upgrade often marks a shift toward high-resolution condition monitoring.
The Core Advantages of Upgrading to the 3500/22M TDI
The 3500/22M TDI acts as the primary gateway for the entire 3500 rack. Unlike the legacy 3500/20, the 22M consolidates interface and communication functions into one unit. This consolidation significantly reduces hardware complexity. Furthermore, the 22M excels at high-resolution transient data capture. This capability is essential for diagnosing intermittent mechanical faults. Consequently, plants can identify shaft instabilities or bearing failures before they lead to catastrophic equipment damage.
Transitioning from Serial to Ethernet-Based Communication
The legacy 3500/20 typically relies on older, proprietary serial communication protocols. In contrast, the 3500/22M supports modern Ethernet-based standards like Modbus TCP/IP and OPC integration. This shift allows for seamless connectivity with modern DCS and SCADA systems. Moreover, it eliminates the need for external protocol converters, which often act as failure points. By using the 22M, you ensure that your vibration monitoring data is easily accessible across the entire plant network.
Unlocking Predictive Maintenance with Transient Data Capture
One major limitation of the 3500/20 is its focus on steady-state data. The 3500/22M, however, includes built-in high-speed waveform capture features. This is critical for rotating machinery like turbines and large compressors. Many mechanical issues, such as oil whirl or rotor rubs, only appear during transient states like startup or coast-down. Consequently, the 22M enables a predictive maintenance strategy, allowing teams to schedule repairs based on actual machine health.
Addressing Firmware Requirements and Rack Compatibility
Compatibility is the most common hurdle during a 20 to 22M upgrade. The 3500/22M requires specific rack configuration software and updated backplane firmware. If your existing rack hardware is outdated, the system may fail to recognize the new module. Many onsite issues occur where a direct swap leads to communication blackouts due to legacy EEPROM settings. Therefore, you must perform a comprehensive system audit before installation to ensure all components are ready for the modern TDI.
Engineering Checklist for 3500/22M Integration
- ✅ Firmware Audit: Verify that the rack backplane and power supply support the 22M TDI revision.
- ⚙️ Software Update: Ensure your Rack Configuration Software is compatible with Transient Data Interface modules.
- 🔧 Network Security: Implement VLAN isolation to protect the monitoring system from external traffic.
- 📈 Grounding Verification: Confirm shielded cables are grounded at a single point to minimize interference.
Expert Insight from Ubest Automation Limited
At Ubest Automation Limited, we view the 3500/22M as a necessary step for any facility pursuing factory automation excellence. While the 3500/20 served the industry well, its lack of high-speed data limits modern analytics. We caution users against treating this as a routine spare part replacement; treat it as a system-level migration. When executed correctly, the 22M provides the visibility required to extend the life of your critical assets.
For genuine Bently Nevada components and expert technical support, visit Ubest Automation Limited. Our team helps you navigate complex hardware transitions to keep your operations stable.
Application Scenario: Turbo-Compressor Diagnostics
A petrochemical plant upgraded a 3500 rack from a 3500/20 to a 3500/22M. During a scheduled startup, the 22M captured a transient vibration spike that the old module would have missed. Analysts used the waveform to identify a rotor imbalance. By addressing the issue early, the plant avoided an emergency shutdown, saving an estimated $200,000 in lost production.
Engineering Frequently Asked Questions
No, you cannot directly import the old file. You must create a new configuration using the Bently Nevada Rack Configuration Software specifically for the TDI module. While you can manually copy setpoints, the communication and sampling parameters are entirely different.
The most likely cause is a firmware mismatch between the new 22M and the rack backplane. The 22M requires a modern rack environment. Check the "System Event List" in the software to identify if the module is being rejected due to "Incompatible Hardware" or "Firmware Revision" errors.
The core monitoring and transient capture capabilities are identical. However, versions with front-facing USB or Ethernet ports make field diagnostics easier. They allow technicians to connect a laptop directly to the rack without needing to access rear cabling or the plant network.
