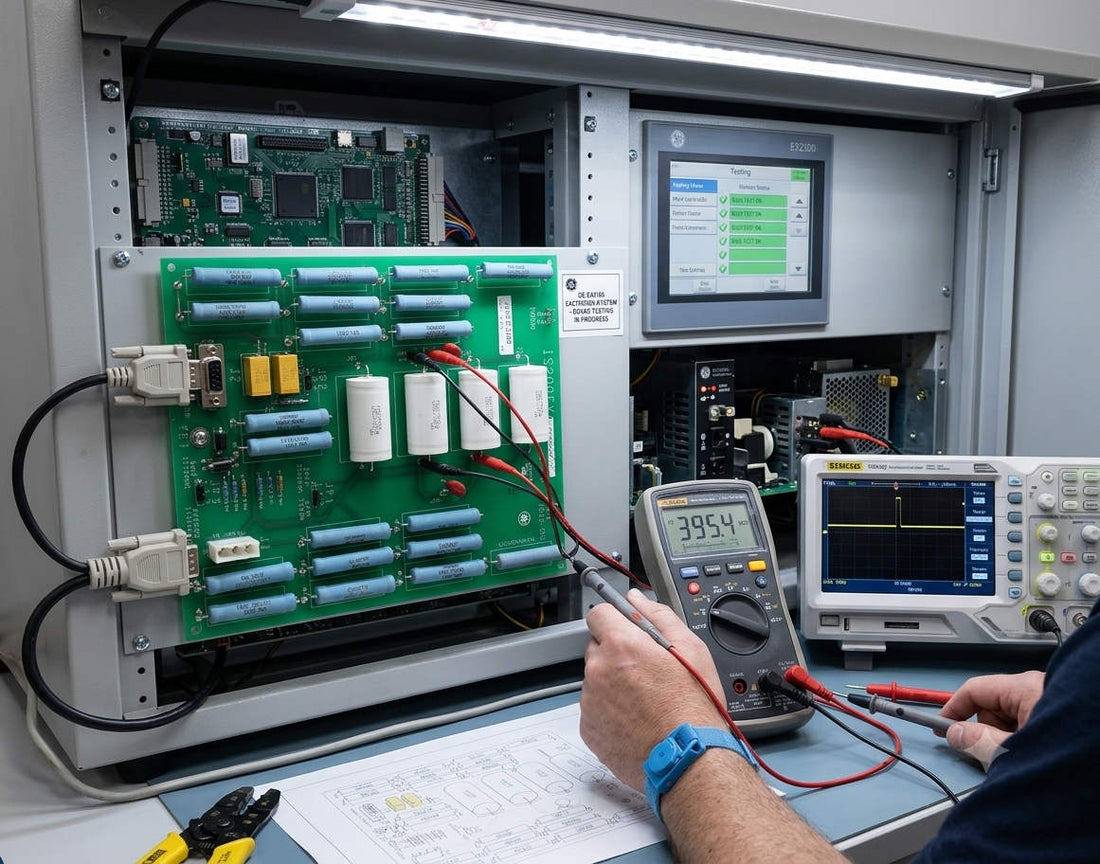

Testing Requirements After GE IS200EXAMG1A Exciter Board Replacement
The GE IS200EXAMG1A Exciter Attenuation Module plays a vital role in generator voltage feedback acquisition. During routine maintenance outages, engineers frequently replace this component due to analog channel faults or component aging. However, a common question arises regarding whether teams must repeat the Open-Circuit Characteristic (OCC) test. While a full no-load test is not always mandatory, verifying system measurement accuracy remains highly recommended. This practice ensures your critical control systems operate reliably before returning the generator to service.
The Core Role of Attenuation Modules in Voltage Feedback
The IS200EXAMG1A scales high-voltage generator signals precisely for the EX2100 control core. Stable voltage feedback ensures optimal Automatic Voltage Regulator (AVR) performance during daily operations. In large power generation facilities, inaccurate sampling can cause severe AVR instability. This discrepancy leads to reactive power control deviations across the local network. Therefore, restoring measurement integrity via a calibrated board supports broader factory automation and stability standards.
Voltage Measurement Accuracy and AVR Stability
The primary function of this card involves attenuating high-voltage signals before digital processing occurs. Even a minor measurement deviation can distort reactive power sharing among parallel units. If the replacement card lacks precise calibration, the AVR will regulate based on faulty reference points. Consequently, the generator may experience unnecessary thermal stress. This vulnerability highlights why accurate hardware feedback is essential for modern industrial automation loops.
Signal Filtering and Noise Immunity in Power Plants
Excitation systems operate in harsh environments with heavy electromagnetic interference from nearby transformers. The internal filtering architecture of the IS200EXAMG1A directly impacts feedback stability. Moreover, proper grounding suppresses voltage oscillations during sudden load rejections. Field data indicates that poor shield terminations cause more faults than actual component failures. Therefore, robust installation practices protect your broader DCS infrastructure from signal corruption.
Evaluating the Necessity of a New No-Load Characteristic Test
A complete no-load characteristic test is generally unnecessary if you install an identical hardware revision. If the potential transformer (PT) ratios remain unchanged, a simple calibration verification suffices. However, you should consider a full OCC test if the voltage scaling configurations change. Major excitation upgrades or modified transformer circuits also require a complete re-test. For critical utility assets, performing a simplified voltage-rise verification represents an industry best practice.
Commissioning Checklist for Sampling Board Upgrades
- ✅ Hardware Matching: Verify that the new board revision matches the existing EX2100 firmware settings.
- ⚙️ PT Verification: Measure secondary voltages directly at the terminal block before startup.
- 🔧 Shield Grounding: Ensure the cable shields connect to a single point to prevent ground loops.
- 📈 Instrument Comparison: Compare HMI readings with a calibrated portable meter during initial voltage rise.
Expert Perspective from Ubest Automation Limited
At Ubest Automation Limited, we emphasize that skipping loop verification after a board replacement is a high-risk approach. Many field faults stem from mismatched attenuation factors rather than physical board defects. If the control algorithms receive scaled data that is off by even two percent, the generator capability curve is compromised. We advise standardizing your commissioning steps to include an independent voltage validation prior to synchronization.
To source certified GE components or receive direct engineering support for your EX2100 system, please visit Ubest Automation Limited. Our team provides the reliable hardware your facility depends on.
Application Scenario: Co-Generation Plant Calibration
An industrial cogeneration facility replaced a faulty IS200EXAMG1A module during a brief weekend maintenance window. Instead of running a lengthy OCC test, the team executed a structured voltage-rise check. They discovered a 3% discrepancy caused by outdated calibration constants in the AVR software. Updating the parameters restored perfect alignment between the local PLC network and the generator terminals, avoiding a potential over-excitation trip.
Maintenance Frequently Asked Questions
Look for persistent calibration drift that cannot be corrected via software tuning. Physical signs like discoloration from localized overheating or active analog input alarms on the HMI also signal a need for replacement. Always inspect terminal integrity before condemning the hardware.
No, this specific card is designed tailored to the EX2100 architecture and its native signal levels. Attempting to cross-install modules across different design generations can cause severe voltage scaling errors. Always check the official spare parts documentation for your specific cabinet.
Oxidation on low-voltage connectors introduces variable resistance into the analog conditioning path. This resistance alters the attenuation ratio slightly, leading to fluctuating voltage data at the processor level. Cleaning and reseating connectors during outages prevents these phantom faults.
