Troubleshooting Bently Nevada 3500/32M Relay Drive Fault Alarms
The Bently Nevada 3500/32M Relay Module serves as the critical protection interface between safety monitoring logic and physical control circuits. When a "Relay Drive Fault" alarm occurs, maintenance teams face an immediate diagnostic dilemma. They must quickly determine whether the fault stems from a damaged relay coil or a stuck contact. In high-stakes sectors like oil and gas or power generation, misdiagnosing this alarm can cause extensive downtime. Therefore, understanding the exact fault mechanism is essential for maintaining plant safety and **industrial automation** continuity.
Decoding the Relay Drive Fault Monitoring System
A common misconception in the field is that this diagnostic alarm indicates welded load-side contacts. However, the front 3500/32M processor explicitly monitors the internal activation circuitry rather than final contact continuity. The supervisor system flags open relay coils, failed driver transistors, or abnormal current draws. Moreover, it detects communication mismatches between execution commands and internal circuit feedback. As a result, you should treat this specific error as a failure within the actuation loop. It rarely indicates a problem with the secondary field wiring or contact surfaces.
Do Stuck Contacts on the 125712-01 Trigger Drive Alarms?
The rear **125712-01 Relay Output Module** provides the physical terminals and contacts for external trip circuits. Contacts often become mechanically welded due to excessive inductive arcing or missing surge suppression components. Nevertheless, a damaged contact on the 125712-01 does not alter the electrical properties of the primary coil drive circuit. Therefore, a welded contact will not directly generate a drive fault. Operators typically discover contact degradation through functional interlocking tests or when a critical machine fails to shut down. This distinction is vital for accurate **control systems** diagnostics.
Statistical Probability of Machinery Protection Failures
According to industrial turbomachinery troubleshooting reports, component failure probabilities follow a very consistent pattern. Relay driver circuit degradation and open coils represent the highest statistical risk. Next, loose backplane connectors or physical chassis damage often cause intermittent faults. Mechanical contact welding actually ranks lowest on the probability scale for modern **factory automation** systems. Consequently, if the module still switches loads successfully during test intervals, your troubleshooting focus should center entirely on the internal driver diagnostics.
Testing Relay Operation via Software Commands

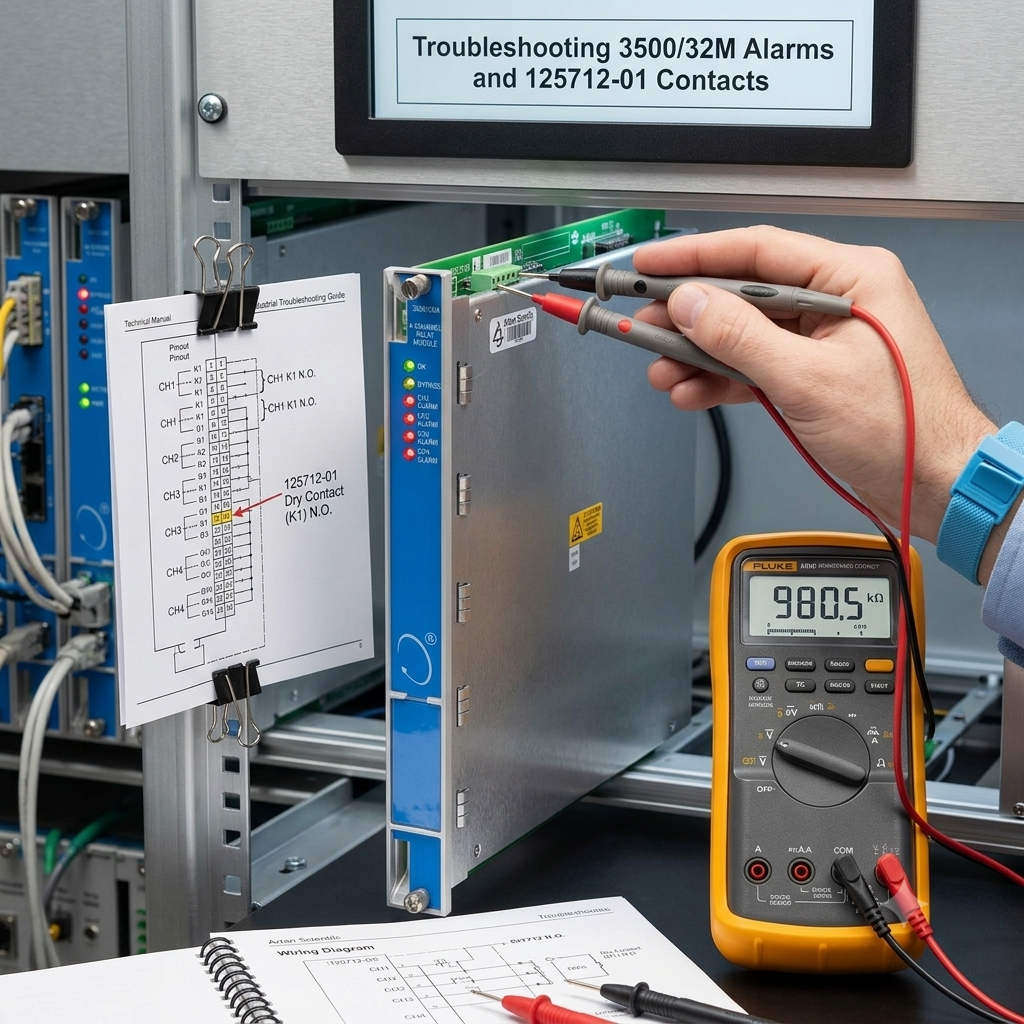

Before removing any hardware, engineers should utilize the 3500 Rack Configuration Software to force relay states manually. During this software test, listen closely for a distinct mechanical click and verify continuity with a digital multimeter. If the relay physically changes state but the alarm persists, the monitoring circuit itself is defective. This structured approach prevents the unnecessary replacement of functional rear output terminal blocks. Furthermore, it allows maintenance teams to isolate electronic control faults from physical contact wear within minutes.
Mitigating Inductive Load Hazards for Relay Contacts
Unprotected inductive field devices like heavy solenoids or large contactor coils cause severe voltage transients during switching. These high-voltage spikes accelerate contact pitting and degrade internal driver electronics over time. To ensure reliable operations, engineers must install flyback diodes across DC coils or RC snubbers for AC loads. Adhering to IEC 61000 surge mitigation standards protects the internal components of the 3500 rack. Proper suppression ensures long-term safety compliance across your entire **DCS** network architecture.
Inspecting Connections in High-Vibration Environments
Gas turbine enclosures and compressor skids subject machinery protection hardware to constant physical vibration. Over time, this movement can loosen terminal screws and unseat the connection between the 3500/32M and the 125712-01 module. As a result, intermittent contact resistance can mimic an internal component failure. Technicians should inspect terminal torque values and clean any surface oxidation during scheduled turnarounds. Ensuring solid mechanical seating prevents false diagnostic alarms from disrupting your plant operations.
The 10-Minute Field Diagnostic Rule
- ✅ Step 1 (No Mechanical Click): If forcing the relay produces no audible click, the problem lies in the coil, driver transistor, or internal power trace. Replace the front module.
- ⚙️ Step 2 (Audible Click, No Continuity): If the relay clicks but the external circuit state remains unchanged, the 125712-01 contacts are burned or stuck. Inspect or replace the rear module.
- 🔧 Transient Prevention: Always verify that external suppression diodes are functional to prevent repetitive coil-side damage.
- 📈 Data Logging: Export the comprehensive 3500 system event log before clearing alarms to preserve diagnostic history.
Expert Perspective from Ubest Automation Limited
At Ubest Automation Limited, we frequently support plants facing sudden diagnostic faults on their safety racks. The "Two-Step Field Diagnostic" outlined above is incredibly effective for minimizing shutdown windows. It prevents technicians from blindly swapping expensive components. We remind operators that mixing unapproved rear modules with front processors can invalidate API 670 compliance. Standardizing your inventory with certified hardware is the safest path to operational excellence.
To acquire genuine components or to access specialized rack configuration support, please visit Ubest Automation Limited. Our team provides the reliable solutions required to secure your assets.
Application Scenario: Emergency Compressor Trip Diagnosis
An offshore platform experienced an unexpected drive fault alarm on a critical gas export compressor rack. The maintenance team utilized software forcing commands and noted a distinct click from the module, yet the emergency shutdown valve remained unactuated. Applying the diagnostic rule, they bypassed the front card and focused immediately on the 125712-01 terminal block. They discovered a severely pitted contact caused by a failed surge suppressor, allowing them to rebuild the loop and restart production within hours.
Engineering Frequently Asked Questions
If the alarm stems from a temporary logic glitch or a minor voltage fluctuation, a power cycle might clear it temporarily. However, if a driver transistor has failed or a coil is open, the diagnostic system will re-flag the issue immediately upon startup. True hardware failures require component isolation rather than simple resets.
No, attempting to measure resistance on an energized circuit will damage your multimeter and introduce significant safety risks. You must isolate the external power source and disconnect the field wiring from the terminal block before performing continuity or resistance checks on the contacts.
Not always. Bently Nevada frequently updates internal component specifications and feedback logic across different firmware and hardware revisions. Always consult the official compatibility matrix and verify the exact part number suffixes before pairing a new front processor with an existing rear block.
