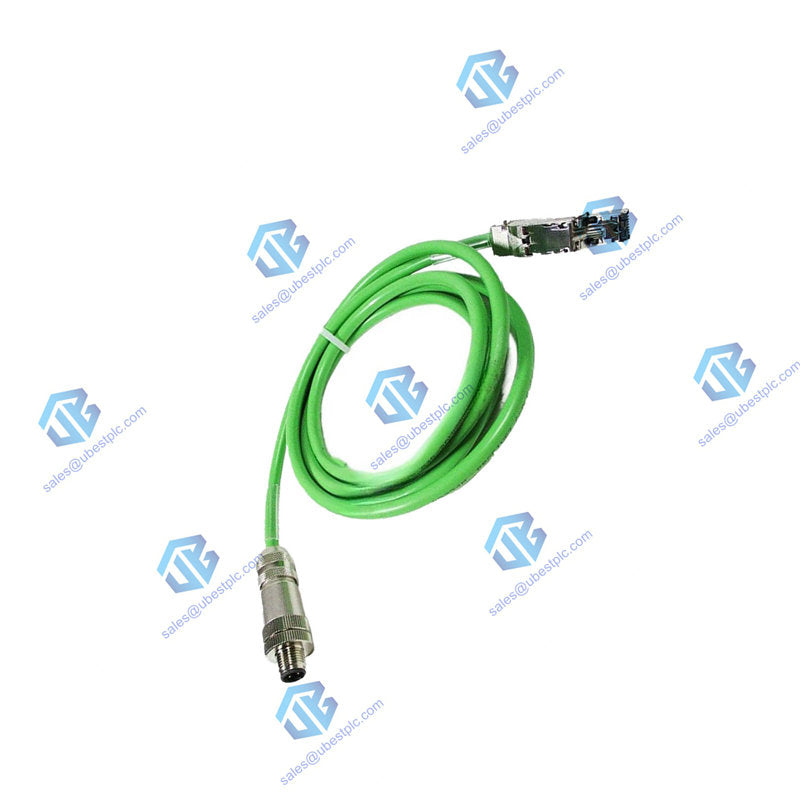

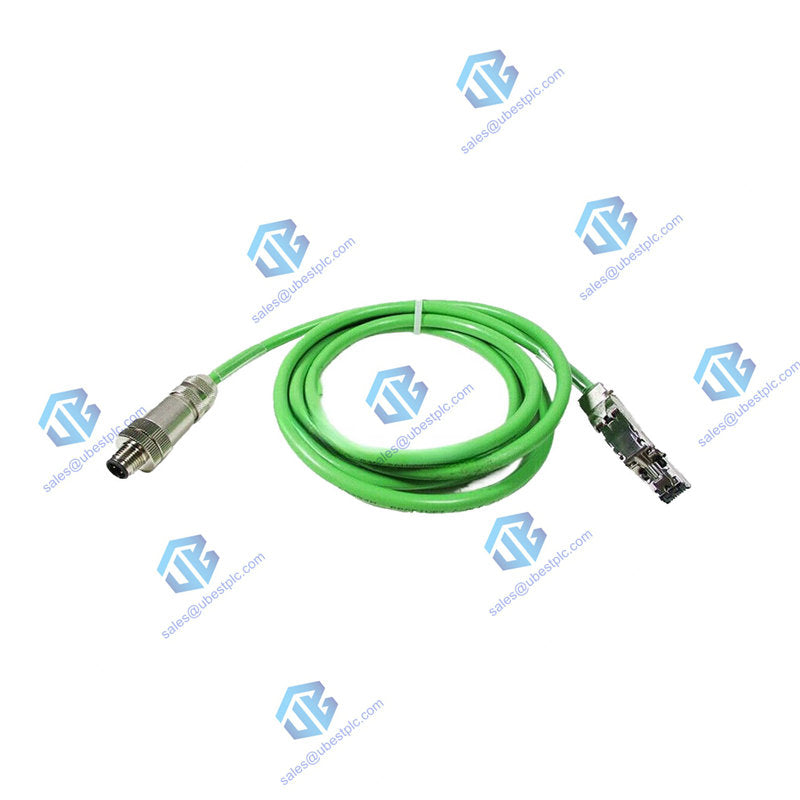

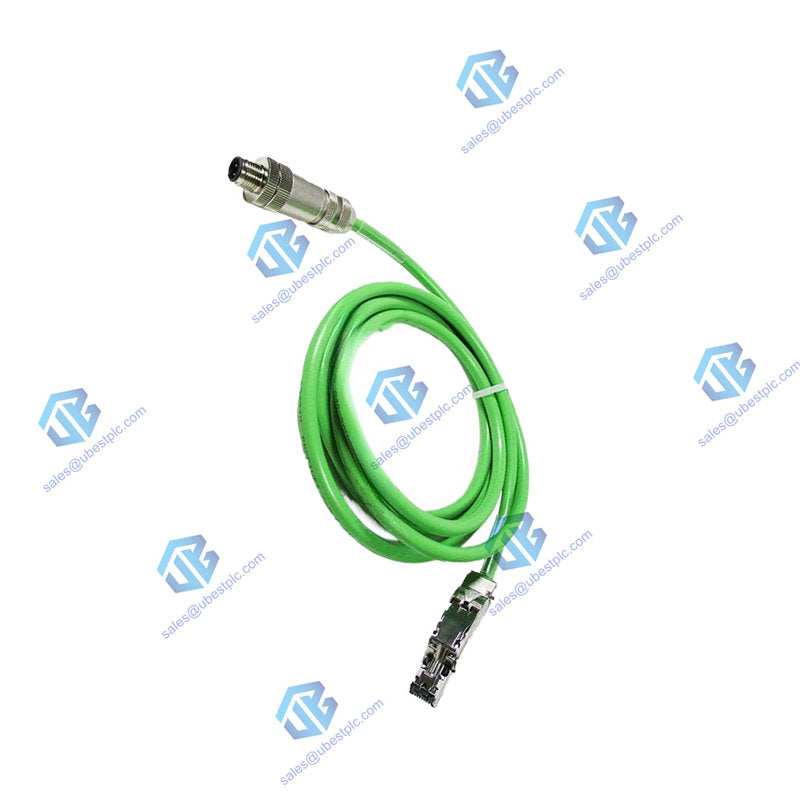

Siemens 6XV1871-5TH20 Industrial Ethernet Connecting Cable

This flexible Ethernet cable provides reliable network connection in demanding environments. The 6XV1871-5TH20 bridges M12 and RJ45 interfaces for industrial communication systems.

Complete Technical Specifications

• Manufacturer & Model: Siemens 6XV1871-5TH20
• Product Type: IE Connecting Cable M12-180/IE FC RJ45-145
• Cable Length: 2.0 meters standard
• Connector A: 4-pin M12 connector, D-coded (male)
• Connector B: IE FC RJ45 Plug 145 (male)
• Conductor Size: 4 x AWG22 (0.75 mm²) twisted pairs
• Cable Type: 2YY (ST) CY 2x2x0,75/1,5-100 LI GN
• Impedance: 100 Ω ±5% (1-100 MHz)
• Attenuation: 0.213 dB/m maximum at 100 MHz
• Operating Voltage: 80V RMS, 300V UL rating
• Shielding: Aluminum foil + tinned copper braid
• Cable Diameter: 6.5 mm outer diameter
• Weight: 68 kg/km (approximately 136 grams for 2m)
• Bending Radius: Fixed: 32.5mm; Multiple: 49mm; Continuous: 100mm
• Bending Cycles: 3 million cycles at 100mm radius
• Tensile Load: Maximum 150 N
• Operating Temperature: -25°C to +75°C
• Installation Temperature: -10°C to +60°C
• Flame Rating: UL 1685 (CSA FT4) flame resistant
• Chemical Resistance: Oil, grease, and water resistant

Application & Compatibility

• Primary Use: Connecting Industrial Ethernet devices with different interfaces
• Compatible Devices: SIMATIC ET200pro, SCALANCE switches, SIMOTION controllers
• Network Standard: Cat5e for 10/100/1000 Mbps Ethernet
• PoE Capability: Supports IEEE 802.3af (PoE) and 802.3at (PoE+)
• Environmental Suitability: Suitable for drag chains and moving applications

Package & Shipping Information

• One pre-assembled Industrial Ethernet cable, 2 meters length
• Factory-terminated with M12 and RJ45 connectors
• Protective packaging to prevent connector damage
• International shipping via FedEx, UPS, or DHL

Warranty & Certification

• 12-month warranty against manufacturing defects
• UL/ETL listed, CE marked, RoHS compliant
• EAC approval for Eurasian market compliance
• Tested to Siemens quality standards

Frequently Asked Questions (FAQ)

• What types of equipment typically use this M12 to RJ45 cable? This cable commonly connects Siemens PROFINET devices like ET200pro remote I/O (M12 port) to standard network switches or controllers with RJ45 ports.
• Can this cable be used in permanent cable carrier installations? Yes, with its 3 million cycle rating at 100mm radius, it's specifically designed for continuous motion in cable carriers and drag chains.
• What does "D-coded" mean for the M12 connector? D-coding specifies the pin arrangement and key position. It's commonly used for Industrial Ethernet (PROFINET) and 100Mbit/s Ethernet applications.
• Is this cable suitable for outdoor or direct sunlight applications? The UV-resistant jacket provides protection against sunlight degradation, making it suitable for outdoor use in industrial settings.
• What maintenance is required for cables in continuous motion applications? Regular inspection for jacket wear, proper strain relief, and ensuring bending radius limits are maintained will extend cable life in dynamic applications.
