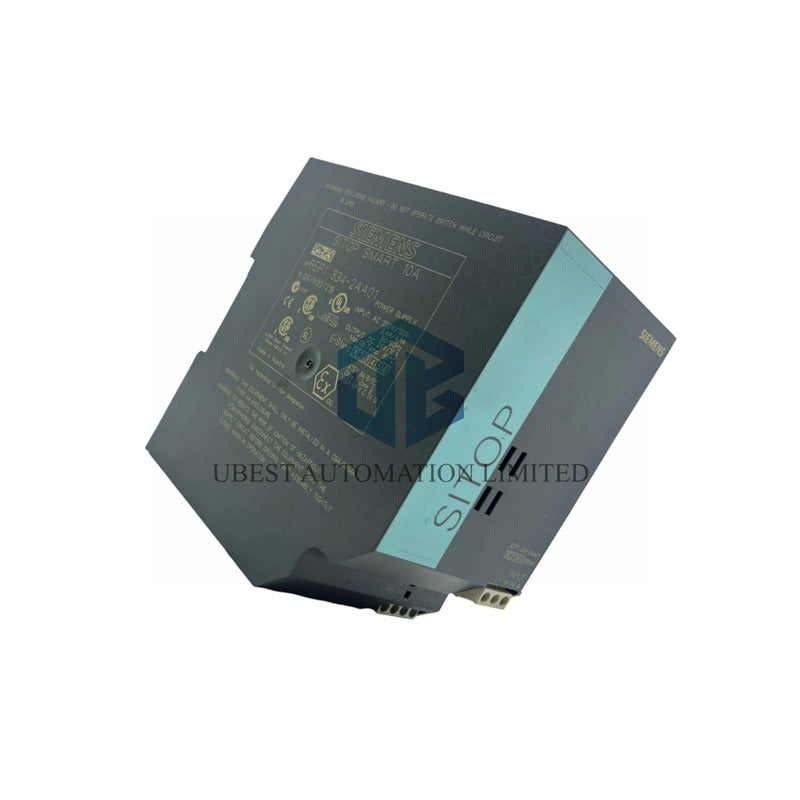

6EP1334-2AA01-0AB0 Siemens ITOP SMART - Power Supply
UBEST – Αξιόπιστος Παγκόσμιος Προμηθευτής Ανταλλακτικών Αυτοματισμού
Προσφέρουμε μια μεγάλη γκάμα διαθέσιμων ανταλλακτικών βιομηχανικού αυτοματισμού. Όλα τα προϊόντα συνοδεύονται από 12μηνη εγγύηση και 30ήμερη επιστροφή χρημάτων για θέματα ποιότητας.
Siemens SITOP SMART 240W Power Supply - High Power Wall Mount Solution
- High-capacity 24V/10A output for demanding applications
- Flexible wall mounting design for easy installation
- Dual voltage input 120V/230V with manual selection
- Excellent 90% efficiency reduces operating costs
Product Overview
The Siemens 6EP1334-2AA01-0AB0 SITOP SMART power supply delivers robust 240W performance with convenient wall mounting. This powerful 6EP1334-2AA01-0AB0 unit provides reliable 24V DC power for industrial systems requiring high current capacity.
Technical Specifications
| Brand: | Siemens |
| Model: | 6EP1334-2AA01-0AB0 |
| Series: | SITOP SMART |
| Input Voltage: | 120V/230V AC (selectable) |
| Output Voltage: | 24V DC |
| Output Current: | 10A (12A up to 45°C) |
| Output Power: | 240W (288W max) |
| Efficiency: | 90% |
| Voltage Adjustment: | 22.8-28V |
| Ripple & Noise: | <150mV |
| Operating Temperature: | 0°C to +60°C |
| Protection Rating: | IP20 |
| Short Circuit Current: | 33A peak |
| Response Time: | 0.2ms |
| Dimensions: | 70 x 125 x 125 mm |
| Weight: | 0.85 kg |
| Mounting Style: | Wall Mount |
Key Features
- High 10A output current for multiple devices
- Wall mount design for flexible installation
- Selectable input voltage for global use
- High efficiency 90% saves energy
- Adjustable output for precise voltage setting
- Short circuit protection with auto-recovery
- Status indicator LED for quick monitoring
- Parallel operation supports two units
Installation Guide
Simple wall mounting with screw terminals. Set voltage selector before connecting power. Allow 50mm clearance above and below unit. Use proper wire sizes (0.5-2.5mm²).
Applications
- High-power control systems
- Multiple PLC installations
- Industrial machinery power
- Large sensor networks
- Motor control circuits
- Factory automation systems
Certifications & Approvals
- CE Marked
- UL Certified
- UKCA Approved
- EAC Compliant
- DNV Marine Certified
- CB Scheme
Package Contents
- SITOP SMART 240W Power Supply
- Wall Mounting Hardware
- Installation Manual
- Technical Documentation
- 12-month performance warranty
Shipping Options
Fast worldwide delivery via FedEx, UPS, DHL. Most orders ship same day.
Frequently Asked Questions
What is the main advantage of wall mount design?
Wall mounting provides flexible installation options where DIN rail space is limited or specific mounting locations are preferred.
Can this power supply handle multiple motor startups?
Yes, it provides high short-term overload capacity (33A) perfect for motor starting currents and inductive loads.
How does the efficiency compare to similar units?
At 90% efficiency, it outperforms many competitors, reducing heat generation and energy costs significantly.
What wire size should I use for installation?
Use 0.5-2.5mm² wires for both input and output connections to ensure safe operation and optimal performance.
Is this suitable for 24/7 continuous operation?
Yes, with its high MTBF rating and robust design, it's perfect for continuous industrial applications requiring reliable power.
