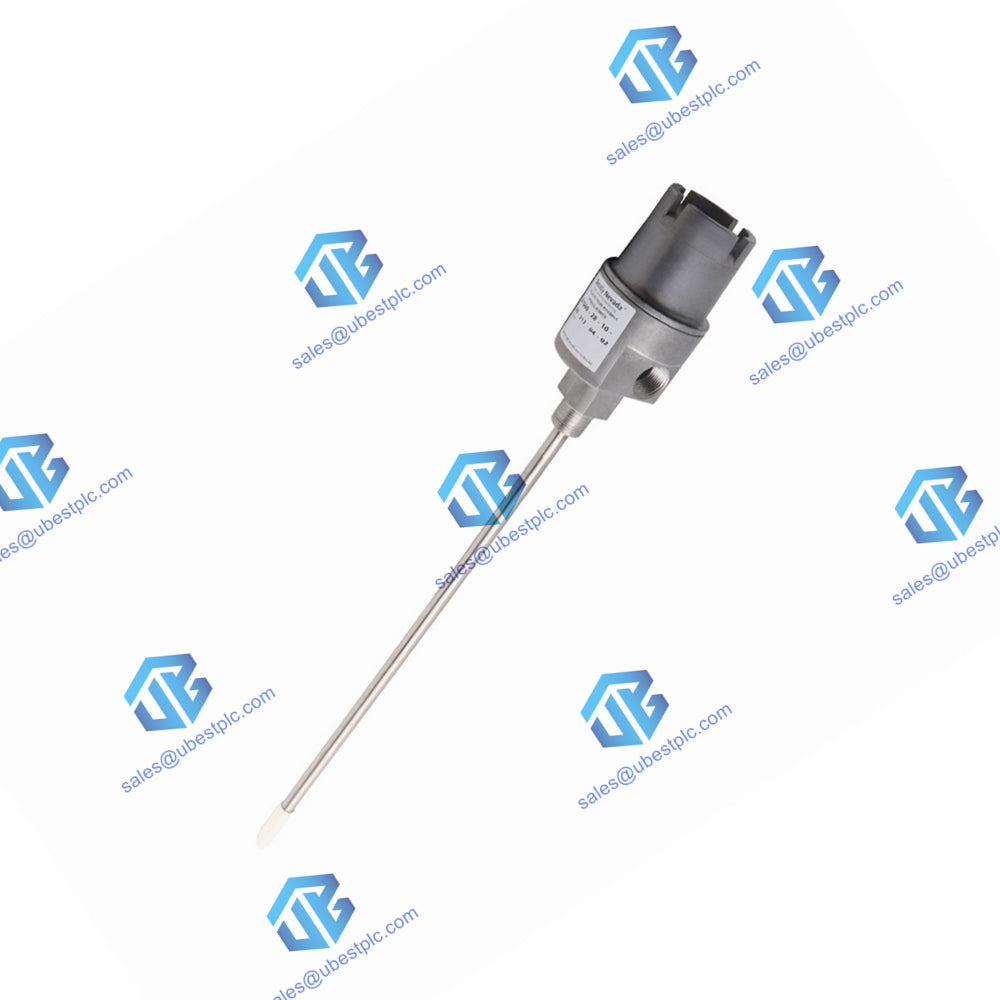

Bently Nevada 21000-16-10-15-070-03-02 Probe Housing Assembly

The Bently Nevada 21000-16-10-15-070-03-02 housing assembly provides complete vibration monitoring with standoff adapter. This system offers flexible mounting options for challenging industrial applications.

Complete Technical Specifications

• Brand: Bently Nevada
• Model: 21000-16-10-15-070-03-02
• Product Type: Proximity Probe Housing Assembly
• Probe Type: 3300 XL 8mm with connector
• Cable Length: 1.0 meter (39 inches) standard
• Standoff Adapter: 1.5 inches (38 mm) included
• Probe Penetration: 7.0 inches mounting depth
• Mounting Thread: 3/4-14 NPT industrial standard
• Housing Material: Aluminum body with 304 stainless steel
• Visible Dimension: 17.0 inches with probe identification
• Maximum Length: 32.9 inches total assembly
• Weight: 1.1 kg (2.4 lb) without fittings
• Temperature Rating: T4 @ -50°C to +80°C

Model Configuration Details

• Product Line: 21000 - Probe Housing Assembly System
• Probe Selection: 16 - 3300 XL 8mm probe with connector
• Cable Option: 10 - 1.0 meter standard cable length
• Standoff Adapter: 15 - 1.5 inch (38mm) extension
• Penetration Depth: 070 - 7.0 inches probe penetration
• Fitting Package: 03 - Complete conduit fitting set
• Mounting Thread: 02 - 3/4-14 NPT standard

Hazardous Area Certifications

• Class I: Divisions 1 & 2, Groups C & D
• Class II: Divisions 1 & 2, Groups E, F & G
• Class III: Hazardous particulate locations
• Enclosure Type: 4 environmental protection
• Temperature Code: T5 @ -50°C to +40°C
• Temperature Code: T4 @ -50°C to +80°C
• Non-incendive: When connected per drawing 140979

Installation Components

• Dome cover for complete environmental protection
• Threaded conduit ports for multiple connections
• Probe sleeve with 7.0 inch penetration length
• Quality O-rings for reliable sealing performance
• Reverse mount proximity probe assembly
• Thread seal for secure weatherproof mounting
• 1.5 inch standoff adapter for mounting flexibility
• Complete conduit fitting package

Fitting Package Contents

• One 3/4-14 NPT plug for unused port sealing
• One 3/4-14 to 1/2-14 NPT reducer for connection flexibility
• Cable seal grip with three grommet size options
• Grommet range: 1/8" to 3/8" cable diameter coverage
• Complete hardware for immediate installation

Installation Guidelines

• Use 1.5 inch standoff adapter for proper mounting clearance
• Set probe penetration at 7.0 inches for standard applications
• Counter bore machine case for 1.0-2.0 inch penetrations
• Add sleeve support for penetrations exceeding 12 inches
• Allow ±0.5 inch adjustment range for probe positioning
• Follow hazardous area installation procedures strictly

Electrical Compliance

• FCC Part 15: Compliant with electromagnetic interference rules
• RoHS Directive: 2011/65/EU environmental compliance
• Non-incendive Circuit: When installed per drawing 140979
• CSA Certified: For explosion-proof applications
• API 670: Compliant with industry monitoring standards

Dimensional Specifications

• Standoff Adapter: 1.5 inches (38 mm) extension
• Probe Penetration: 7.0 inches mounting depth
• Visible Section: 17.0 inches with identification label
• Total Length: 32.9 inches maximum assembly dimension
• Cable Length: 1.0 meter included with probe
• Weight: 1.1 kg typical without additional fittings

Shipping Information

• Packaging: Factory original with protective materials
• Carriers: FedEx, UPS, DHL express shipping available
• Delivery: Worldwide service with tracking information
• Condition: New and original equipment guaranteed
• Warranty: 12-month manufacturer coverage

Frequently Asked Questions

• What is the standoff adapter size in this model?
• This housing includes a 1.5 inch (38mm) standoff adapter for mounting.
• What probe penetration depth does this assembly provide?
• It offers 7.0 inches of probe penetration for standard applications.
• What hazardous area certifications does this housing have?
• It carries CSA explosion-proof certification for Class I Division 1 & 2 areas.
• What type of probe is included with the housing?
• The assembly includes a 3300 XL 8mm proximity probe with connector.
• What mounting thread does this housing use?
• It features 3/4-14 NPT mounting thread for industrial applications.
