1769-OF4CI Allen-Bradley Analog Output Module - 4-Channel
UBEST – Pouzdani globalni dobavljač dijelova za automatizaciju
Nudimo širok asortiman industrijskih rezervnih dijelova za automatizaciju na skladištu. Svi proizvodi dolaze s 12-mjesečnim jamstvom i 30-dnevnim povratom novca zbog problema s kvalitetom.

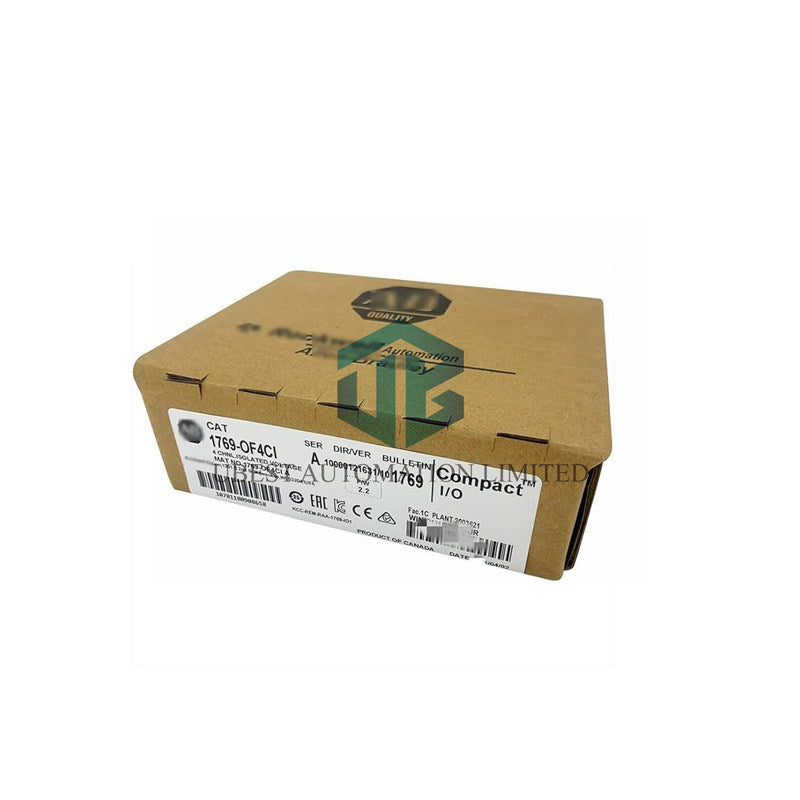

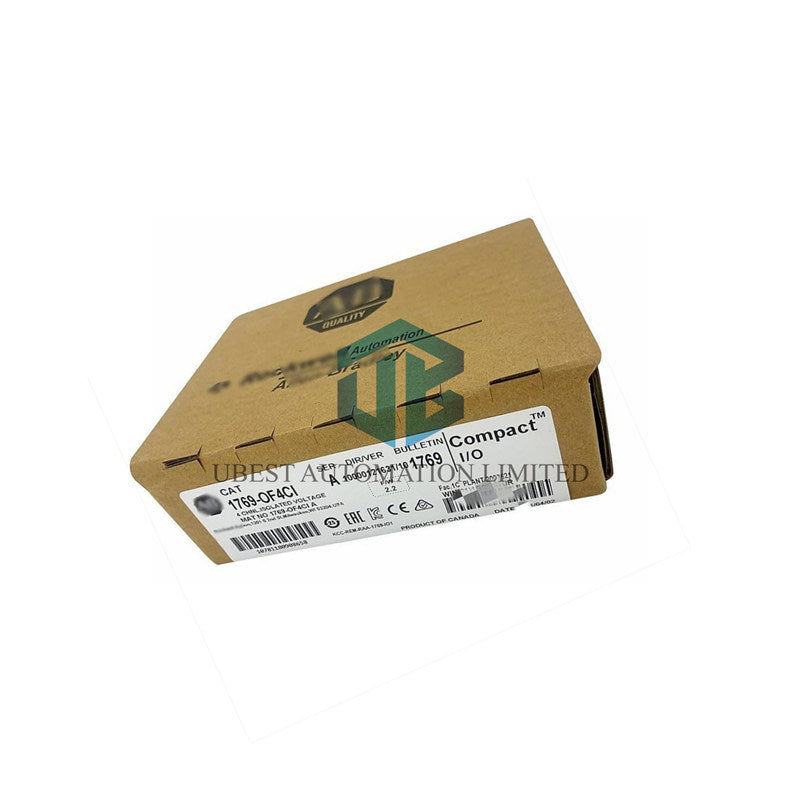

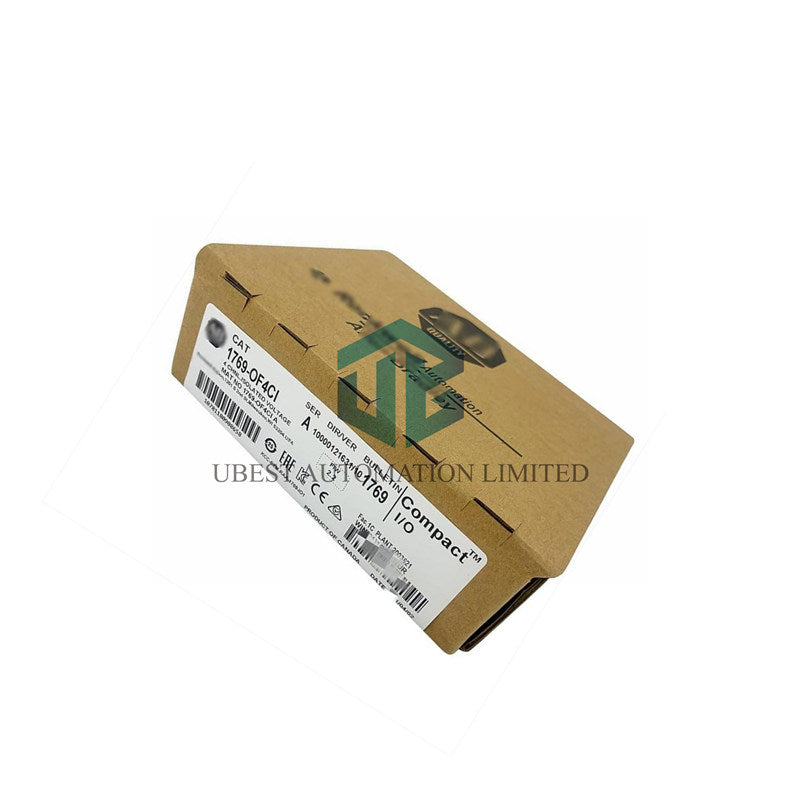

Allen-Bradley 1769-OF4CI Analog Output Module
Precision 4-channel isolated analog output for accurate control systems. The 1769-OF4CI module delivers reliable current output signals.
Why Choose This Module?
- Four isolated channels for separate signal control
- High 16-bit resolution for precise output
- Easy installation with DIN rail mounting
- Auto-calibration saves setup time
- Wide compatibility with popular controllers
Technical Specifications
Brand: Allen-Bradley
Model: 1769-OF4CI Compact I/O
Channels: 4 isolated outputs
Output Type: Current (0-20mA, 4-20mA)
Resolution: 16-bit high precision
Accuracy: ±0.35% at 25°C
Conversion Rate: 110 ms per channel
Load Resistance: 0-500 Ohms
Isolation: Channel-to-channel and channel-to-bus
Operating Temperature: 0°C to 60°C
Power Consumption: 165mA @ 5V DC
Heat Dissipation: 2.0 Watts maximum
Non-linearity: ±0.05% of full scale
Easy Installation
Mount on DIN rail or panel. Place within 8 modules of power supply. Use shielded cable for best performance.
Controller Compatibility
Works with CompactLogix and MicroLogix 1500 systems. Perfect for process control applications.
Shipping Information
Fast delivery via FedEx, UPS, or DHL. Ships within 24 hours.
Quality Guarantee
12-month product warranty included with every purchase.
Professional FAQ
What output signals does the 1769-OF4CI support?
It supports both 0-20mA and 4-20mA current signals.
Are the output channels isolated?
Yes, all four channels have individual isolation.
What is the module's resolution?
It provides 16-bit resolution for precise control.
Does it require field calibration?
No, the module features automatic calibration on power-up.
What controllers work with this module?
Compatible with CompactLogix and MicroLogix 1500 systems.
