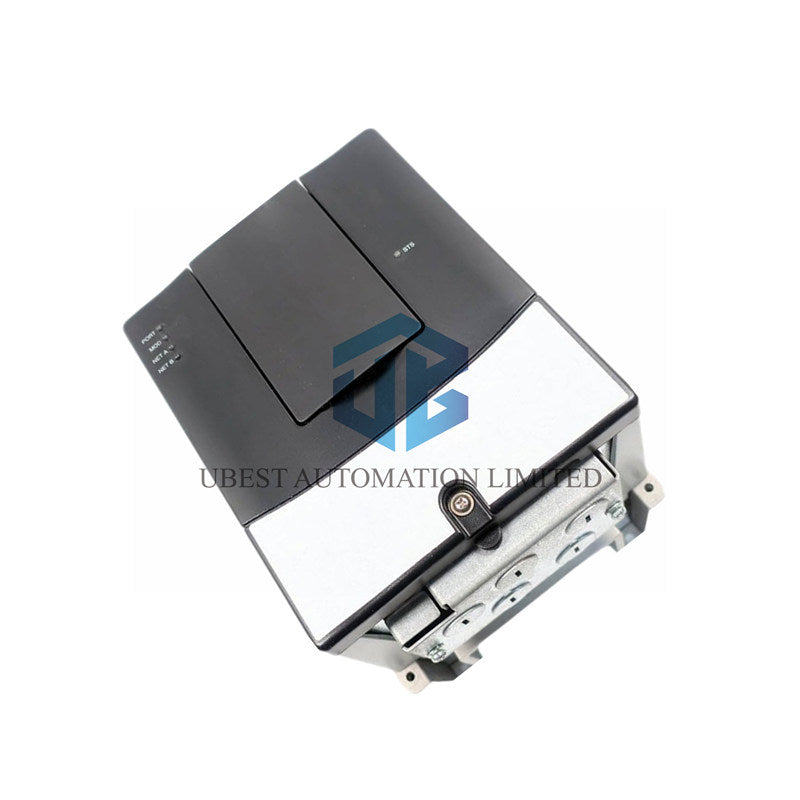

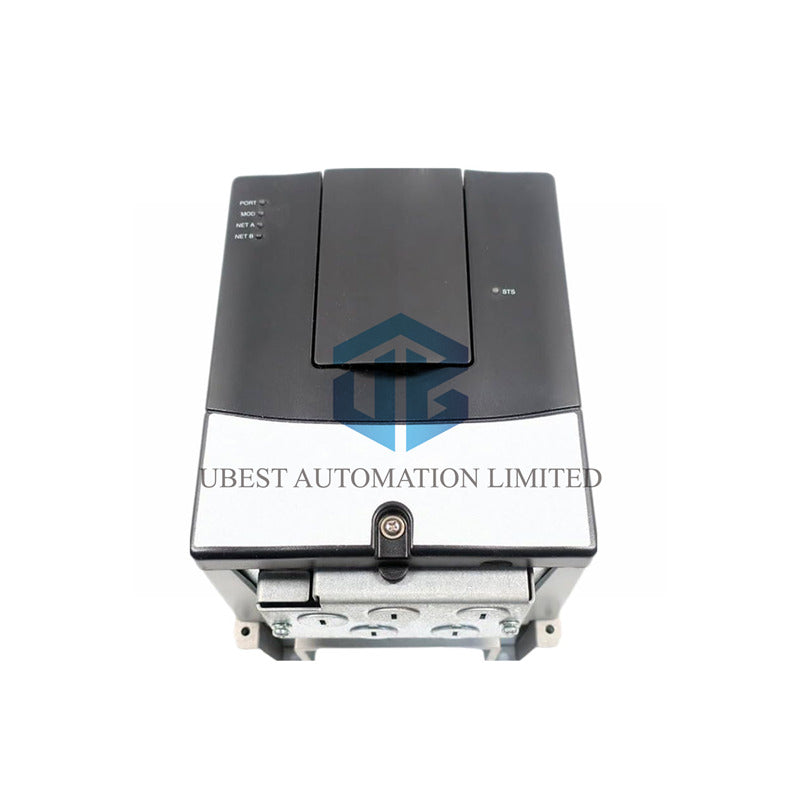

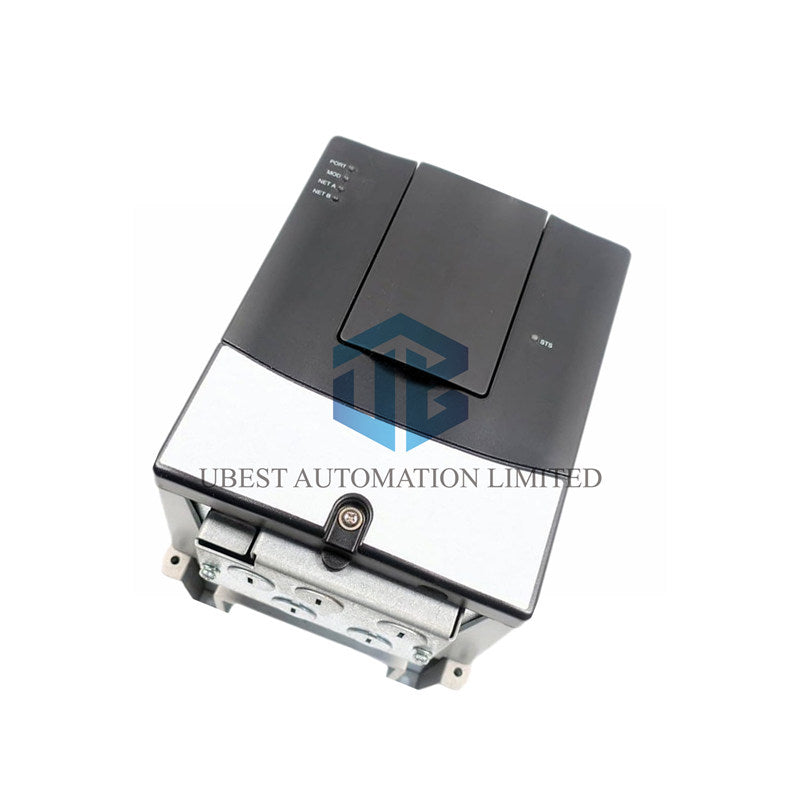

Allen-Bradley PowerFlex 70 Drive 20AD5P0A0AYNNNC0 | Industrial Performance

Core Drive Specifications

• Input Power: 480V AC three-phase with industrial voltage tolerance
• Motor Capacity: 3 HP normal duty, 2 HP heavy duty operation
• Output Current: 5A continuous, 7.5A for 3 seconds peak
• Power Rating: 2.2 kW efficient power conversion system
• Control System: Enhanced control board for precision operation
• Braking Technology: Integrated IGBT brake transistor installed
• Frame Size: Compact B frame design for space optimization
• Enclosure Rating: IP20/NEMA Type 1 with protective coating

Advanced Control Features

• Enhanced control platform supports advanced applications
• Built-in brake IGBT enables dynamic braking capability
• Conformal coating provides additional environmental protection
• Blank plate interface allows for remote control flexibility
• Multiple overload capacities for different duty cycles
• Standard 4.0 kg weight for easy panel mounting
• Standard B frame dimensions for consistent installation
• Standard torque performance across speed range

Environmental & Installation Specifications

• Operating temperature range 0°C to 40°C standard
• Storage temperature -20°C to 65°C for component protection
• Maximum 95% relative humidity without condensation
• Vibration resistance 2.5G for industrial environment stability
• Installation altitude up to 1000 meters without derating
• Panel mounting with proper ventilation requirements
• EMC compatibility for industrial electromagnetic environments
• UL, cUL certifications for North American markets

Installation & Commissioning Guide

• Mount in vertical position for optimal heat dissipation
• Maintain minimum 50mm clearance around drive unit
• Use appropriate conduit plates for IP20/NEMA 1 rating
• Follow torque specifications for terminal connections
• Implement proper grounding for safety and performance
• Verify voltage compatibility before applying power
• Configure parameters according to motor specifications
• Test brake function before putting into operation

Packaging & Shipping Details

• Factory-sealed drive unit with blank cover plate
• Complete installation documentation and manuals
• Protective packaging for international transport safety
• Express shipping via FedEx, UPS, and DHL available
• Order tracking provided for all shipment methods
• Quick dispatch processing within 24 business hours

Warranty & Support Services

• Comprehensive 12-month product warranty coverage
• Technical support for installation and configuration
• Online resources and technical documentation access
• Replacement service for warranty claim situations
• Expert assistance for application-specific setups

Professional Application FAQ

• What applications suit this PowerFlex drive model?
• The 20AD5P0A0AYNNNC0 works well in conveyors, pumps, and fans
• Can I add communication modules to this drive later?
• Yes, optional communication cards enable network connectivity
• What safety features does this drive include?
• DriveGuard safe-off option provides enhanced safety functions
• How do I configure the brake IGBT for my application?
• Set brake parameters according to motor and load requirements
• What maintenance does this drive require annually?
• Regular cleaning and thermal checks ensure long-term reliability
