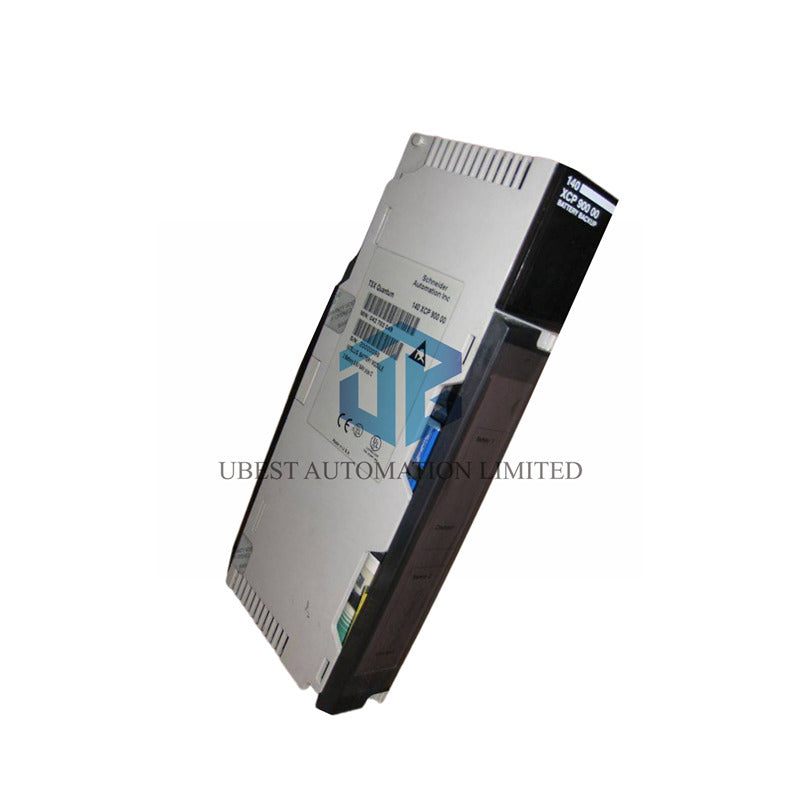

Schneider Electric 140XCP90000 Battery Backup Module

Essential Power Backup Specifications

• Brand: Schneider Electric
• Model: 140XCP90000
• Product Type: Battery holder module for backup power
• Battery Type: Standard lithium primary cells
• Voltage Output: 3.6V DC nominal battery voltage
• Backup Duration: Up to 5 years data retention
• Capacity Rating: 1200 mAh minimum battery capacity
• Operating Range: -40°C to +85°C temperature capability
• Self-discharge: <1% per year at room temperature
• Connection Type: Spring-loaded battery contacts

Module Compatibility & Integration

• Specifically designed for multifunction input modules
• Primary compatibility with 140ERT85410 module series
• Direct plug-in connection to Quantum baseplate
• Maintains memory during power interruptions
• Automatic switchover to battery during power loss
• Low battery detection and status indication

Electrical Performance Characteristics

• Standby current: <10 μA during battery operation
• Maximum load current: 50 mA continuous capability
• Voltage monitoring: 2.5V low battery threshold
• Reverse polarity protection for battery installation
• Short-circuit protection on output circuits
• Leakage current: <0.1 μA in storage mode

Physical Design Features

• Housing Material: UL94 V-0 rated flame retardant plastic
• Contact Material: Gold-plated phosphor bronze springs
• Mounting: Direct attachment to compatible modules
• Battery compartment: Secure latch mechanism
• Indicator window: Battery status visibility
• Weight: 19.01 ounces (539 grams) including packaging

Environmental Specifications

• Operating Temperature: -40°F to 185°F (-40°C to 85°C)
• Storage Temperature: -40°F to 185°F (-40°C to 85°C)
• Humidity Range: 95% maximum non-condensing
• Vibration resistance: 5-500 Hz, 2g amplitude
• Shock tolerance: 50g for 11ms duration
• IP rating: IP20 for indoor industrial use

Shipping & Package Information

• Individual 140XCP90000 module in protective packaging
• Package dimensions: 12.40" × 6.50" × 1.97" (31.5 × 16.5 × 5.0 cm)
• Shipping weight: 19.01 ounces (539 grams)
• Express delivery via FedEx, UPS, and DHL available
• Complete 12-month product warranty coverage

Installation & Maintenance Guidance

• What battery replacement schedule ensures reliable backup operation?
• Replace batteries every 3-4 years or when low battery indicators activate in your system diagnostics.
• How does the module maintain critical data during power failures?
• Automatic switchover circuitry instantly provides backup power to preserve memory and critical settings.
• What safety features protect against battery-related issues?
• Reverse polarity protection and short-circuit prevention ensure safe operation during installation and use.
• How do environmental conditions affect battery performance and lifespan?
• High temperatures accelerate battery aging while extremely low temperatures temporarily reduce capacity.
• What diagnostic methods verify proper battery module operation?
• System diagnostics monitor battery voltage and provide early warnings for planned maintenance replacement.
