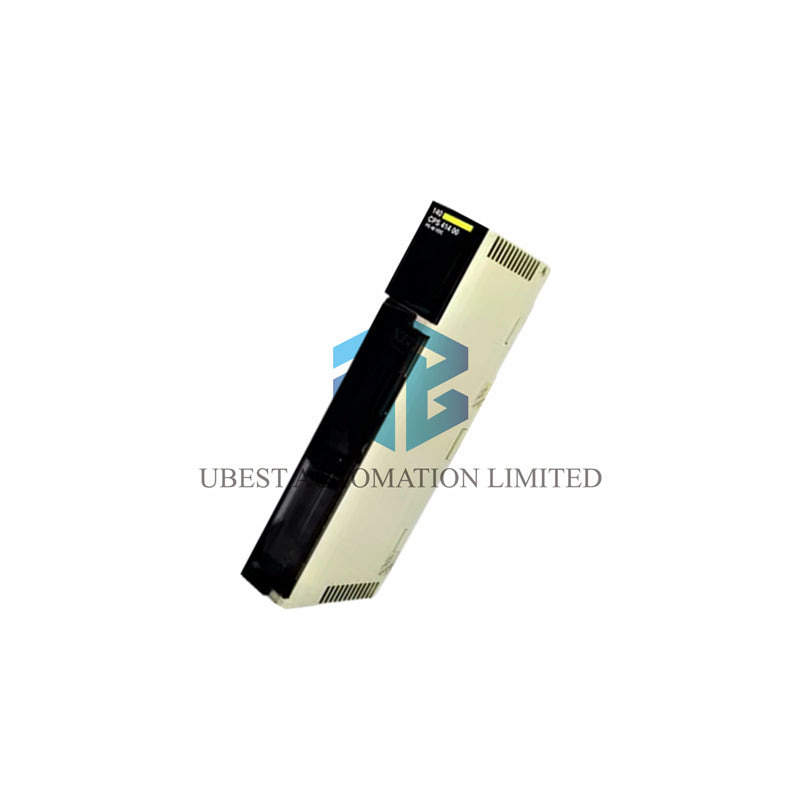

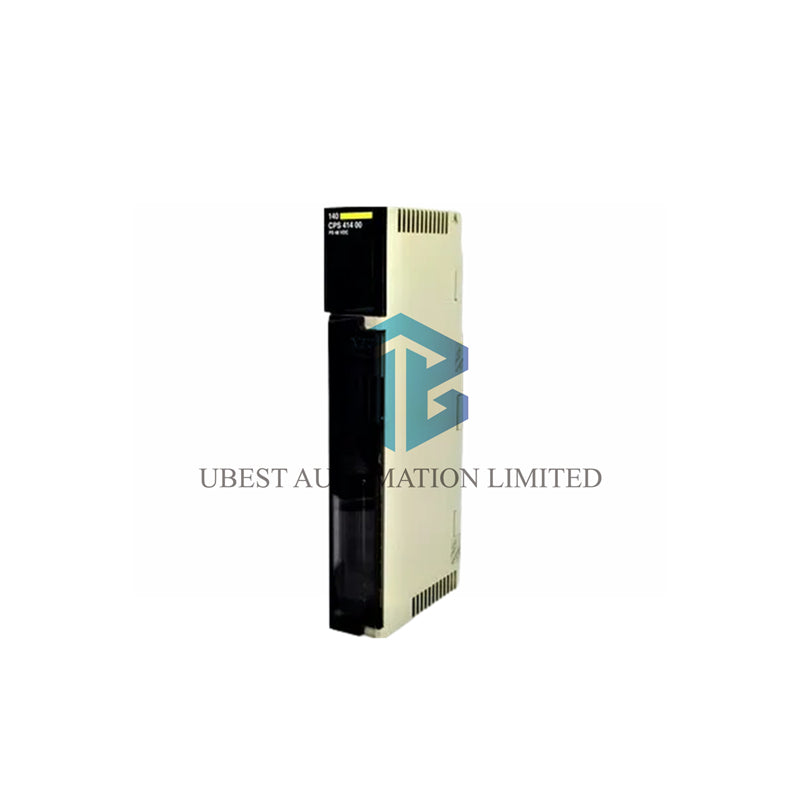

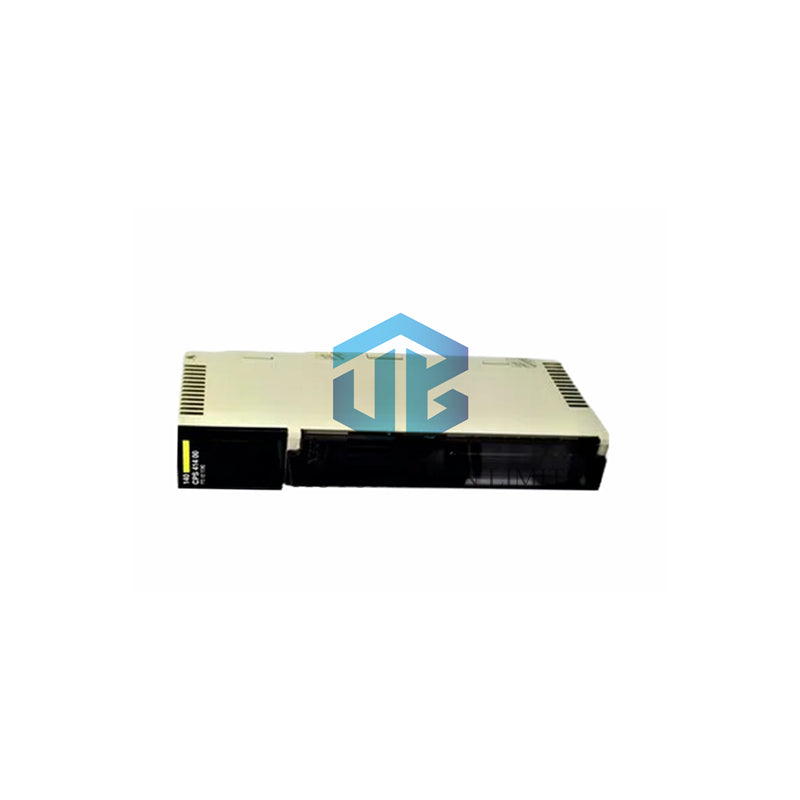

Schneider Electric 140CPS41400 Power Supply Module

Power up your automation system with these great benefits:

• Summable design for expanded power needs
• Wide input voltage range for flexibility
• Built-in protection against overloads and spikes
• Easy installation in Quantum racks
• Reliable operation in tough environments

Quick Facts

• Brand: Schneider Electric
• Model: 140CPS41400
• Series: Modicon Quantum
• This 140CPS41400 module gives reliable DC power.
• It works in the Quantum automation platform.
• The power supply can sum with others for more power.

Power Specifications

• Input Voltage: 48-60V DC range
• Input Current: 3800 mA maximum
• Output Voltage: 5.1V DC stable
• Output Current: 8A summable power
• Inrush Current: 14A at 40V limit
• Backup Time: 13ms at 48V input
• Efficiency Rating: >85% typical
• Ripple Noise: <50mV peak to peak

Protection & Safety

• Internal overload protection circuit
• Internal overvoltage protection
• Requires 2A time-lag fuse
• 4kV contact discharge protection
• 8kV air discharge protection
• CE and cUL safety marks
• Meets UL 508 standards

Environmental Ratings

• Operating Temp: 0°C to +60°C
• Storage Temp: -40°C to +85°C
• Humidity: 95% non-condensing
• Altitude: Up to 5000 meters
• EMC Immunity: 10V/m 80-2000MHz

Physical Details

• Weight: 1.43 pounds (0.65 kg)
• Format: Standard module size
• Green LED shows power status
• 1 NC alarm contact for faults
• Alarm rating: 6A at 220V

Shipping & Support

• Fast worldwide shipping available
• We use FedEx, UPS, and DHL carriers
• Single unit package: 12.28 x 6.42 x 1.77 inches
• Package weight: 28.7 ounces (815g)
• All items include 12-month warranty
• Quick technical support response

Common Questions

• Can I parallel multiple units together?
• Yes, the summable design allows parallel operation for more current.
• What happens during power failure?
• The module holds output for 13ms during 48V input breaks.
• How do I know if it's working properly?
• The green PWR OK LED lights when output is normal.
• What fuse should I use with this unit?
• Use a 2A time-lag type fuse for best protection.
• Can it work in high temperature areas?
• Yes, it operates in temperatures up to 60°C (140°F).
