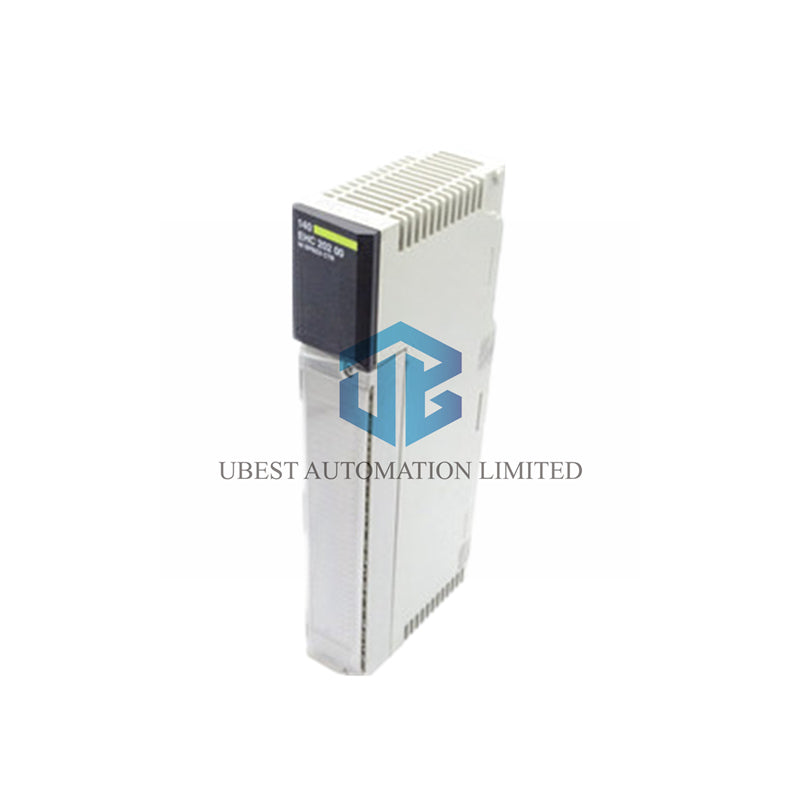

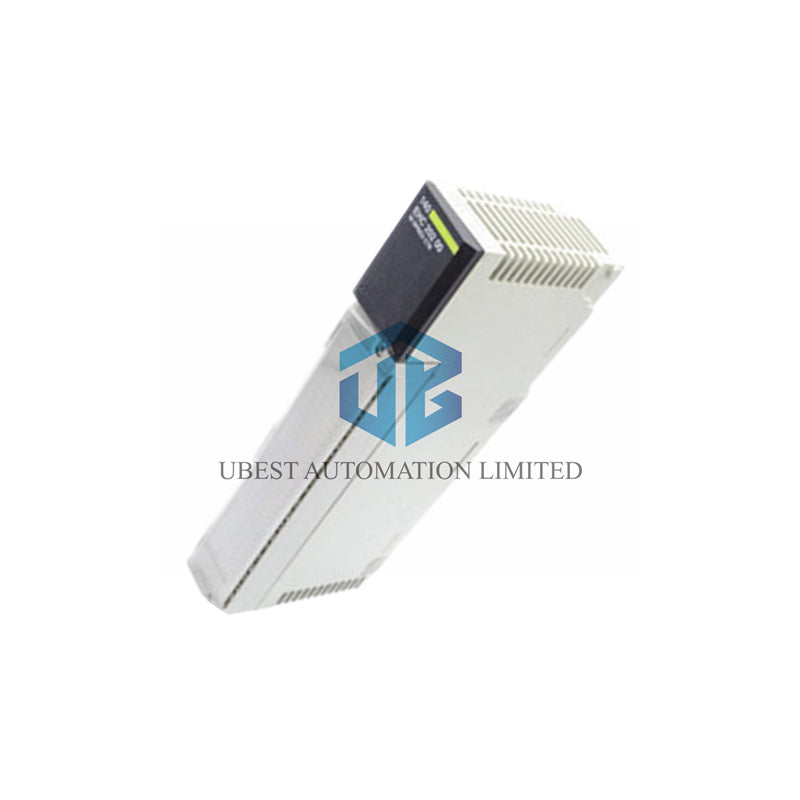

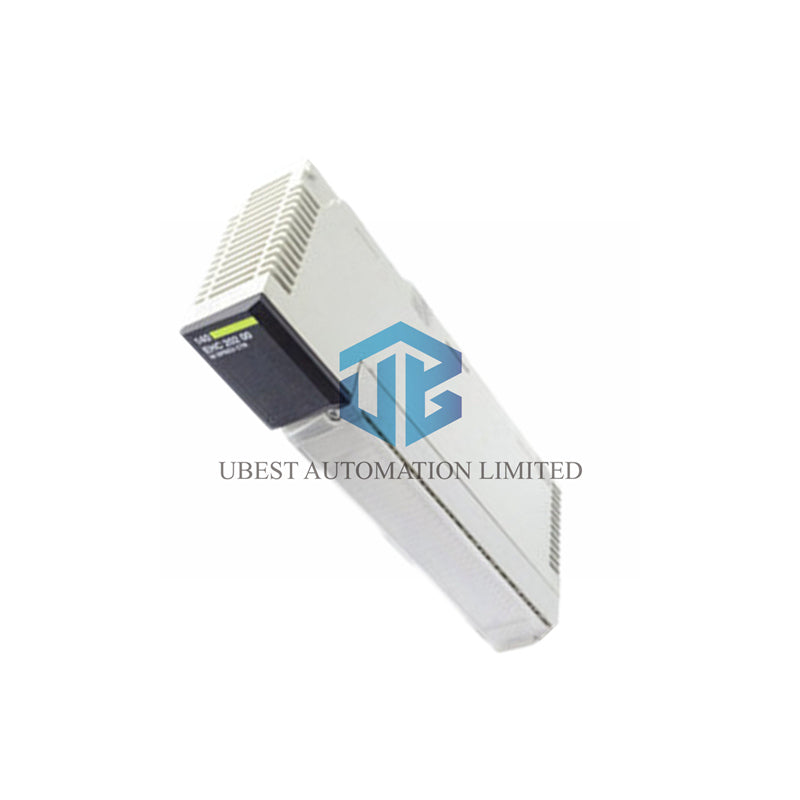

Schneider Electric 140EHC20200 High-Speed Counter Module
- Ultra-Fast Counting to 500 kHz
- Ready to Ship Today
- Complete Quadrature Support
- Expert Technical Assistance
Precision High-Speed Counting
The 140EHC20200 delivers exceptional counting performance for demanding applications. This dual-channel module handles frequencies up to 500,000 Hz with 32-bit precision.
Advanced Capabilities
Ultra-high speed - 500 kHz counting frequency
Dual channel operation - Two independent counters
Quadrature support - Incremental encoder compatible
Integrated outputs - 4 FET outputs for control
Large data format - 32-bit counting range
Performance Specifications
Brand: Schneider Electric
Model: 140EHC20200
Counting Channels: 2 independent
Maximum Frequency: 500,000 Hz
Data Format: 32-bit (2,147,483,647 max)
Input Types: Incremental & quadrature
Input Resistance: 10 kOhm
Output Channels: 4 FET type
Output Current: 0.5A per output
External Power: 19.2-30V DC
Bus Current: 650 mA required
Isolation: 1780V RMS to bus
Operating Temp: 0°C to 60°C
Weight: 444g (15.7oz)
System Integration
Addressing Needs: 6 input + 6 output words
Rack Compatibility: Local, Remote, Distributed
Output Protection: 2.5A fuse + 36V transorb
Power Dissipation: 4W + (0.4 x load current)
Package Contents
1 x 140EHC20200 Counter Module
Installation documentation
Shipping & Warranty
Express delivery via FedEx, UPS, DHL
12-month reliability warranty
Easy returns available
Technical Questions
What applications need this high-speed counter?
Perfect for encoder feedback, production counting, rotary equipment, and precision measurement systems.
How many encoder inputs can it handle?
It supports two independent encoder inputs with quadrature decoding capability.
What is the maximum count value?
The 32-bit counter can reach 2,147,483,647 counts before rollover.
Can it control devices directly?
Yes, with four 0.5A FET outputs for controlling relays, solenoids, or indicators.
What power supply is required?
It needs 19.2-30V DC external power and consumes up to 1050mA at 24V.
