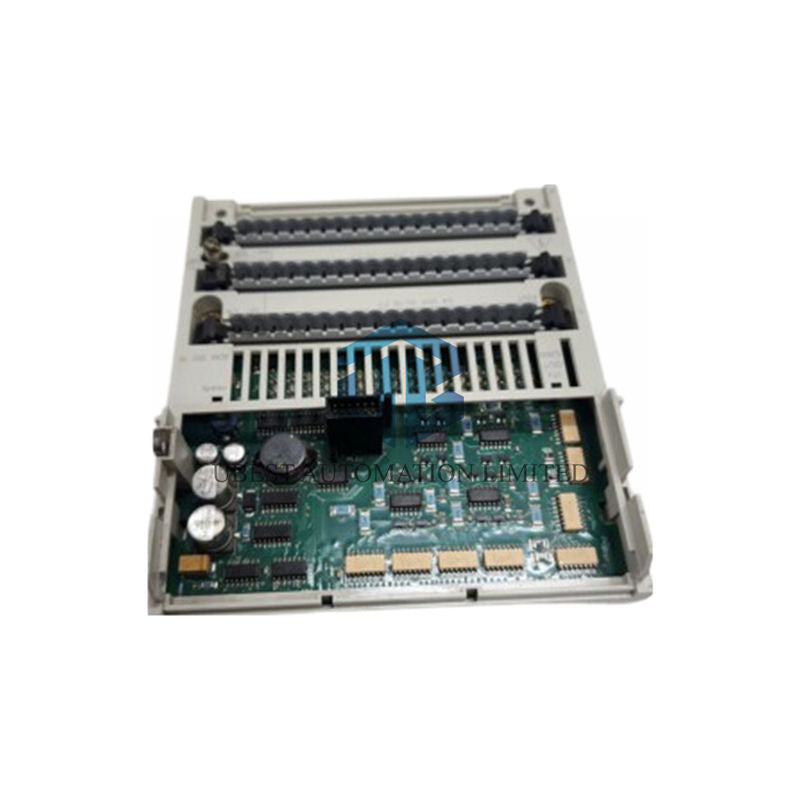

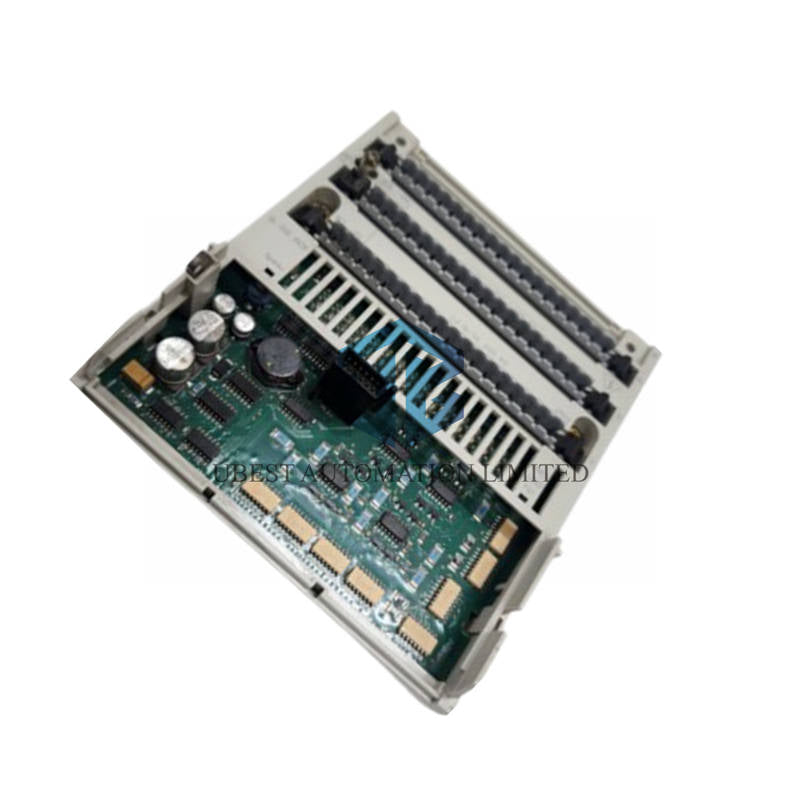

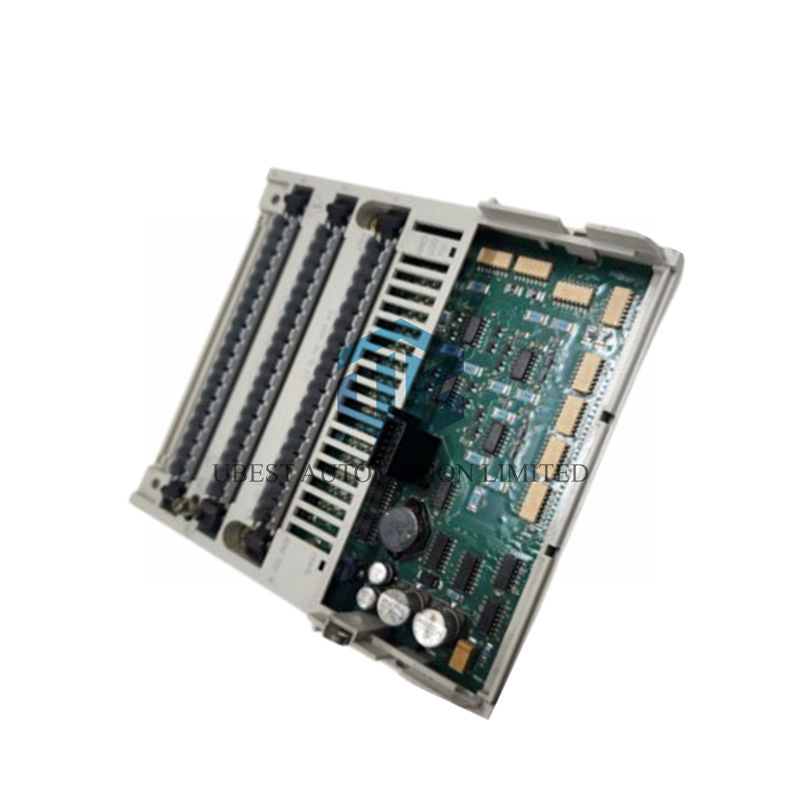

Schneider Electric 170ADM35015 I/O Module
Reliable DC input/output module for industrial control systems. This solid-state module offers 16 inputs and 16 outputs in one compact unit. Perfect for factory automation and machine control.
- Fast response times
- Easy installation
- Solid-state reliability
- Immediate shipping available
Technical Specifications
Brand: Schneider Electric
Model: 170ADM35015
Product Line: Modicon Momentum
Module Type: Discrete I/O Module
Input Channels: 16 DC Inputs
Output Channels: 16 DC Outputs
Input Voltage: 3-30V DC
Output Voltage: 24V DC Nominal
Input Current: ≥2.5 mA
Output Current: 0.5A per point
Total Module Current: 8A maximum
Input Response: 2.2ms ON, 3.3ms OFF
Output Response: <0.1ms
Isolation Voltage: 500V AC
Power Consumption: ≤8W
Operating Temperature: 0°C to 60°C
Product Weight: 0.23 kg
Standards: IEC 1131-2 Type 1
Compatibility
Designed for Modicon Momentum systems. Works with various DC sensors and actuators in industrial environments.
Installation Guide
Mount on DIN rail. Connect field devices to terminals. Wire power supply. Module is ready for operation.
Package Contents
• 170ADM35015 I/O Module
• Installation documentation
• Quality assurance certificate
Warranty Information
We provide 12-month complete protection against manufacturing defects and component failures.
Shipping Options
Fast worldwide delivery via FedEx, UPS, and DHL. Most orders processed within 24 hours.
Frequently Asked Questions
What does negative logic mean for inputs and outputs?
Inputs are sinking (current flows into module) and outputs are sourcing (current flows from module).
How many devices can each output point control?
Each output handles 0.5A, suitable for small relays, solenoids, and indicator lights.
What's the advantage of fast response times?
Quick response allows for precise control in high-speed automation and timing-critical applications.
Can this module handle high-voltage spikes?
500V isolation protects against voltage spikes and noise in industrial environments.
Is special wiring required for installation?
Standard industrial wiring practices apply. Follow local electrical codes and manufacturer guidelines.
