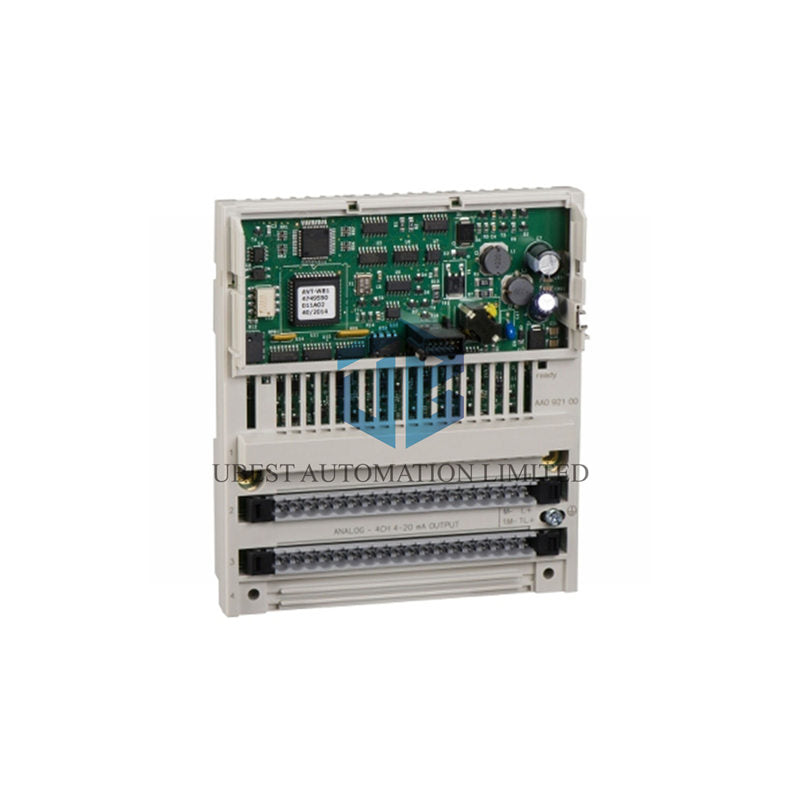

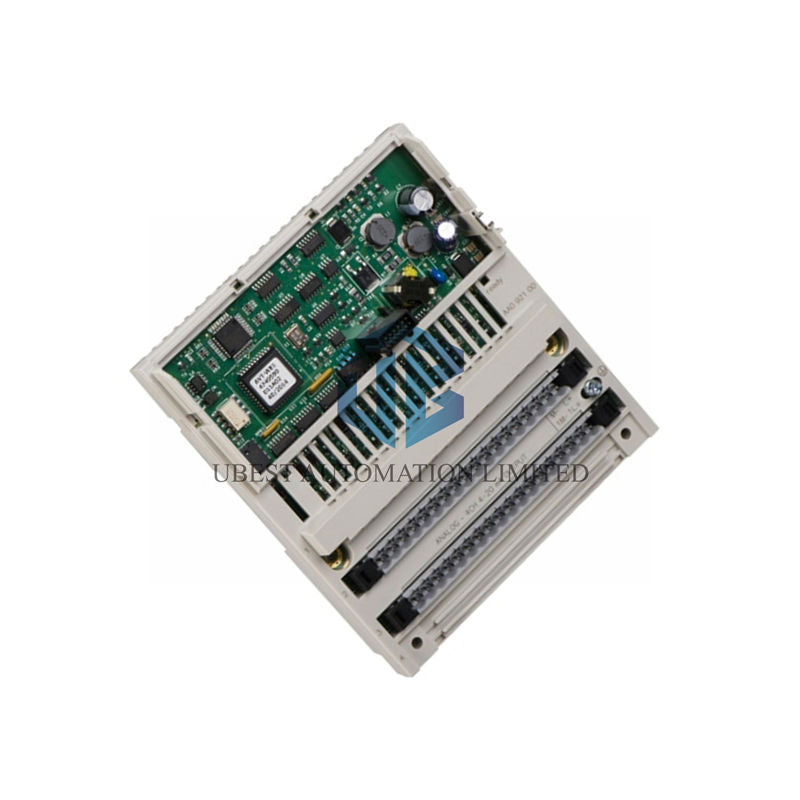

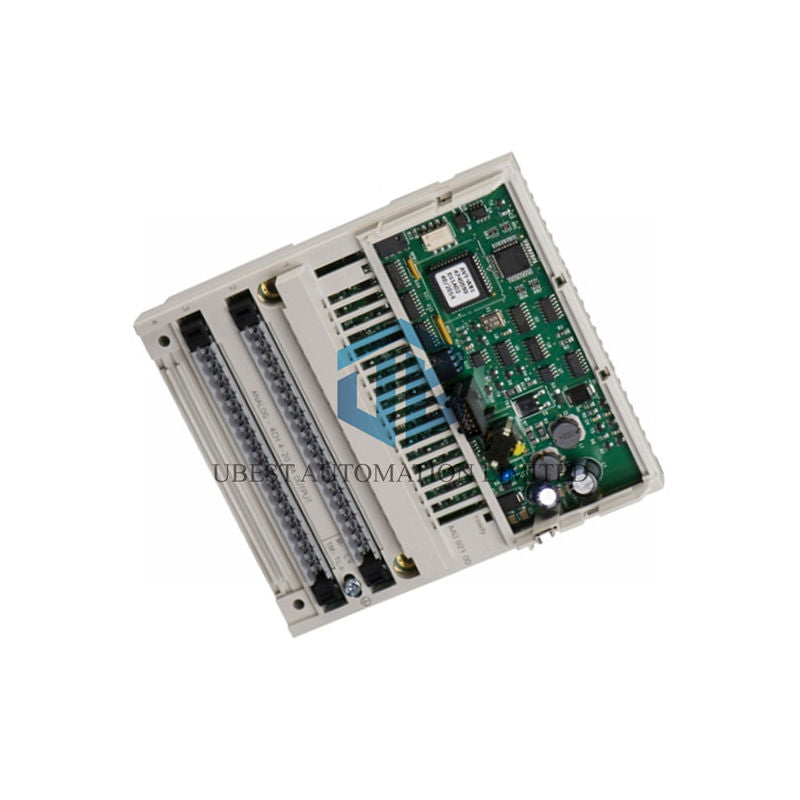

Schneider Electric 170AAO92100 Analog Output Base Module

Precision Control Solution

• The 170AAO92100 delivers exceptional analog signal accuracy for industrial automation.
• Schneider Electric engineered this Momentum module with four independent outputs.
• Full 16-bit signed data format ensures superior resolution and signal quality.
• Rapid 2ms update time enables real-time control system responsiveness.
• Robust 500V AC channel isolation provides enhanced electrical safety.

Technical Performance Specifications

• Manufacturer: Schneider Electric
• Model Number: 170AAO92100
• Output Channels: 4 Independent Analog Outputs
• Resolution: 16-Bit Signed Data Format
• Update Speed: 2 Millisecond Response Time
• Isolation Rating: 500V AC for 1 Minute
• Power Handling: 8.5 Watts Maximum Dissipation
• Protection: Internal Reverse Polarity Safety
• Operating Range: 0°C to 60°C Temperature
• Humidity Tolerance: 95% Non-Condensing Maximum
• Physical Dimensions: 4.9" x 1.9" x 5.6" Compact Design
• Product Weight: 0.50 lbs (0.23 kg) Lightweight

Installation & Configuration

• The standard module format simplifies integration into existing racks.
• Reverse polarity protection prevents damage during wiring installation.
• Compact dimensions allow flexible mounting in control cabinets.
• Spring-clamp terminals enable secure and reliable wire connections.
• Hot-swappable design supports maintenance without system shutdown.

Environmental Durability

• Wide operating temperature range ensures stability in harsh conditions.
• Extended storage tolerance from -40°C to 85°C protects during downtime.
• High humidity resistance maintains performance in damp environments.
• Vibration-resistant construction withstands industrial machinery effects.
• EMI protection minimizes interference from nearby electrical equipment.

Packaging & Delivery

• Each unit arrives in protective anti-static packaging materials.
• Complete installation documentation accompanies every shipment.
• We provide global express shipping via FedEx, UPS, and DHL.
• Order processing typically completes within one business day.
• Real-time tracking information becomes available after dispatch.
• All products include comprehensive 12-month warranty coverage.

Professional Applications

• Process control systems requiring precise analog signal generation.
• Industrial automation applications with multiple output needs.
• Manufacturing environments demanding reliable signal integrity.
• Control cabinets where space optimization remains critical.
• Systems requiring electrical isolation between channels and ground.

Expert Frequently Asked Questions

• What applications benefit most from this analog output module?
• Process control and automation systems needing four precise outputs gain significant advantages from the 170AAO92100.
• How does the 16-bit resolution improve system performance?
• Higher resolution provides finer control granularity and reduces signal quantization errors in critical applications.
• Can this module withstand voltage spikes in industrial settings?
• The 500V AC isolation rating offers substantial protection against common industrial electrical disturbances.
• What happens if someone connects power wiring incorrectly?
• Internal reverse polarity protection circuitry prevents damage from accidental reverse power connections.
• Is special software required for configuration and operation?
• Standard Momentum configuration tools work seamlessly with this module for straightforward setup.
