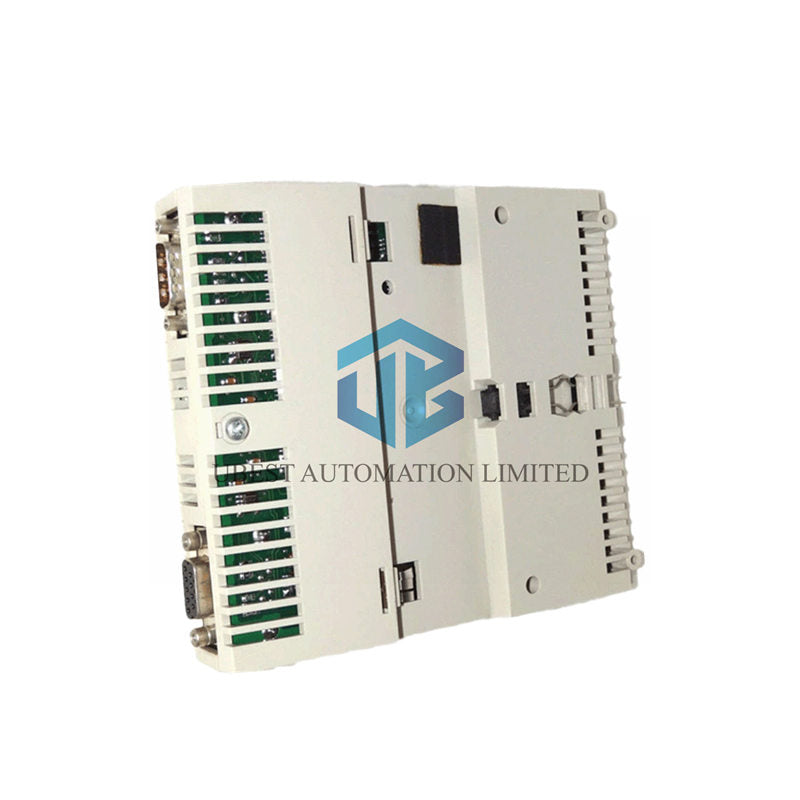

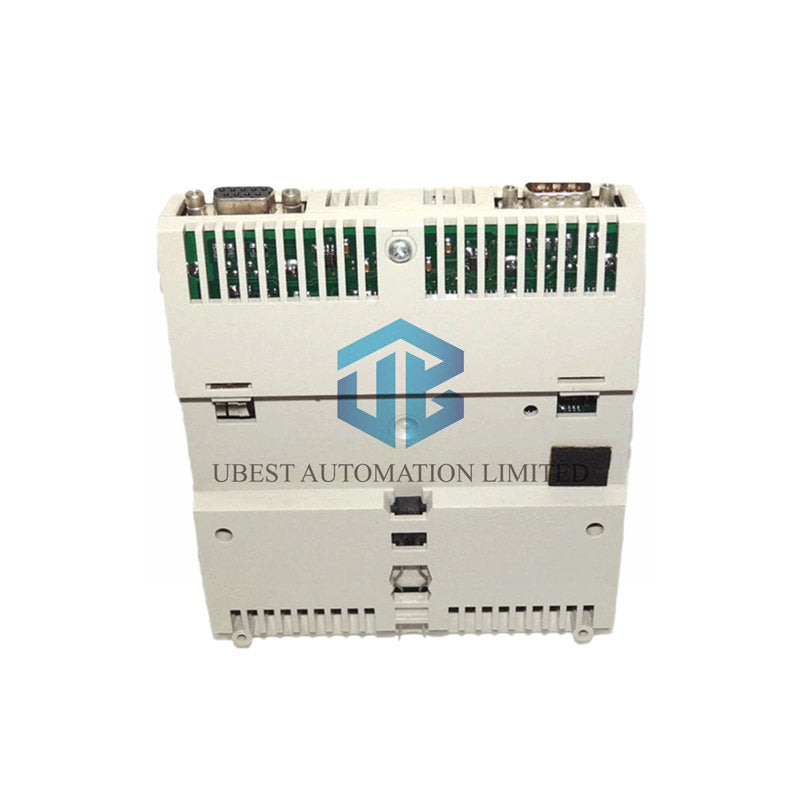

Schneider Electric 170BAI03600 Analog Input Module
Precision measurement solution for industrial automation. This 8-channel module reads multiple sensor signals accurately. Ideal for process control and monitoring applications.
- Multi-channel input capability
- High accuracy sensing
- Industrial grade durability
- Ready for immediate dispatch
Technical Specifications
Manufacturer: Schneider Electric
Product Code: 170BAI03600
Series Name: Modicon Momentum
Module Type: Analog Input
Input Channels: 8 isolated channels
Power Supply: 24V DC
Current Consumption: 1A maximum
Input Resolution: 16-bit
Sampling Rate: 100 samples/second
Input Ranges: 0-10V, 0-20mA, 4-20mA
Accuracy: ±0.1% full scale
Isolation: 500V channel to bus
Operating Temp: 0°C to +60°C
Storage Temp: -40°C to +85°C
Humidity Range: Up to 80% non-condensing
Altitude Rating: 1000 meters maximum
Product Weight: 0.34 kg
Connection Type: Removable terminal blocks
Compatibility Notes
Works with Modicon Momentum platforms. Connects to various analog sensors including temperature, pressure, and flow devices.
Installation Guide
Mount on standard DIN rail. Connect sensor wires to terminals. Apply 24V DC power. Configure input ranges as needed.
Package Contents
• 170BAI03600 Analog Input Module
• Installation guide
• Technical data sheet
Warranty Details
We offer 12-month quality assurance covering all components and workmanship.
Shipping Methods
Fast global delivery via FedEx, UPS, and DHL. Orders typically ship within one business day.
Frequently Asked Questions
What types of sensors can connect to this module?
It accepts voltage and current signals from pressure transmitters, temperature sensors, level gauges, and similar devices.
How is the input range selected?
Configuration is done through software or hardware settings depending on your control system requirements.
Can all 8 channels be used simultaneously?
Yes, all channels operate independently and can monitor different sensor types at the same time.
What is the advantage of 16-bit resolution?
Higher resolution provides more precise measurements, detecting smaller changes in process variables.
Is special wiring needed for noisy environments?
Use shielded cables and proper grounding practices in areas with electrical interference for best performance.
