Siemens S7-1200 Entry-Level CPU: Compact AC-Powered Controller

• Direct AC Power: Connects to 85-264V AC mains without extra power supply.
• Relay Outputs: 6 relay contacts (2A) for switching AC/DC loads directly.
• Analog Monitoring: 2 built-in analog inputs for voltage measurement.
• Network Ready: Integrated PROFINET port for HMI and PC connection.
• Expandable: Add up to 2 signal modules for more I/O points.

Product Overview

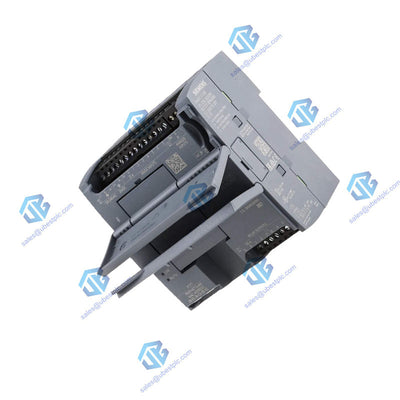

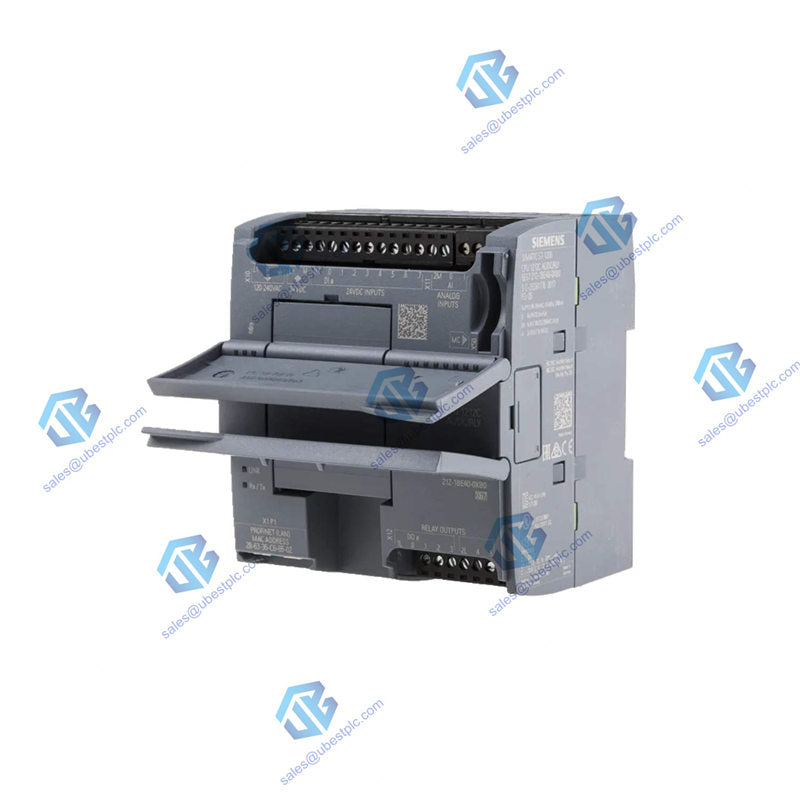

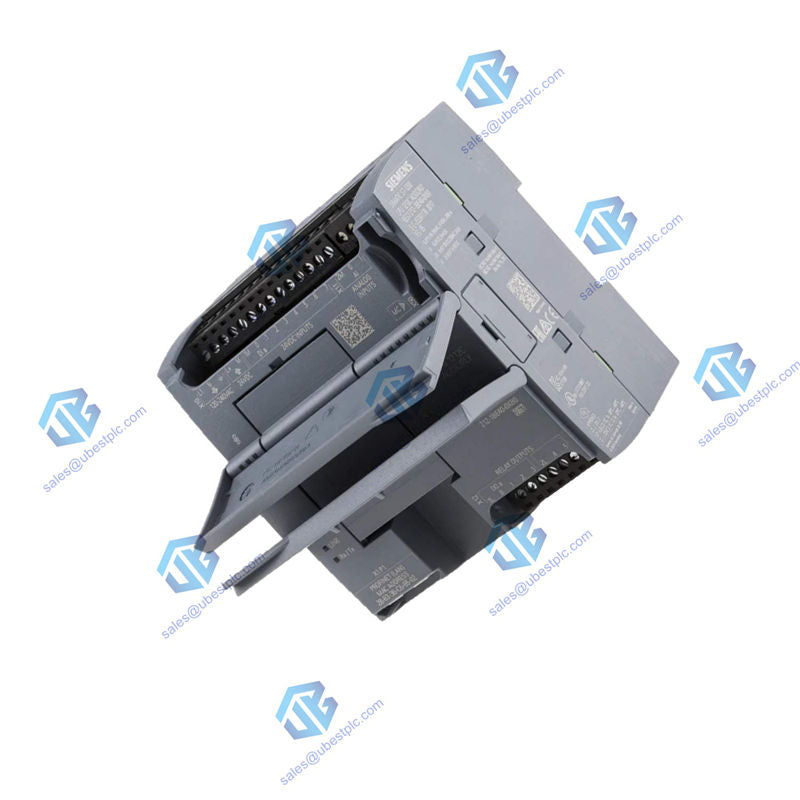

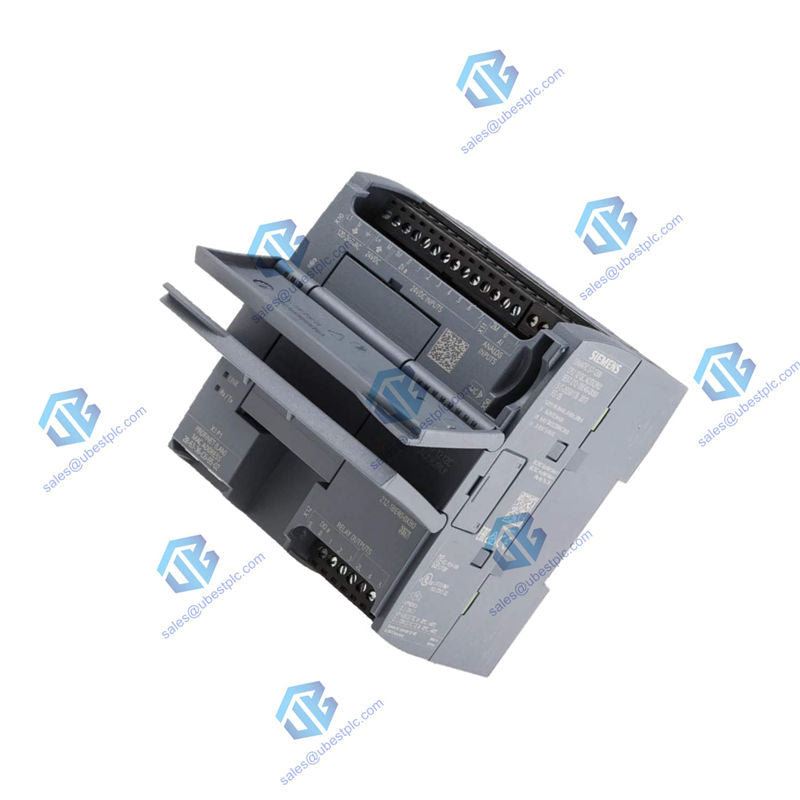

The Siemens 6ES7212-1BE40-0XB0 is an entry-level compact CPU for the SIMATIC S7-1200 series. This CPU 1212C AC/DC/Relay model offers essential automation functions in a cost-effective package. With direct AC power connection and versatile relay outputs, it's perfect for small machines and basic control applications.

Technical Specifications

Brand & Model: Siemens 6ES7212-1BE40-0XB0

CPU Type: 1212C AC/DC/Relay

Power Supply: 85 - 264 V AC (47-63 Hz)

Work Memory: 75 KB

Load Memory: 2 MB internal

Onboard Digital Inputs (DI): 8 x 24V DC

Onboard Digital Outputs (DO): 6 x Relay (2 A)

Onboard Analog Inputs (AI): 2 x 0-10V DC

Communication Port: 1 x PROFINET (100 Mbit/s)

High-Speed Counters (HSC): 6 channels (up to 100 kHz)

Maximum Expansion: 2 signal modules + 1 signal board + 3 communication modules

Backplane Current: 1000 mA at 5V DC for expansion modules

Relay Contact Life: 10 million mechanical operations

Operating Temperature: -20°C to 60°C (horizontal)

Dimensions (W x H x D): 90 mm x 100 mm x 75 mm

Weight: Approx. 425 g

Programming Software: STEP 7 (TIA Portal) V16 or higher

FAQs

What makes this a good "entry-level" CPU?

It provides all basic PLC functions at a lower cost point, with enough I/O for simple applications and the ability to expand if needed.

Can I control 240V AC devices with the relay outputs?

Yes, the relay outputs can switch up to 240V AC at 2A, making them suitable for controlling contactors, motor starters, or lighting.

How many additional I/O modules can I add?

You can add up to 2 additional signal modules, which can significantly increase your total I/O count for more complex applications.

Does it support communication with other devices?

Yes, through its PROFINET port it can communicate with HMIs, other PLCs, and support protocols like Modbus TCP for device connectivity.

What's the advantage of AC power input?

It eliminates the need for a separate 24V DC power supply in your control panel, simplifying your electrical design and reducing component costs.

Warranty & Shipping

This product comes with a 12-month comprehensive warranty. We provide fast international shipping via FedEx, UPS, and DHL carriers.
