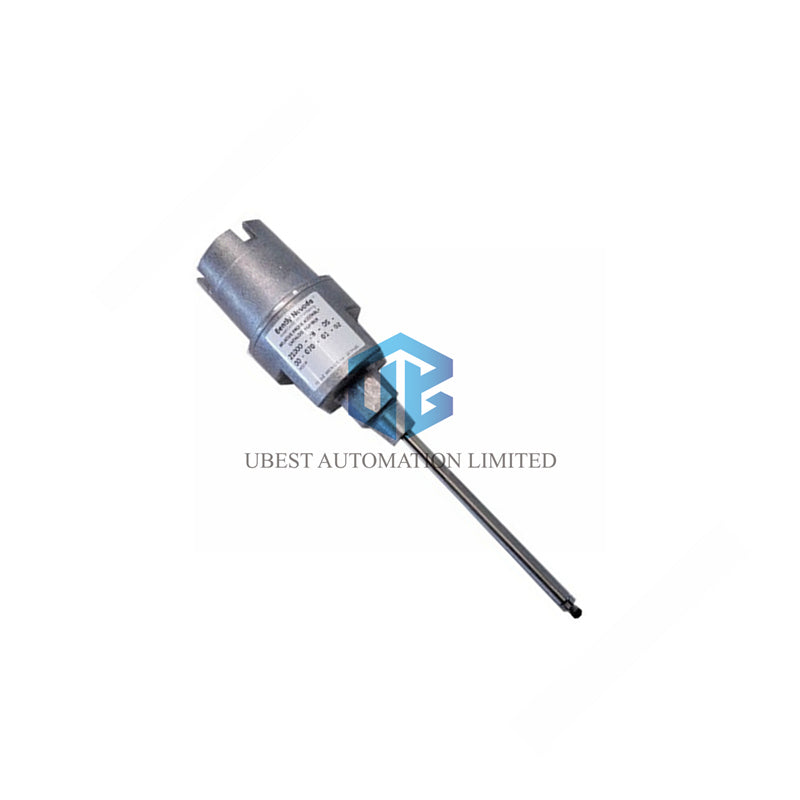

Bently Nevada Compact Probe Housing with Deep Penetration
Discover the versatile 21000-16-05-15-114-03-02 featuring 11.4-inch penetration with compact 0.5-meter cable. This professional housing assembly combines deep reach with space-saving design. The 21000-16-05-15-114-03-02 delivers optimal performance in confined spaces requiring significant probe extension. Perfect for installations with limited cable routing space.
Compact Design Features
- Probe Penetration: 11.4 inches deep capability
- Cable Length: 0.5 meter (20 inches) compact
- Standoff Adapter: 1.5 inches (38 mm) included
- Total System Length: 13.5 inches maximum
- Probe Visibility: Not visible after installation
- Probe Type: 3300 XL 8mm industrial sensor
Installation Requirements
- Sleeve Support: Required for 11.4-inch penetration
- Resonance Prevention: Critical for stable operation
- Penetration Adjustment: 13 mm (±0.5 inch) range
- Counter Boring: Recommended for 1.0-2.0 inch depths
- Mounting Thread: 3/4-14 NPT standard
- System Weight: 1.1 kg without fittings
Construction Details
- Housing Material: Aluminum durable construction
- Sleeve Material: 304 stainless steel corrosion-resistant
- Sealing System: Multiple O-rings for protection
- Cover Design: Screw-in dome for maintenance
- Identification: Flag labels for hidden probes
- Thread Protection: Quality seal included
Complete Fittings Package
- 3/4-14 NPT plug for port sealing
- 3/4-14 to 1/2-14 NPT reducer
- Universal cable seal grip system
- Three size grommets for cable management
- 1/8 to 3/16 inch cable accommodation
- 1/4 to 5/16 inch cable compatibility
- 5/16 to 3/8 inch cable support
Safety Certifications
- CSA Certified: Explosion-proof construction
- Class 1 Division 1: Groups C and D hazardous areas
- Class 2 Division 1: Groups E, F, G environments
- Type 4 Enclosure: Complete environmental protection
- T5 Rating: -50°C to +40°C operation
- T4 Rating: -50°C to +80°C capability
Industry Compliance
- API 670 Standard: Fully compliant design
- RoHS Directive: 2011/65/EU environmental
- FCC Part 15: Electromagnetic compliance
- Non-incendive: When installed per drawing 140979
- Class III: Additional hazardous area rating
Model Configuration Details
- 21000 - Base Housing Assembly
- 16 - 3300 XL 8mm Probe
- 05 - 0.5 Meter Compact Cable
- 15 - 1.5 Inch Standoff
- 114 - 11.4 Inch Penetration
- 03 - Complete Fittings Package
- 02 - 3/4-14 NPT Mounting
Service & Support
- 12-month comprehensive warranty
- FedEx Express worldwide delivery
- UPS Global shipping service
- DHL International options available
- Fast order processing
- Complete tracking provided
Technical Questions
Why choose 0.5-meter cable length?
Compact cable ideal for installations with limited space and short connection distances.
How do I identify the probe after installation?
Use flag labels since the probe becomes not visible with this deep penetration configuration.
What applications need this combination?
Space-constrained installations requiring deep probe penetration benefit from this compact design.
Is sleeve support necessary?
Yes, mandatory for this 11.4-inch penetration to prevent mechanical resonance issues.
Can I access the probe for maintenance?
The screw-in dome cover provides easy access for probe inspection and maintenance when needed.
