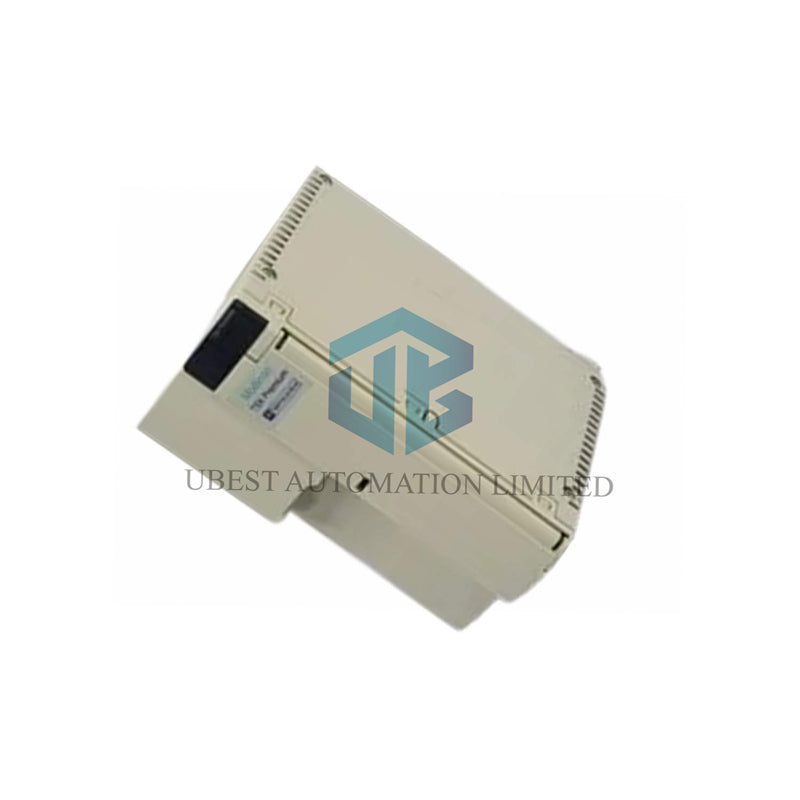

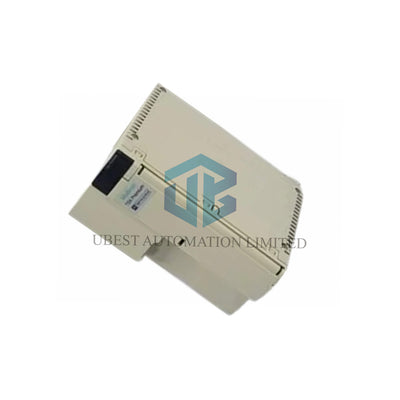

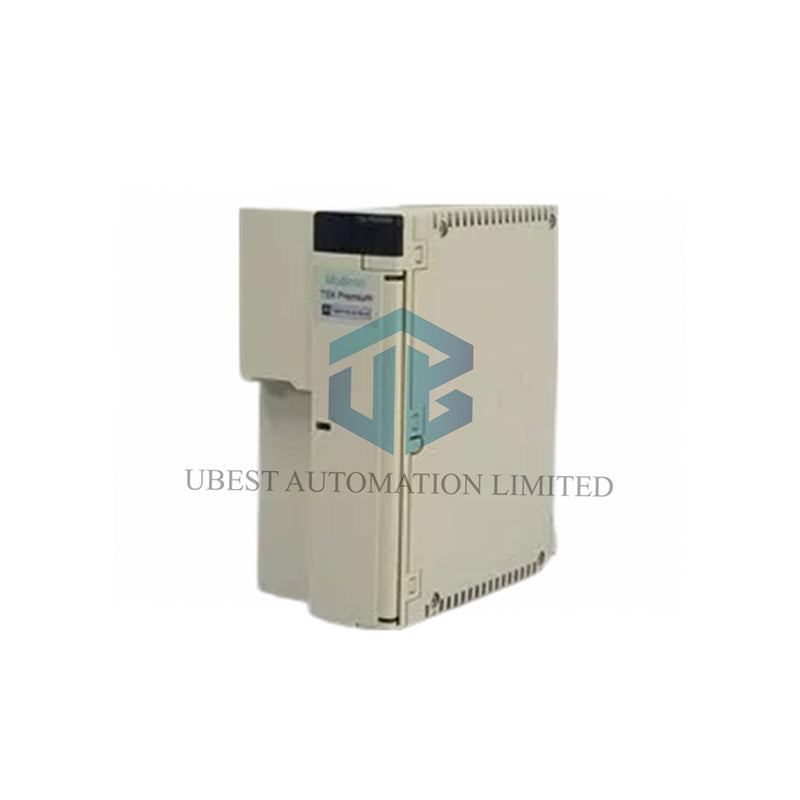

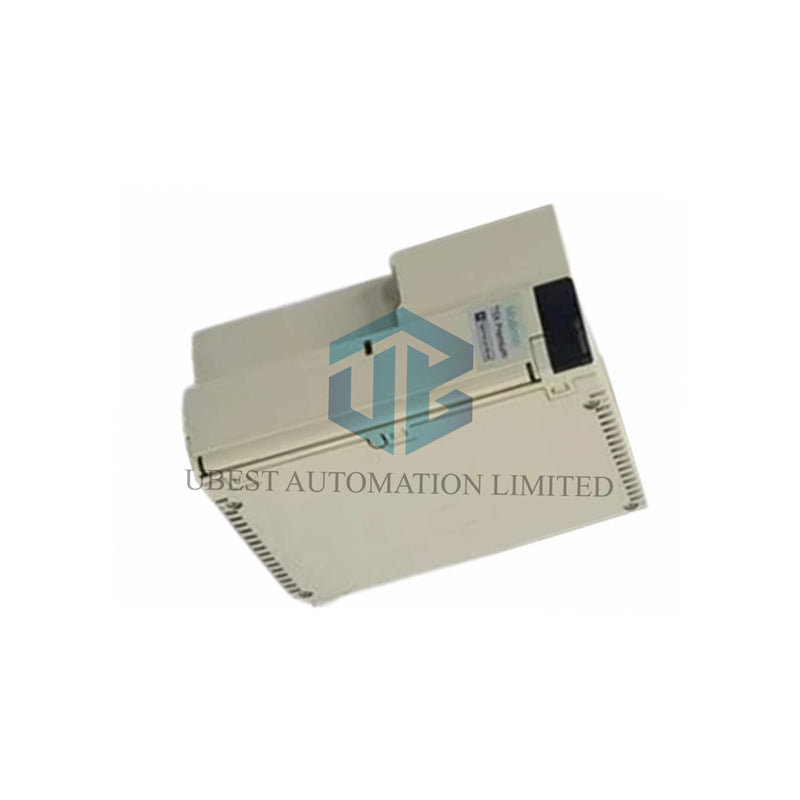

Schneider Electric TSXPSY5500M Power Supply Module

The TSXPSY5500M is a versatile power supply for Schneider Electric's TSX Micro PLCs. It delivers clean power for your entire control system. This module supports both 120V and 240V AC input for global application.

Core Technical Specifications

• Brand & Model: Schneider Electric TSXPSY5500M
• Input Voltage: 100-120V AC / 200-240V AC (Auto-range)
• Input Frequency: 50/60 Hz (47-63 Hz range)
• Total Output Power: 50 Watts
• Logic Power: 5V DC @ 7A (35W)
• Auxiliary Power: 24V DC @ 0.8A (Sensor) & 0.8A (Relay) - 19W total
• Input Current: 500mA @ 240V AC / 1700mA @ 100V AC
• Inrush Current: 38A (max)
• Protection Class: IP20

Protection & Safety Features

• Primary Protection: Internal 4A time-delay fuse on the AC input.
• Secondary Protections: Overload, overvoltage, and short-circuit protection on all DC outputs.
• Electrical Isolation: 2000V isolation between primary (AC) and secondary (DC) sides.
• Dielectric Strength: Meets 2000V primary-to-earth and primary-to-secondary standards.
• Immunity: Can withstand micro-breaks in power of up to 10 milliseconds.

Physical & Environmental Details

• Module Format: Double-width module for TSX Micro rack.
• Net Weight: 1.37 lbs (0.62 kg).
• Operating Temperature: 32°F to 140°F (0°C to 60°C).
• Storage Temperature: -13°F to 158°F (-25°C to 70°C).
• Operating Humidity: 10% to 95% non-condensing.
• Operating Altitude: 0 to 6,562 feet (0 to 2,000 meters).
• Protective Treatment: TC (conformal coating) applied.

Status Indication & Wiring

• LED Indicators:
  • Green "OK" LED: Indicates primary power is present.
  • Green "24V" LED: Indicates 24V sensor power is active.
  • Red "BAT" LED: Indicates a fault with the CPU backup battery (if used).
• Certifications: CE, UL 508, CSA, and major marine approvals (ABS, DNV, GL, etc.).

Package & Support Information

• Package Contents: One new TSXPSY5500M power supply module.
• Shipping: Fast and reliable delivery via FedEx, UPS, or DHL.
• Warranty: Backed by a 12-month product warranty.
• Compatibility: Designed for Modicon TSX Micro PLC systems.

Frequently Asked Questions

• Q: What systems is this power supply designed for?
• A: It is the dedicated power supply module for Schneider Electric's Modicon TSX Micro programmable logic controller racks and their associated I/O modules.
• Q: Do I need to set a switch for 120V or 240V input?
• A: No. The TSXPSY5500M features auto-ranging input. It will automatically accept any voltage between 85-264V AC without manual configuration.
• Q: Can it power external devices like sensors?
• A: Yes. It provides a dedicated 24V DC output rated at 0.8A, which is perfect for powering a bank of proximity sensors, photoelectric eyes, or other low-power field devices.
• Q: What does the red "BAT" fault light mean?
• A> This LED lights up if the backup battery on the connected TSX Micro CPU is missing, depleted, or faulty. It does not indicate a fault with the power supply itself.
• Q: Is it safe for use in harsh industrial environments?
• A> Yes. With its IP20 rating, conformal coating (TC), wide operating temperature, and robust electrical protections, it is built for the factory floor.
