The Hidden Cost Driver in Control Systems

When purchasing a Programmable Logic Controller (PLC), initial price and performance specs often dominate the discussion. However, the true cost of ownership in industrial automation systems emerges much later. Maintenance procedures significantly affect your long-term budget. A system that is cheap to buy can become exceptionally expensive to maintain. This cost disparity often centers on the choice between compact and modular PLC architectures. We will explore these trade-offs and link to relevant parts available at Industrial Automation Co.

Compact vs. Modular: A Foundational Difference

The difference between compact and modular PLCs is fundamental. Compact PLCs integrate the Central Processing Unit (CPU), power supply, and a fixed count of Input/Output (I/O) points into a single, enclosed housing. This simplicity offers two immediate benefits: reduced cabinet space and a lower initial purchase price. They serve as a fixed "appliance" suitable for small machines or stable, unchanging applications.

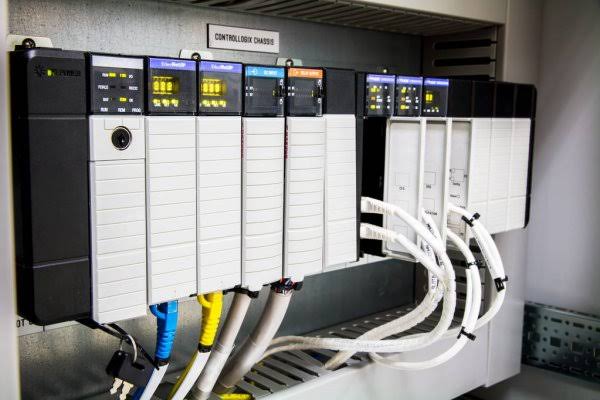

In contrast, Modular PLCs utilize a rack-based design. The CPU, power supply, communication modules, and I/O are separate cards that plug into a chassis. While this raises the upfront hardware investment, it grants granular control over configuration and, crucially, maintenance. The ability to swap individual components is the key differentiator for large-scale factory automation.

Understanding Compact PLC Maintenance Dynamics

The compact approach shines when application requirements remain static. Fewer components mean fewer potential points of failure, streamlining installation across identical Original Equipment Manufacturer (OEM) machines. However, this simplicity creates major friction when a failure occurs or the system needs to expand.

Elevated Replacement Cost and Downtime: A single fault—even a small I/O point—often necessitates replacing the entire unit. This results in a higher spare parts cost and extended downtime compared to a simple card swap. For example, replacing a faulted 1769-L30ER requires a full power-down and unit change.

Expansion Bottleneck: Futureproofing is limited. Adding significant I/O, safety functions, or a new network protocol frequently exceeds the headroom of a compact controller. The upgrade path forces a complete controller replacement, including mandatory reprogramming and extensive rewiring.

Accelerated Lifecycle Churn: Compact product lines are often refreshed quickly by manufacturers. This shorter lifespan makes finding specific spare parts difficult after obsolescence, forcing system migrations much sooner than planned.

Modular Systems Minimize Downtime and Maintenance Risk

Modular PLCs are purpose-built for facilities where uptime is critical. According to a recent MarketsandMarkets report, reducing unplanned downtime remains the top priority for manufacturers deploying control systems. Modular systems directly address this by enabling selective replacement. When a power supply, communication adapter, or analog card fails, maintenance teams replace only that specific component. The chassis, wiring, and CPU remain active, which significantly compresses Mean Time to Repair (MTTR).

Scalable by Design: A modular architecture allows incremental growth. Operators can add or change comms cards—for example, switching from PROFINET to EtherNet/IP—or double I/O capacity simply by populating more empty rack slots. This makes system evolution a scheduled, minor task rather than an episodic crisis.

Extended Product Stability: High-end modular platforms—such as the Allen-Bradley ControlLogix family—benefit from much longer product lifecycles and a deeper ecosystem of spare parts. This stability allows for proactive maintenance planning over a 10-to-15-year horizon.

Key Technical Trade-Offs for Lifecycle Cost

Choosing an architecture hinges on balancing the initial capital expenditure (CapEx) against the long-term operational expenditure (OpEx).

Author's Insight: The True Value of Modularity

Author: Ubest Automation

We often advise clients to look beyond the purchase order. For high-volume, continuous operations, such as automotive assembly or large food and beverage plants, downtime can cost upwards of ten thousand dollars per hour. In these environments, the slightly higher cost of a modular ControlLogix or S7-1500 system is an insurance policy. The ability to swap a failed 1756-IF16 analog card in minutes—instead of hours for a full controller—makes the modular system a more cost-effective choice over a decade. The rule is simple: Compact wins on CapEx; Modular wins on 10-year OpEx and uptime.

✅ Critical Architectural Considerations:

Downtime Math: Calculate the cost of an hour of downtime. If the cost is high, modular's speed of repair is essential.
Spare Strategy: Compact architecture requires stocking whole, expensive units. Modular requires stocking granular, failure-prone cards.
Roadmap: Modular platforms generally offer deeper, longer product support, simplifying long-term spare-parts management.

Featured Application Scenarios

OEM Machine (Compact Scenario): A skid builder creates identical pump/fan skids sold globally. A compact 1211C CPU offers a low-cost, repeatable solution. The service model is simple: ship a replacement unit to the field for a quick swap-and-reload.

Plant-Wide Line (Modular Scenario): A 24/6 packaging line uses a ControlLogix CPU 1756-L71. Tight Overall Equipment Effectiveness (OEE) targets are met because maintenance can replace a faulty discrete I/O card in under five minutes, minimally impacting production. This architecture is also crucial for integrating new DCS components.

Frequently Asked Questions (FAQ)

Q: Does a compact PLC offer better system reliability than a modular one?
A: Not necessarily. Compact PLCs have fewer interconnecting parts (no backplane bus), which can technically mean fewer failure points. However, a failure in any single integrated component forces a full system replacement. Modular systems, while having more parts, isolate failures, ensuring the core CPU and other modules remain operational during a single-card failure.

Q: I am integrating an older VFD to my new PLC. Does the architecture choice matter for this?
A: Yes. Modular systems offer superior flexibility for integrating legacy or specialized devices. You can add a specific communication module (e.g., a serial ASCII card) to the rack without affecting the main Ethernet/IP network or the CPU. Many compact PLCs lack the physical or software support for highly specialized or legacy network protocols.

Q: What is the most important experience-based tip for a small manufacturer choosing their first PLC?
A: Focus on scalability and the programmer community. Your first system will likely expand faster than you anticipate. Choose a widely used architecture (like the S7-1200 or CompactLogix) not just for the hardware, but for the vast pool of programmers and online community resources. This reduces hiring friction and speeds up troubleshooting when you encounter a new issue.

We hope this analysis provides clarity on your next control system decision.
