1756-L65 Allen-Bradley ControlLogix Processor | 32MB Memory
UBEST – Сенімді Ғаламдық Автоматтандыру Бөліктерінің Жеткізушісі
Бізде қорда бар өнеркәсіптік автоматтандыру қосалқы бөлшектерінің кең таңдауы бар. Барлық өнімдерге 12 айлық кепілдік беріледі және сапа мәселелері бойынша 30 күндік қайтару ұсынылады.

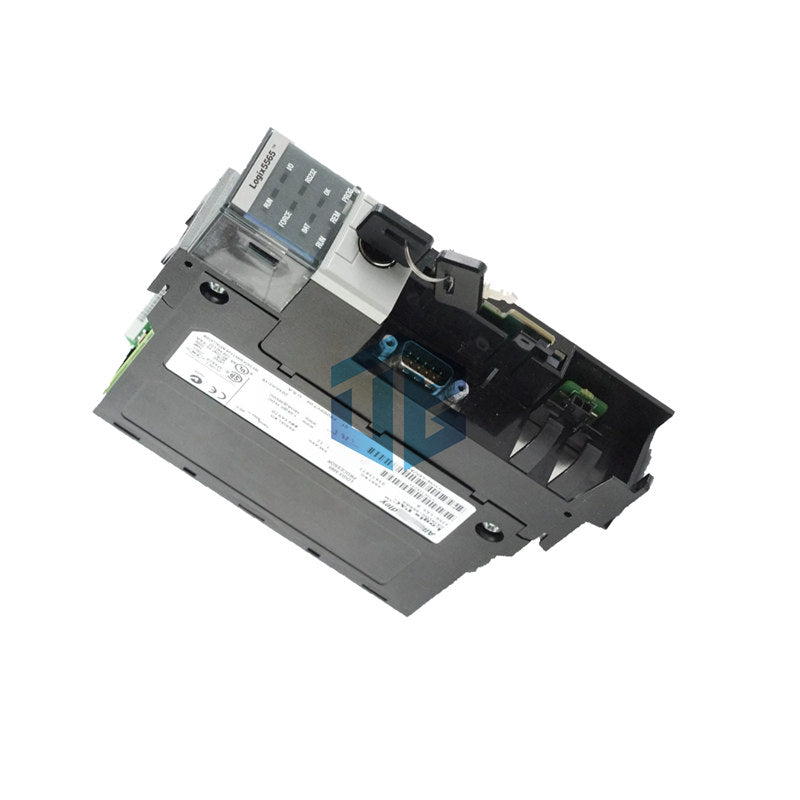

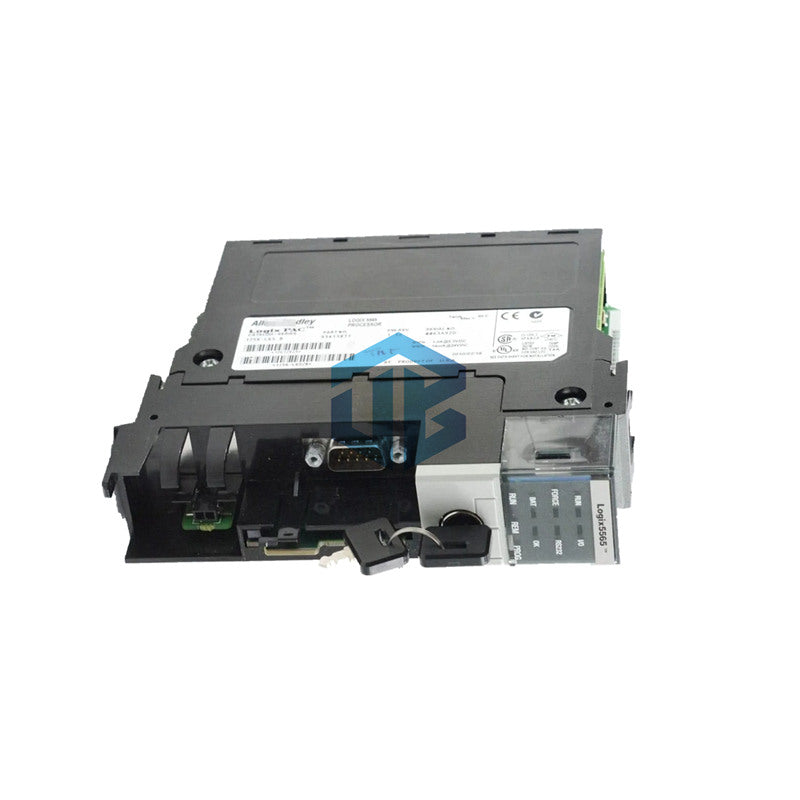

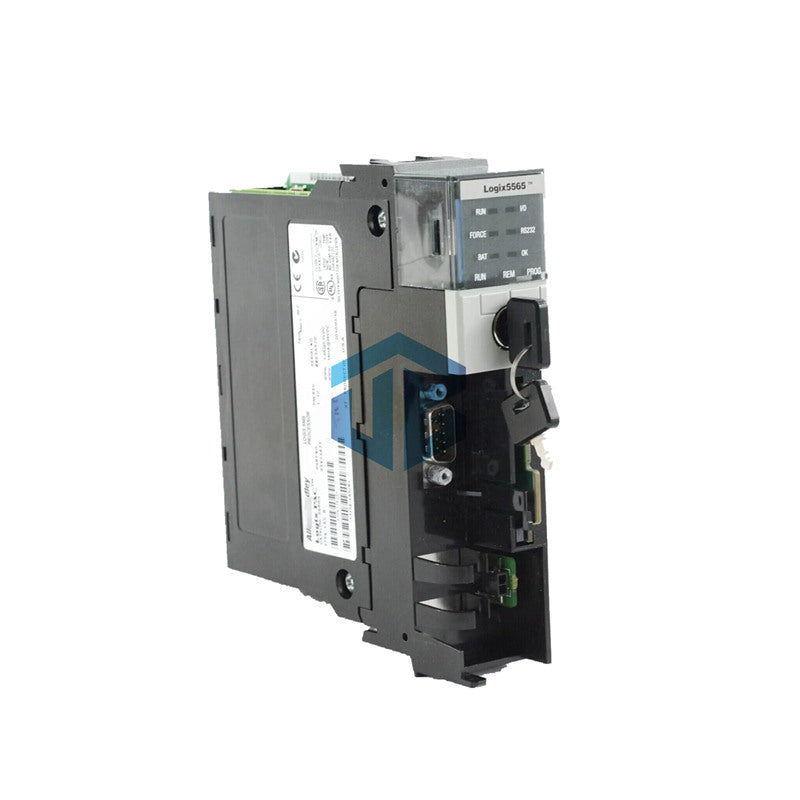

Allen-Bradley 1756-L65 ControlLogix Series B Processor
Discover the powerful Allen-Bradley 1756-L65 controller at Ubest Automation. This Series B ControlLogix module delivers top performance for large-scale automation. With 32 MB user memory and advanced communication options, the 1756-L65 handles complex control tasks with ease.
Key Features & Benefits
- Large Memory: 32 MB user memory for data and logic storage
- High Capacity: Supports up to 128,000 I/O points
- Flexible Communication: Built-in RS-232 port plus network options
- Expandable Storage: Optional 128 MB CompactFlash memory card
- Robust Design: Built for demanding industrial environments
Complete Technical Specifications
- Brand: Allen-Bradley
- Model: 1756-L65 Series B
- Series: ControlLogix
- Module Type: Processor Module
- User Memory: 32 MB
- I/O Memory: 478 KB
- Maximum I/O Capacity: 128,000 points
- Analog I/O: Up to 4,000 points
- Power Consumption: 3.5 Watts
- Current Draw: 1200 mA @ 5.1V DC, 14 mA @ 24V DC
- Isolation Voltage: 30V continuous
- Operating Temperature: 0°C to 60°C
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5% to 95% non-condensing
- Vibration Resistance: 2G @ 10-500 Hz
- Weight: 0.71 lbs (0.32 kg)
Installation & Compatibility
The 1756-L65 installs easily into compatible ControlLogix chassis including:
- 1756-A4, 1756-A7, 1756-A10
- 1756-A13, 1756-A17
Uses 1756-BA2 lithium battery for memory backup.
Communication Capabilities
- Serial Protocols: DF1, ASCII, Modbus, DH-485
- Network Options: EtherNet/IP, ControlNet, DeviceNet
- Additional Networks: Remote I/O, Data Highway Plus
- Maximum Connections: 250 controller connections
Warranty & Shipping Information
All orders include our 12-month quality warranty. We ship worldwide using reliable carriers: FedEx, UPS, and DHL for fast delivery.
Frequently Asked Questions
What is the memory configuration of the 1756-L65?
It has 32 MB user memory and 478 KB I/O memory, expandable with CompactFlash.
What battery does the 1756-L65 require?
It uses the 1756-BA2 lithium battery for memory backup.
What networks does this controller support?
It supports EtherNet/IP, ControlNet, DeviceNet, and multiple serial protocols.
What is the maximum I/O capacity?
It can handle up to 128,000 I/O points including 4,000 analog points.
What are the environmental specifications?
Operating temperature: 0°C to 60°C, humidity: 5% to 95% non-condensing.
Get complete technical details! Download the full specification sheet here.
