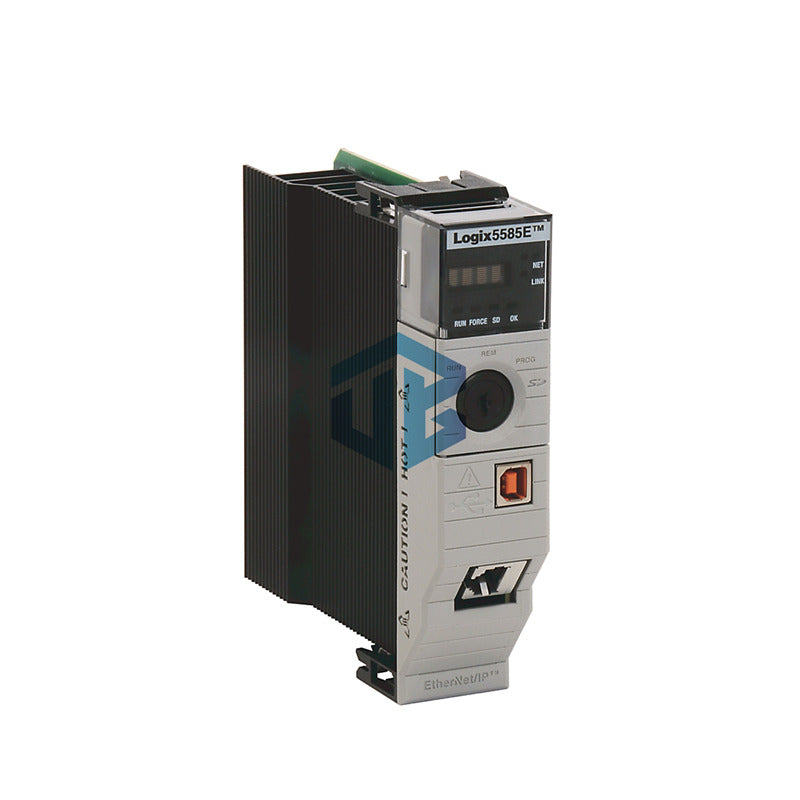

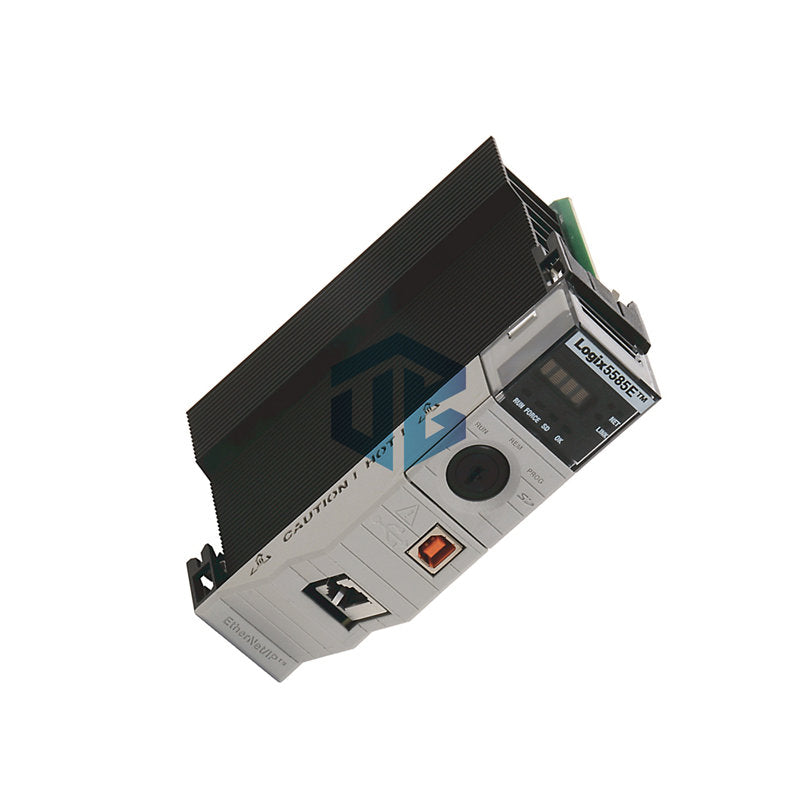

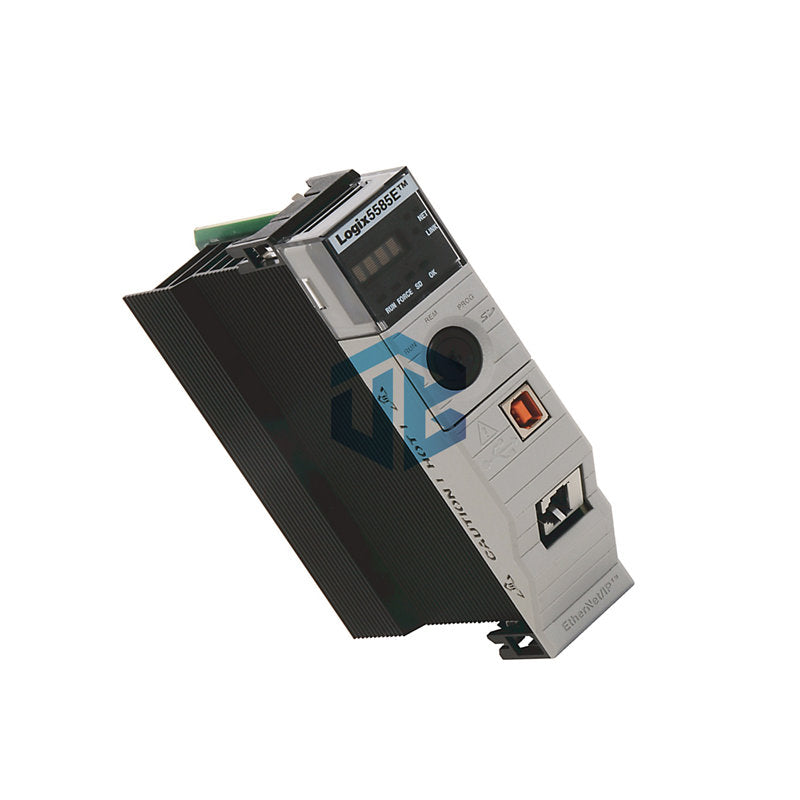

Allen-Bradley 1756-L82EP ControlLogix 5580 Processor Module

Experience high-performance automation with the Allen-Bradley 1756-L82EP controller. This advanced ControlLogix 5580 processor delivers 5MB user memory and gigabit Ethernet speeds. The 1756-L82EP supports up to 128,000 I/O points for large-scale applications.

Complete Specifications

• Brand: Allen-Bradley
• Model: 1756-L82EP
• Series: ControlLogix 5580
• Product Type: Processor Module
• User Memory: 5 Megabytes
• Ethernet Speed: 10/100/1000 Mbps
• USB Speed: 12 Mbps (Type B)
• Digital I/O Capacity: 128,000 points
• Analog I/O Capacity: 4,000 points
• Controller Tasks: 32 maximum
• Programs per Task: 1,000
• Power Dissipation: 6.2 Watts
• Thermal Dissipation: 21.2 BTU/hour
• Current Draw: 1.20A @ 5.1V DC, 5.0mA @ 1.2V DC
• Weight: 0.868 pounds (0.394 kg)
• Slot Requirement: Single slot

Network Compatibility

• EtherNet/IP
• ControlNet
• DeviceNet
• Remote I/O
• Data Highway Plus
• SynchLink

Programming Languages

• Ladder Logic
• Structured Text
• Function Block Diagram
• Sequential Function Chart

Quality Promise

Backed by 12-month product warranty. Fast worldwide delivery via FedEx, UPS, and DHL.

FAQ

What Ethernet speeds does it support?
It supports 10/100/1000 Mbps auto-negotiating Ethernet speeds.

How many I/O points can it handle?
It supports 128,000 digital I/O points and 4,000 analog I/O points.

What is the memory capacity?
5MB user memory for program and data storage.

Does it support motion control?
Yes, it features integrated motion control over Ethernet.

How many tasks can it run simultaneously?
It can handle 32 tasks with up to 1,000 programs per task.

Get full technical details: Download the complete specification sheet here.
