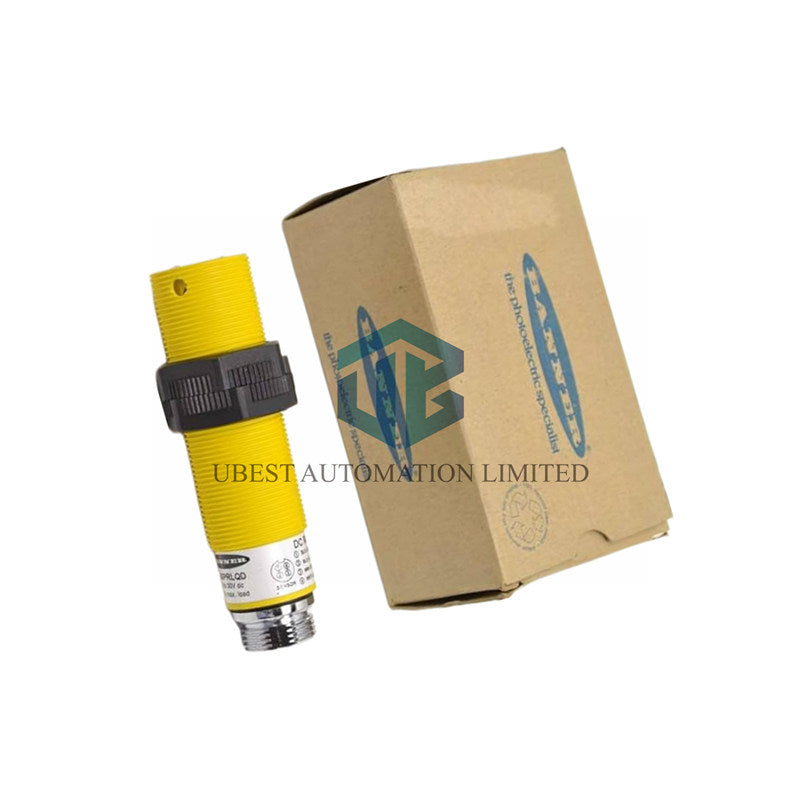

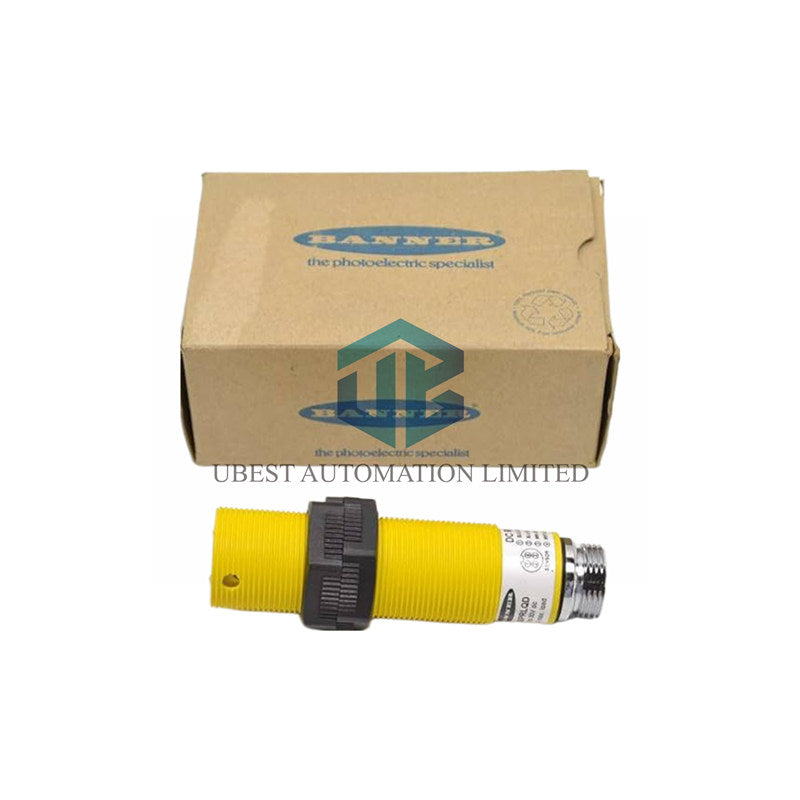

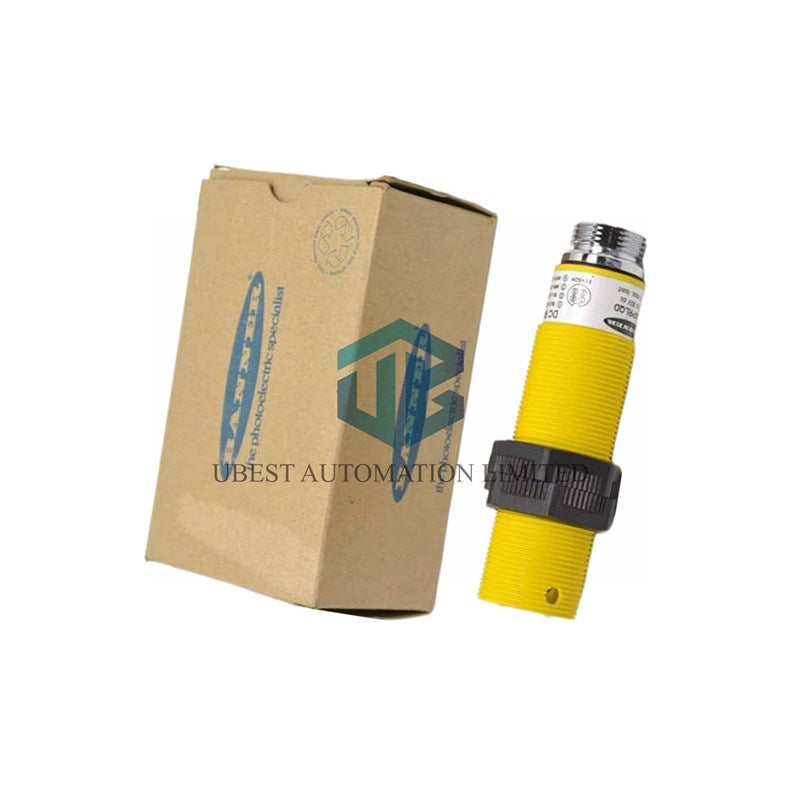

Banner SM30PRLQD Long-Range Photoelectric Receiver: Reliable Detection Up to 150 Meters

This robust photoelectric receiver from Banner Engineering delivers exceptional performance for long-range opposed mode sensing. Built with a durable thermoplastic barrel housing, it withstands harsh industrial environments with an IP67 and NEMA 4X rating. The device features a versatile 10-30V DC supply and a bipolar (NPN & PNP) output for easy integration into any control system. Its integral quick-disconnect (QD) allows for fast and simple installation and maintenance.

Key Features & Benefits

• Superior 150m Range: Detect objects over very long distances.
• Dual NPN/PNP Output: Connects seamlessly with both sinking and sourcing PLC inputs.
• Rugged IP67 & NEMA 4X Enclosure: Protects against dust, water, and corrosive environments.
• Integral Quick-Disconnect: Saves time on installation and replacement.
• Wide Operating Temperature: Reliable performance from -40°C to 70°C.

Technical Data

• Brand & Model: Banner Engineering, SM30PRLQD (Full Suffix: SM30PRLQD)
• Sensing Range: 150,000 mm (150 m)
• Supply Voltage: 10-30 V DC
• Output Type: Bipolar (NPN & PNP) Discrete
• Response Time: 10 ms
• Operation Mode: Receiver for Opposed (Beam Break) Sensing
• Housing & Protection: 30mm Barrel, IP67, NEMA 4X
• Connection: Integral 7/8" Mini Quick-Disconnect
• Operating Temperature: -40°C to +70°C

Installation Guide

Mount the 30mm barrel sensor using two locknuts for secure positioning. Align the receiver precisely with its paired emitter for optimal performance. Connect the wiring via the 4-pin, 7/8" mini quick-disconnect cable. Ensure the power supply is within the 10-30V DC range.

Compatibility

This receiver is designed to work with compatible Banner SM30 series emitters in an opposed (through-beam) setup. The bipolar output makes it compatible with a vast range of PLCs and controllers without worrying about NPN or PNP input type.

Certification & Quality

This product is manufactured to high-quality standards and is UL certified. The NEMA 4X rating confirms its suitability for indoor and outdoor use in tough conditions.

Packaging & Warranty

• Package Includes: 1x SM30PRLQD Receiver Unit.
• Warranty: Backed by a 12-month manufacturer's warranty.
• Shipping: We ship globally via FedEx, UPS, and DHL.
