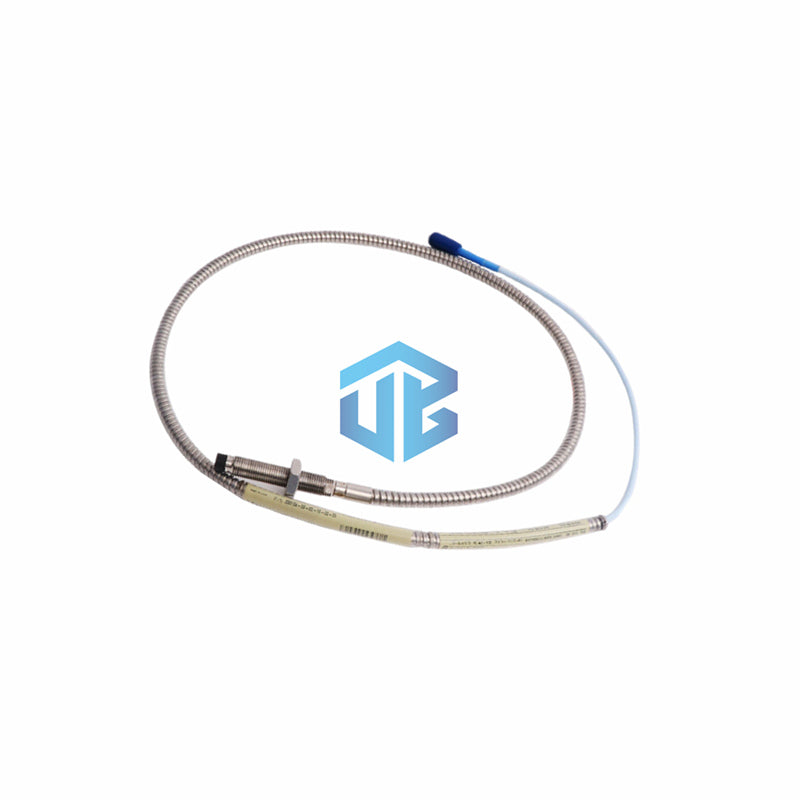

Bently Nevada 330104-00-12-50-02-05 | 3300 XL Metric Probe
Manufacturer:
Bently Nevada
Product No.:
330104-00-12-50-02-05
Condition:
In Stock
Product Type:
3300 XL 8 mm Probe
Product Origin:
USA
Weight:
500g
Shipping port:
Xiamen
Warranty:
12 months
UBEST – Сенімді Ғаламдық Автоматтандыру Бөліктерінің Жеткізушісі
Бізде қорда бар өнеркәсіптік автоматтандыру қосалқы бөлшектерінің кең таңдауы бар. Барлық өнімдерге 12 айлық кепілдік беріледі және сапа мәселелері бойынша 30 күндік қайтару ұсынылады.
Bently Nevada 330104 8mm Proximity Probe: High-Precision Vibration Sensing

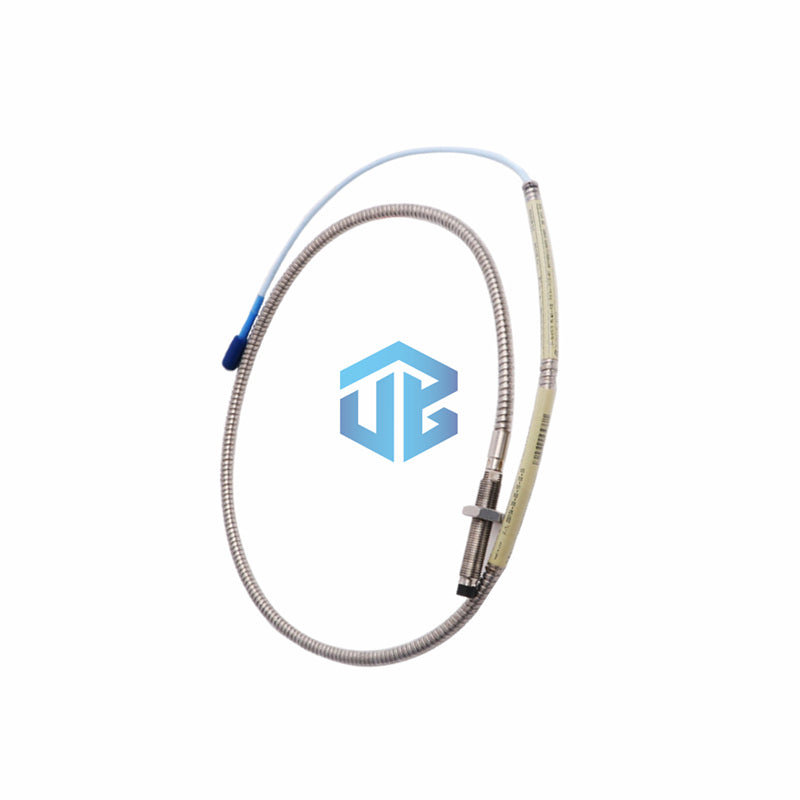

The 330104-00-12-50-02-05 is an 8mm 3300 XL proximity probe from Bently Nevada. It offers reliable vibration and position measurement for industrial machinery. This metric probe features a robust stainless steel case and an extended 5-meter integrated cable.
Key Technical Specifications
- Measurement Range: Linear range from 0.25 mm to 2.3 mm (10 to 90 mils)
- Recommended Gap Setting: -9 Vdc, approximately 1.27 mm (50 mils)
- Sensitivity: Standard 200 mV/mil (7.87 V/mm)
- Frequency Response: 0 to 10 kHz, dependent on cable length
- DC Probe Resistance: 8.73 Ω ± 0.50 Ω for 5.0m length
- Operating Temperature: -52°C to +177°C (-62°F to +350°F)
- Probe Tip Material: Polyphenylene sulfide (PPS), highly durable
- Case Material: AISI 303/304 stainless steel, corrosion-resistant
- Connector Type: Miniature coaxial ClickLoc, secure connection
- Cable Length: 5.0 meters (16.4 feet), integrated into probe
Installation Guidelines
- Use M10x1 thread for mounting with max 15 mm engagement
- Set the gap to achieve -9 Vdc output for optimal sensitivity
- Employ shielded triad cable (0.2–1.5 mm²) for field wiring
- Avoid bending the cable sharply near the probe body
- Ensure the target material is ferrous and properly sized

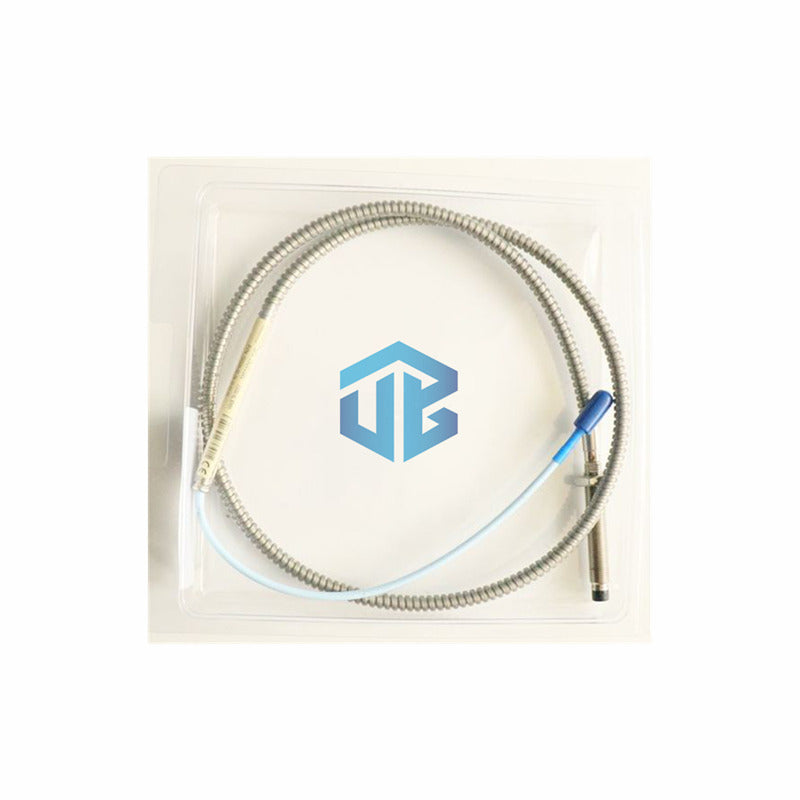

Packaging Includes
- One 3300 XL 8 mm Proximity Probe
- Miniature ClickLoc connector pre-attached
- 5-meter factory-integrated coaxial cable
- Documentation sheet with calibration data
Compare With Similar Models
- 330104-00-07-10-02-05: Shorter 1.0m cable, same thread
- 330104-06-14-05-02-05: Different length and threading options
