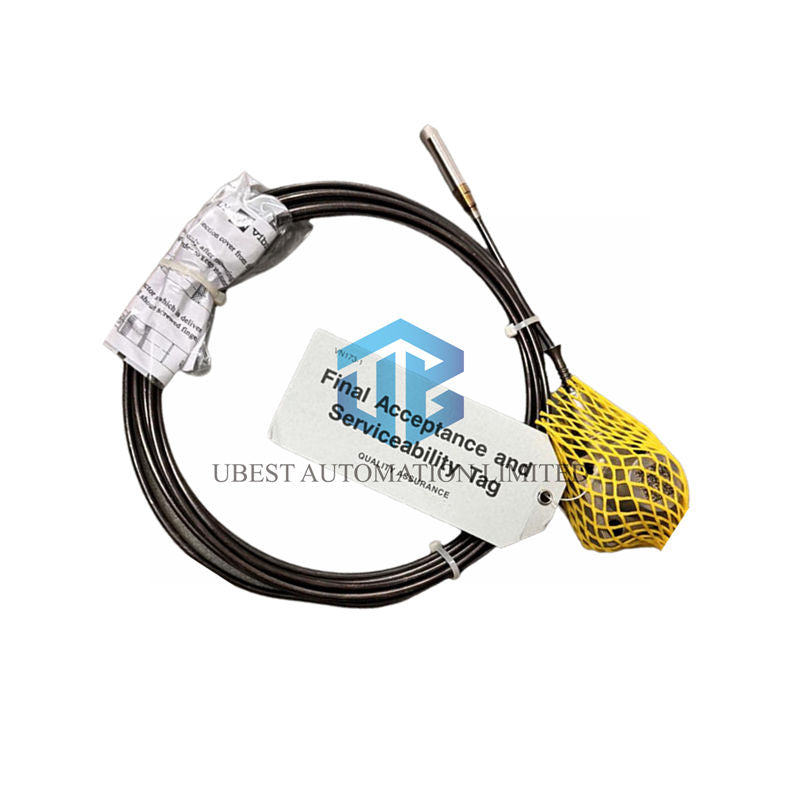

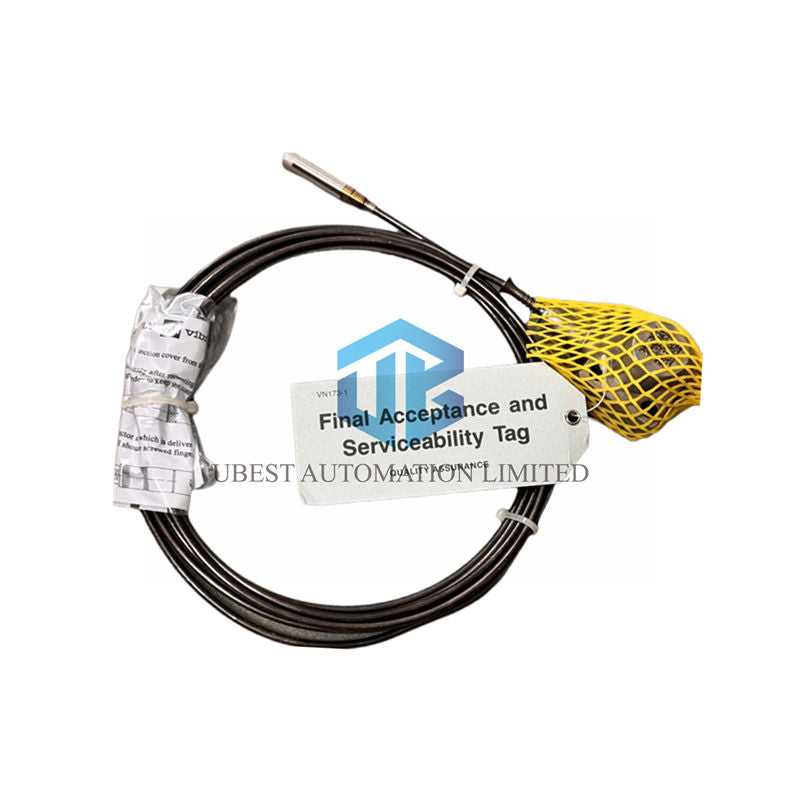

Vibro Meter CA901 High-Temp Accelerometer
Get reliable vibration monitoring in extreme conditions with the Vibro Meter CA901. This robust sensor handles temperatures from -196°C to +700°C and works in explosive areas.
- Perfect for harsh environments - nuclear plants, industrial machinery
- No power needed - simple charge output
- Explosion-proof certified - safe for dangerous areas
- Radiation resistant - keeps working in tough conditions
Product Details
Brand: Vibro Meter
Model: CA901 144-901-000-222
Cable Length: 12.5 meters
Connector Type: Lemo
Performance Specifications
Measurement Range: 0.001g to 200g
Frequency Response: 3Hz to 2800Hz (±5%)
Sensitivity: 10pC/g ±5% at 120Hz
Resonant Frequency: >17kHz
Shock Resistance: 500g peak
Pressure Rating: 140bar at 23°C
Housing Material: Inconel 600
Environmental Ratings
Standard Temperature: -54°C to +650°C
Maximum Temperature: -196°C to +700°C
Gamma Radiation: 10¹¹ erg/g (no effect)
Neutron Radiation: 10¹⁸ n/cm² (no effect)
Installation
Mount with 4 M6 Allen screws using 15 Nm torque. The Vibro Meter CA901 has welded construction for maximum protection.
Compatibility
Works with charge converters and most vibration monitors. Ideal for loose part detection and machinery protection.
Quality Assurance
Meets NRC 1.133, IEEE 323-1974, and DIN 25.475.1 standards. Certified for explosive atmospheres.
What You Get
• Vibro Meter CA901 Accelerometer
• 12.5 meter cable with Lemo connector
• Mounting hardware
• Technical documents
Support & Shipping
12-month product warranty
Fast delivery via FedEx, UPS, DHL
Global shipping available
Frequently Asked Questions
What cable length comes with this model?
This version includes a 12.5 meter cable with Lemo connector.
Can I use this sensor in nuclear applications?
Yes, it meets nuclear standards including NRC 1.133 and is radiation resistant.
What is the maximum shock it can handle?
It withstands 500g peak shock along the measuring axis.
Does it work with standard vibration monitors?
Yes, it works with any system that accepts charge input signals.
What pressure can it handle?
Rated for 140 bar at room temperature and 80 bar at 300°C.
