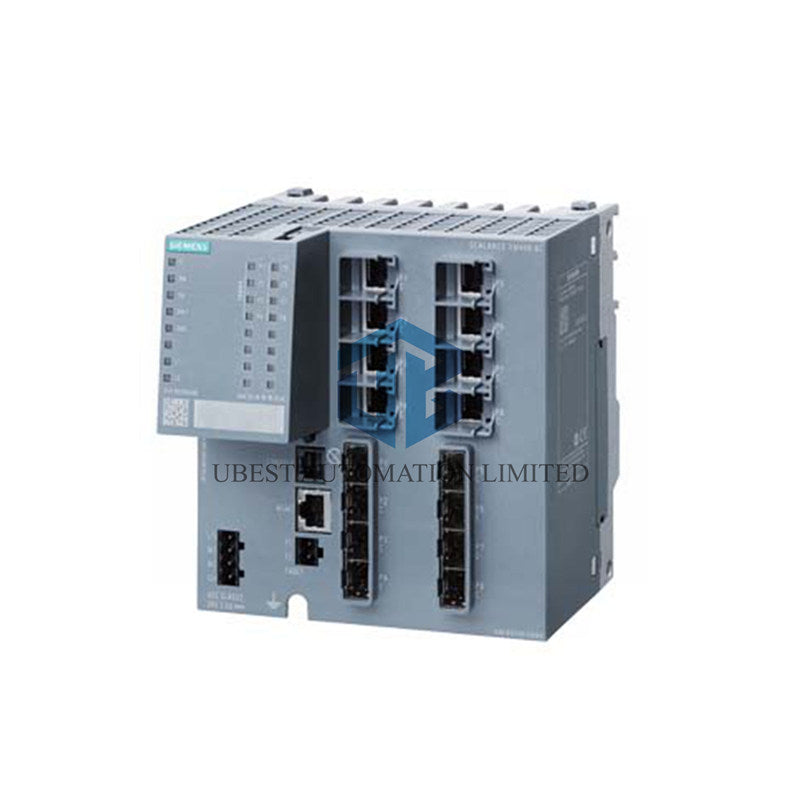

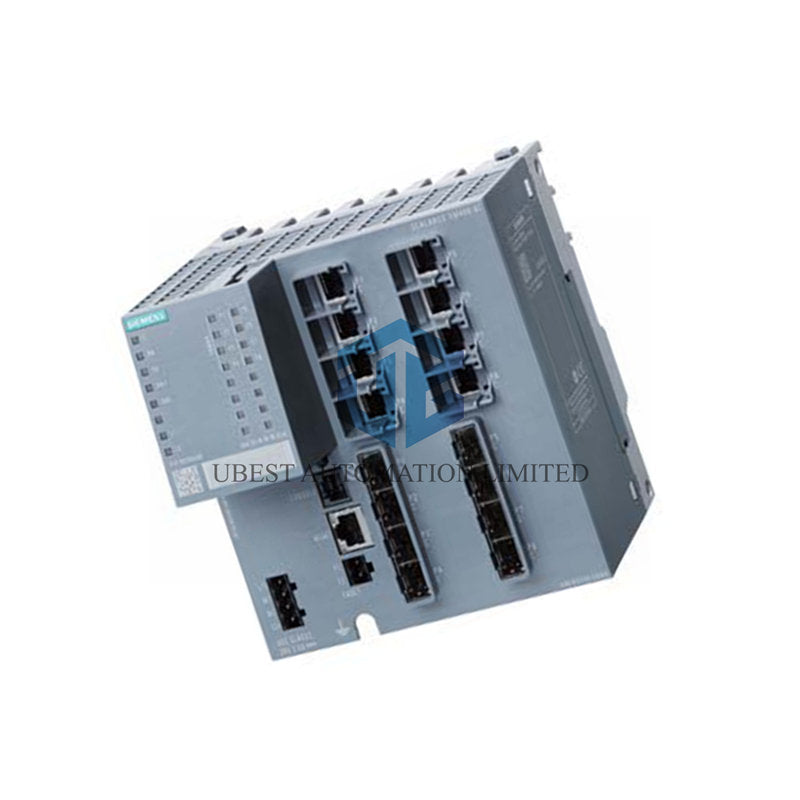

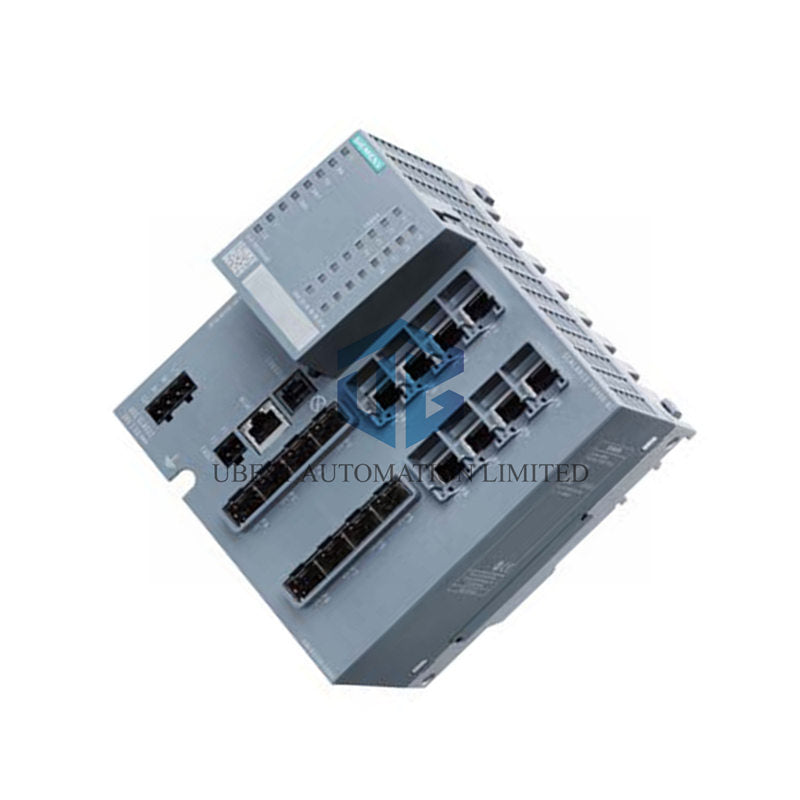

SCALANCE XM408-8C Industrial Ethernet Switch - Extreme Environment Ready
- Managed modular industrial switch with 8 combo ports
- Expandable to 24 ports electrical or optical
- Operates in -40°C to +70°C temperatures
- Perfect for harsh industrial environments
Product Overview
The SCALANCE XM408-8C is a robust managed industrial Ethernet switch designed for demanding applications. This SCALANCE XM408-8C model features 8 combo ports supporting both RJ45 and SFP connections, with expansion capabilities up to 24 ports. Built to withstand extreme conditions.
Key Specifications
| Brand: | Siemens |
| Model: | 6GK5408-8GR00-2AM2 |
| Series: | SCALANCE XM400 |
| Base Ports: | 8 combo ports (RJ45/SFP) |
| Max Ports: | 24 ports |
| Data Rates: | 10/100/1000 Mbps |
| Power Supply: | 24V DC (19.2-28.8V) |
| Power Consumption: | 48W typical |
| Operating Temperature: | -40°C to +70°C |
| Protection Class: | IP20 |
| Dimensions: | 140 x 147 x 125 mm |
| Weight: | 1.15 kg |
Advanced Features
- Layer 3 routing capability
- Redundancy protocols: MRP, RSTP, HRP
- VLAN support up to 255 VLANs
- Security features: SSH, SSL, 802.1x
- PROFINET IO device compatibility
- C-PLUG configuration storage included
Installation & Mounting
Easy installation on 35mm DIN rail, S7-300 rail, or S7-1500 rail. Uses standard 4-pole terminal block for power connection. Supports redundant power supply for critical applications.
Network Management
- Web-based management interface
- CLI for advanced configuration
- SNMP v1/v2/v3 support
- Port mirroring and diagnostics
- STEP 7 configuration integration
Certifications & Compliance
- CE Marking
- RoHS Compliant
- UL Certified
- FM Approved for hazardous locations
- Multiple marine classifications
Package Contents
- SCALANCE XM408-8C Switch Unit
- C-PLUG configuration module
- Documentation set
- 12-month warranty
Shipping Options
We ship worldwide using FedEx, UPS, and DHL express services. Most orders ship within 24 hours.
Frequently Asked Questions
What is the maximum number of devices I can connect?
You can expand the SCALANCE XM408-8C to support up to 24 devices using additional extender modules.
Can this switch operate in outdoor conditions?
While rated for extreme temperatures, it should be installed in protected enclosures for outdoor use due to IP20 rating.
How does the redundancy feature work?
The switch supports multiple redundancy protocols including MRP with recovery times under 0.3 seconds for network reliability.
Is special software needed for configuration?
You can configure using web browser, command line interface, or Siemens STEP 7 software for integrated automation projects.
What type of SFP modules are compatible?
The SCALANCE XM408-8C works with standard 100Mbps and 1000Mbps SFP transceivers for both multimode and single mode fiber.
