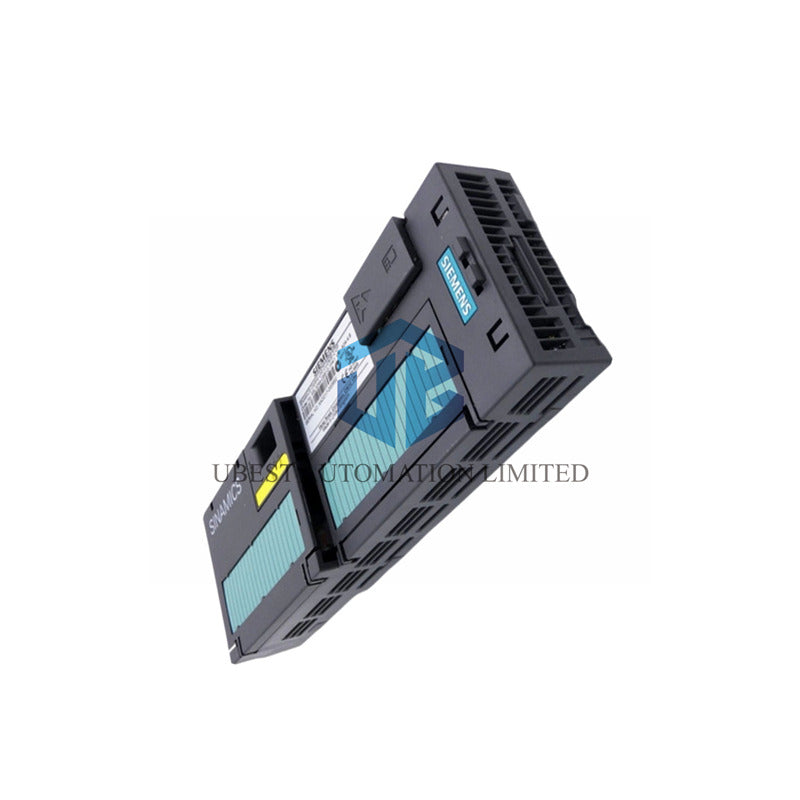

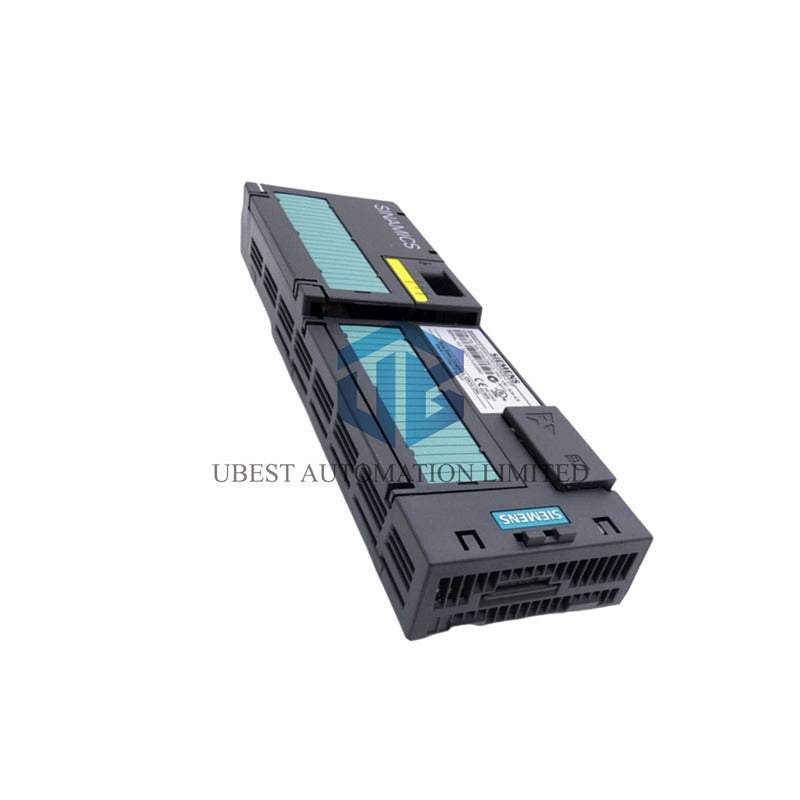

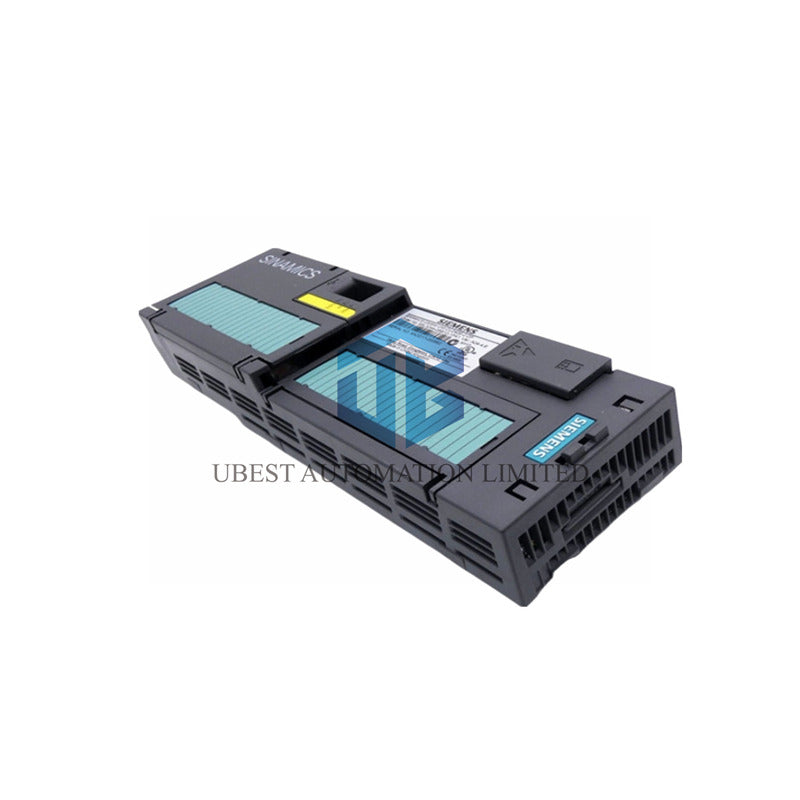

6SL3244-0BB13-1PA1 Siemens SINAMICS - Safety Control Unit
UBEST – Pembekal Alat Ganti Automasi Global yang Dipercayai
Kami menawarkan pelbagai alat ganti automasi industri yang tersedia dalam stok. Semua produk datang dengan jaminan 12 bulan dan pemulangan wang dalam 30 hari untuk isu kualiti.
SINAMICS G120 CU240E-2 DP-F Control Unit - Safety Integrated Version
- Advanced safety features including STO, SS1, SLS, SSM, SDI
- PROFIBUS DP-F communication for safe network integration
- Extended I/O capacity with 6 DI, 3 DQ, 2 AI, 2 AQ
- Built-in safety functions for machine protection
Product Description
The SINAMICS G120 CU240E-2 DP-F control unit offers comprehensive safety integration for demanding industrial applications. This advanced CU240E-2 DP-F model combines robust motor control with essential safety features, ensuring reliable operation in safety-critical environments.
Technical Specifications
| Brand: | Siemens |
| Model: | 6SL3244-0BB13-1PA1 |
| Product Line: | SINAMICS G120 |
| Control Unit Type: | CU240E-2 DP-F |
| Safety Functions: | STO, SS1, SLS, SSM, SDI |
| Communication: | PROFIBUS DP-F |
| Digital Inputs: | 6 DI (max. 3 F-DI) |
| Digital Outputs: | 3 DQ |
| Analog Inputs: | 2 AI |
| Analog Outputs: | 2 AQ |
| Sensor Interface: | PTC/KTY |
| Programming Interface: | USB, SD/MMC |
| Protection Class: | IP20 |
| Operating Temperature: | 0°C to +50°C |
| Dimensions: | 240 x 93 x 68 mm |
| Weight: | 0.49 kg |
| Power Supply: | 24V DC |
Safety Features
- Safe Torque Off (STO) for emergency stopping
- Safe Stop 1 (SS1) for controlled stopping
- Safely Limited Speed (SLS) for speed monitoring
- Safe Direction (SDI) for movement restriction
- Safe Speed Monitor (SSM) for speed safety
- PROFIsafe communication for network safety
Installation & Setup
Easy DIN rail mounting. Simple connection to power modules. Quick configuration via USB or memory card. Compatible with standard PROFIBUS DP-F networks.
Compliance & Certifications
- CE Certified
- RoHS Compliant
- REACH Compliant
- PROFIBUS DP-F Standard
- Safety Integrated Certified
Package Contents
- SINAMICS G120 CU240E-2 DP-F Control Unit
- Installation Documentation
- Safety Function Manual
- 12-month performance warranty
Shipping & Delivery
Fast global shipping via FedEx, UPS, DHL. Typically ships within 3 business days.
Frequently Asked Questions
What makes this control unit different from standard versions?
This CU240E-2 DP-F includes integrated safety functions that meet international safety standards for machine protection.
Can I upgrade an existing system with this safety control unit?
Yes, it's designed to replace standard control units while adding comprehensive safety capabilities to your drive system.
What safety certifications does this unit carry?
The control unit meets relevant safety standards including those for functional safety in industrial applications.
How many safety inputs are available?
You can configure up to 3 digital inputs as safety-rated F-DI for safety function triggering.
Is special training needed for programming safety functions?
Basic drive programming knowledge is sufficient, but safety function implementation may require understanding of safety standards.
