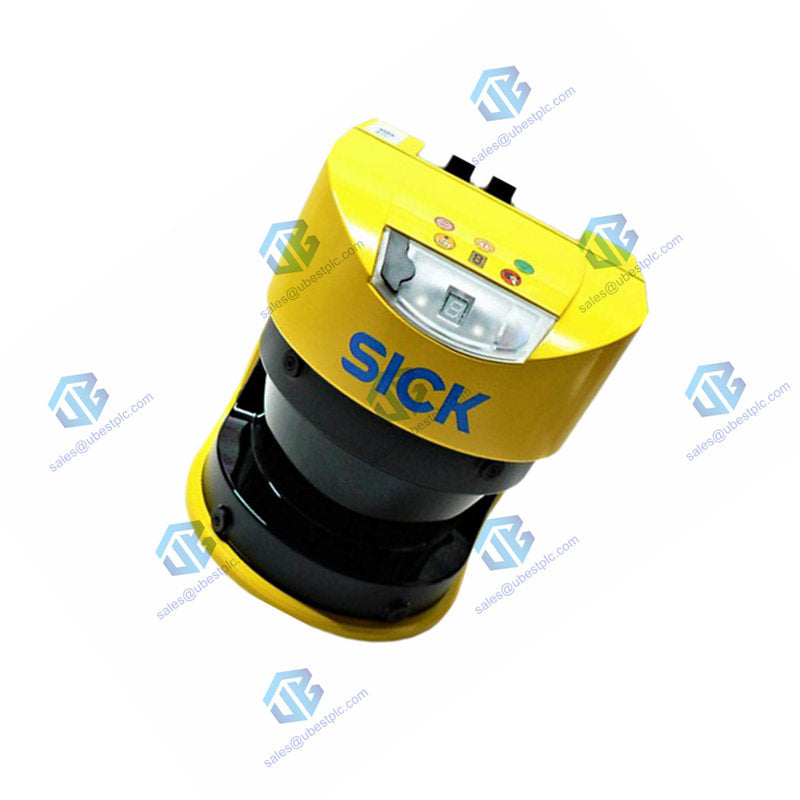

SICK S30A-4111DP Safety Laser Scanner | S3000 Series

The S30A-4111DP is an advanced safety laser scanner from SICK's S3000 family. It provides reliable area monitoring with PROFINET connectivity. This device helps protect personnel around automated machinery and robots.

Core Safety Specifications

• Model & Part: SICK S30A-4111DP (Alternative: 1045651).
• Safety Ratings: SIL2 per IEC 61508, PL d per EN ISO 13849.
• Protective Field: 4 meters immediate safety zone range.
• Warning Field: Extended 49 meters detection range.
• Scanning Angle: 190° wide area coverage.
• Response Time: Fast 60 ms reaction for safety signals.

Technical Performance Data

• Field Configuration: 8 field sets, 16 individual fields.
• Simultaneous Monitoring: 2 protective fields at same time.
• Monitoring Cases: Supports up to 16 cases.
• Distance Range: Measures up to 49 meters maximum.
• Resolution Options: Configurable from 30mm to 150mm.
• Multiple Sampling: Adjustable from 2 to 16 samples.
• Laser Class: Safe Class 1 laser product.

Communication & Interfaces

• Network Interface: PROFINET IO with 2-port switch.
• Data Rate: 100Base-TX Ethernet with auto-negotiation.
• Safety Protocol: PROFIsafe profile support.
• Configuration Port: RS-232 and TCP/UDP network interfaces.
• Cycle Times: Configurable from 4ms to 32ms.
• Topology Support: MRP client, SNMP, LLDP protocols.

Electrical & Environmental Specs

• Power Supply: 24V DC (16.8-28.8V range), Protection Class III.
• Enclosure Rating: IP65 for dust and water protection.
• Temperature Range: -10°C to +50°C operating.
• Dimensions: 155 x 185 x 160 mm (W x H x D).
• Weight: 3.3 kg robust construction.
• Mission Time: 20 years design life (EN ISO 13849).
• Failure Rate: PFHd 8.0 × 10⁻⁸ per hour.

Advanced Functions & Diagnostics

• Field Switching: Static protective field switching capability.
• Memory: Integrated configuration memory.
• Measured Data: Yes, with data output function.
• Diagnostics: Comprehensive channel and system diagnostics.
• Cable Monitoring: Built-in cable diagnostics.
• Access Protection: Vertical hazardous area protection.

Packaging & Support

• Packaging: Includes scanner unit with necessary documentation.
• Shipping: Global delivery via FedEx, UPS, and DHL.
• Warranty: 12-month product warranty included.

Frequently Asked Questions

• What makes this different from basic safety scanners?

The S30A-4111DP offers PROFINET integration and monitors two fields simultaneously. It suits complex safety applications needing network connectivity.

• Can it connect directly to PLC systems?

Yes, with its PROFINET interface, it connects directly to compatible PLCs. This reduces wiring and simplifies system integration.

• What industries typically use this scanner?

It's ideal for automotive, packaging, and material handling. Applications include robot cell protection and automated guided vehicle safety.

• How many safety patterns can I store?

You can configure 8 field sets with 16 total fields. This allows multiple protection scenarios for different machine modes.

• Is special software needed for configuration?

Yes, use SICK's configuration software to set up field patterns and safety parameters via RS-232 or Ethernet.
