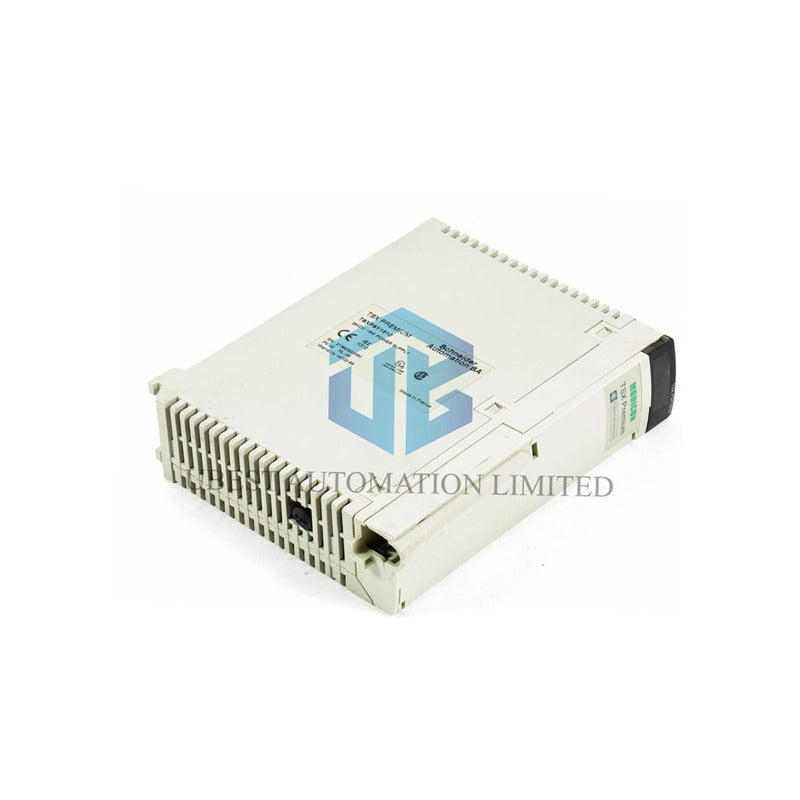

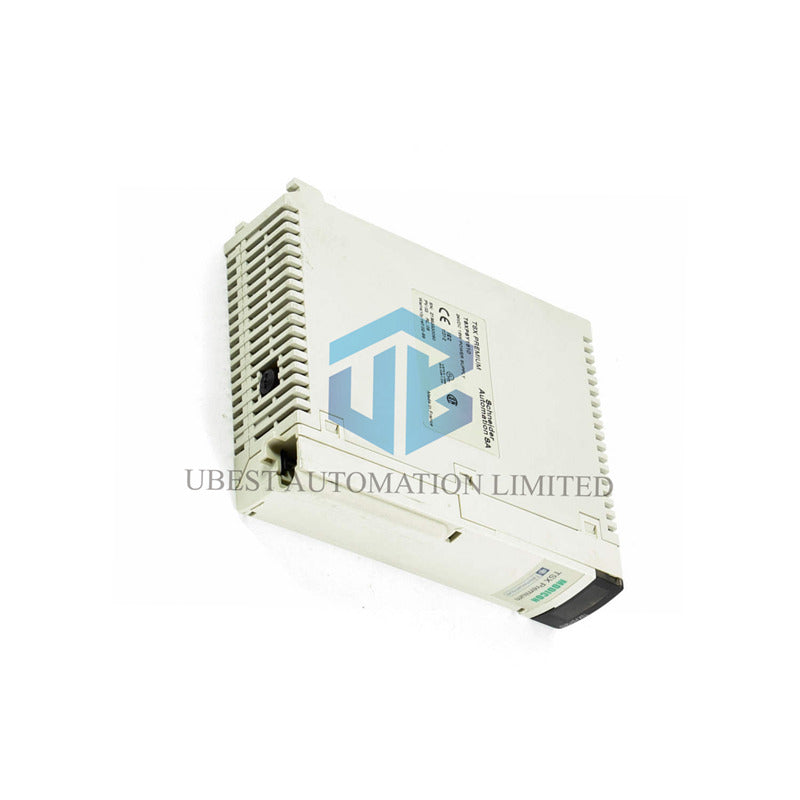

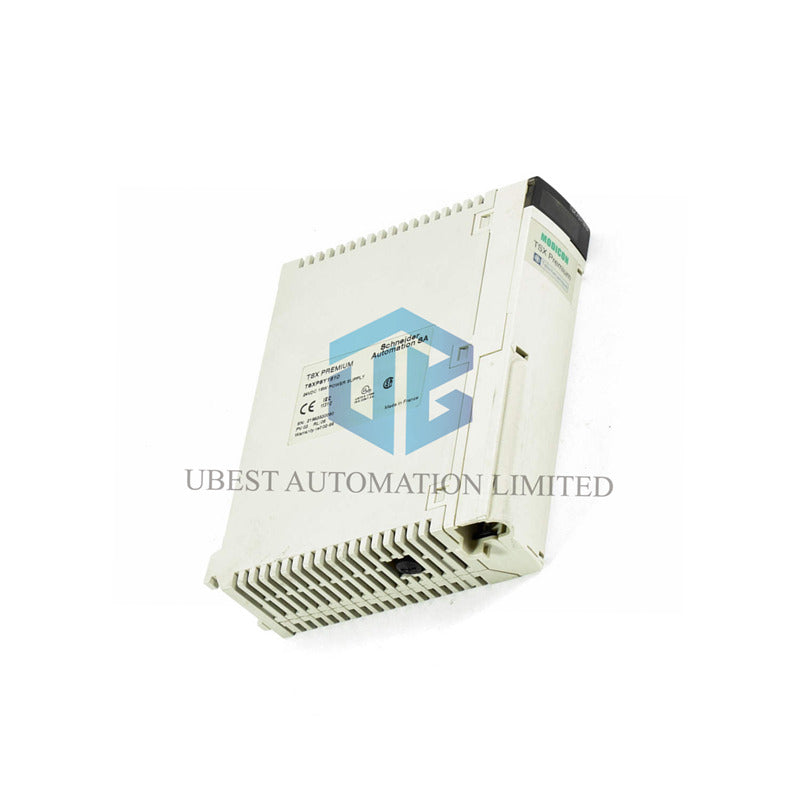

Schneider Electric TSXPSY1610M Power Supply Module
Reliable power for TSX Micro PLCs. The Schneider Electric TSXPSY1610M is a robust 30-watt power supply module. It provides stable 5V and 24V DC power to your PLC system and connected devices.
Complete Technical Specifications
Brand: Schneider Electric
Series: TSX Micro / Modicon Premium
Model: TSXPSY1610M
Module Type: Power Supply Module
Primary Input Voltage: 24 V DC (Range: 19.2 - 30 V)
Input Current: ≤ 1500 mA at 24V
Inrush Current: 100 A at 24V
Secondary Output 1: 5 V DC at 3 A (15 W)
Secondary Output 2: 24 V DC at 0.6 A (15 W)
Total Output Power: 30 W
Protection: Internal 3.5A Time-Delay Fuse, Overload, Overvoltage, Short-Circuit
Status Indicators: 1 Green LED (Voltage OK), 1 Red LED (Battery Fault)
Operating Temperature: 0°C to 60°C (32°F to 140°F)
Storage Temperature: -25°C to 70°C (-13°F to 158°F)
Operating Humidity: 10% to 95% (non-condensing)
Operating Altitude: Up to 2000 meters
Protection Rating: IP20, TC Treatment
Safety Standards: CE, cULus, CSA, IEC 61131-2, Marine Certifications (ABS, DNV, GL, etc.)
Expert FAQ
What PLC is this power supply for?
It is designed specifically for the Schneider Electric TSX Micro and Modicon Premium series programmable logic controllers (PLCs).
What are the two output voltages used for?
The 5V output powers the PLC's internal processor and memory. The 24V output powers external modules, relay coils, sensors, and other field devices.
Is it protected against power problems?
Yes. It has multiple protections: a fuse on the input, and automatic shutdown for output overloads, short circuits, or overvoltage conditions.
What does the red BAT LED mean?
The red Battery Fault LED lights up if there is a problem with the backup battery connected to the PLC's CPU, warning you about potential memory loss.
Can it handle a shaky power source?
Yes. Its wide input voltage range (19.2-30V DC) and high inrush current tolerance (100A) make it stable even with fluctuating or noisy DC power.
Package & Warranty
Package Includes: One new TSXPSY1610M Power Supply Module.
Warranty: Comes with a full 12-month replacement warranty.
