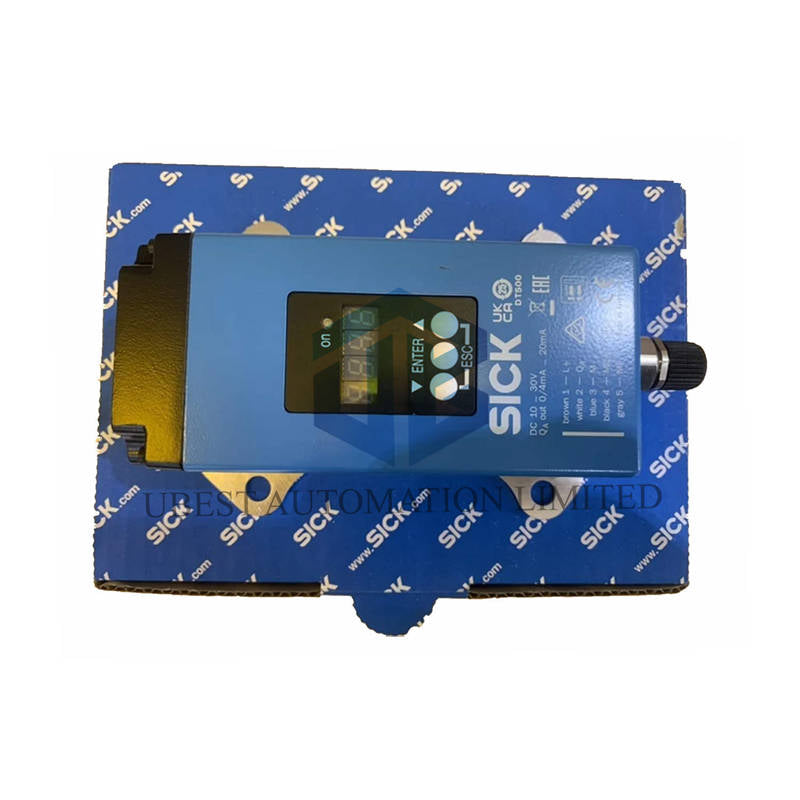

SICK DT500-A311 Dx500 Laser Distance Sensor
Measure far and fast with high accuracy. This long-range sensor is perfect for tough jobs. It uses a safe, visible red laser. Works well indoors and outdoors.
Quick Facts You Need to Know
- Covers distances from 0.2m up to 7m.
- Very consistent with ±3mm accuracy.
- Works with a common 10-30V DC power supply.
- Sends data through a simple 0-20mA signal.
- Strong metal body with an IP65 rating for dust and water protection.
- Works in cold and heat from -10°C to +45°C.
Full Technical Specifications
Brand & Model: SICK DT500-A311 | Dx500 Series
Measuring Range: 0.2 m to 7 m (on white surface)
Accuracy & Repeatability: ±3 mm / 1 mm
Laser Type: Visible Red, Class 2 Safe
Output Signal: 1 x Analog, 0 mA ... 20 mA configurable
Power Supply: 10-30 V DC
Connection: 5-pin M12 Connector
Operating Temperature: -10°C to +45°C (up to +75°C with cooling case)
Housing Protection: IP65, Metal (Aluminum)
Response Time: 150 ms
Easy Setup Guide
Mount the SICK DT500-A311 sensor securely. Connect the 5-pin M12 cable for power and signal. Use a 10-30V DC power source. The red laser dot helps you aim at the target.
What's in the Box & Support
You get one SICK DT500-A311 Dx500 distance sensor. We back it with a 12-month quality warranty. Fast shipping is available via FedEx, UPS, or DHL.
Frequently Asked Questions
What can I use this sensor for?
It's great for measuring the height of objects, checking fill levels in bins, or positioning things in factories.
How does it handle different colored surfaces?
It works best on light colors (90% remission). For dark surfaces (6% remission), start measuring from 0.8 meters.
Can I use it outside in bright sunlight?
Yes, it can resist ambient light up to 3000 lux, which is good for most outdoor and sunny indoor areas.
Is the laser safe for people?
Absolutely. It's a Class 2 laser, which is eye-safe under normal use conditions.
What if my environment gets very hot?
For temperatures up to 75°C, you will need to use the optional cooling case accessory.
